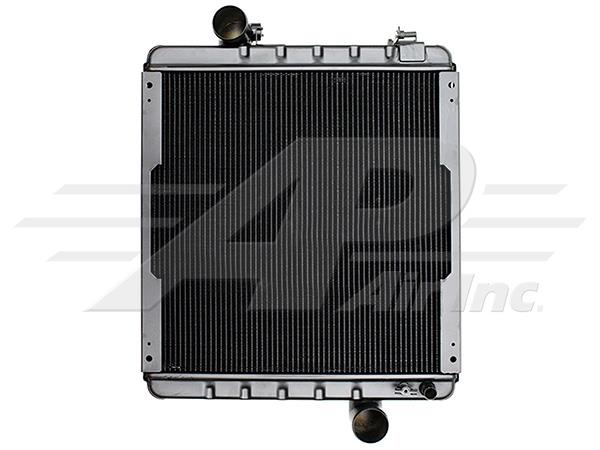

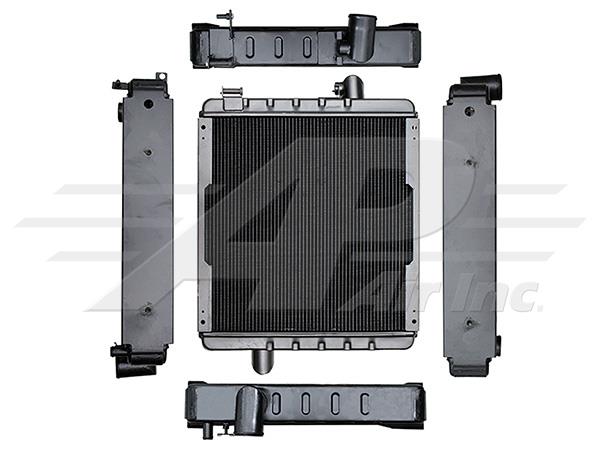

Plastic/Aluminum Radiator

Plastic/Aluminum Radiator

$604.29
$604.29
Sale Sold out
Shipping calculated at checkout.
View full details

Product information & specifications

OEM Part Numbers
John DeereAL110865, AL110996, AL110998, AL111629, AL115002, AL115003, AL115731, AL115732, AL115733, AL115857, AL116668, AL118774, AL37451, AL78001, AL78003, AL79036
Item Information
Can use Copper/Brass - AR5585 1" Port by Outlet Connection
Specifications
CORE HEIGHT 20 1/4"
CORE WIDTH 19 7/8"
CORE THICKNESS 2 15/16"
OVERALL HEIGHT 27 3/4"
OVERALL WIDTH 19 7/8"
OUTLET HOSE SIZE 2 3/8"
INLET HOSE SIZE 2 3/8"
FINS PER INCH 9
NUMBER OF ROWS 3
RADIATOR TYPE Plastic/Aluminum

Compatible With

View compatible models and fitment notes (51 models)
John Deere Tractor 6010 , 6010 Euro , 6100 Euro , 6110 , 6110 Euro , 6110L , 6200 , 6200 Euro , 6200L , 6205 EURO , 6210 , 6210 Euro , 6210L , 6300 , 6300 Euro , 6300L , 6310 , 6310 Euro , 6310L , 6310S , 6400 , 6400 Euro , 6400L , 6405 , 6410 , 6410 Euro , 6410L , 6410S , 6500 , 6500L , 6506 Euro , 6510 , 6510 Euro , 6510L , 6510S , 6600 Euro , 6605 , 6610 Euro , 6800 Euro , 6810 Euro , SE6010 Euro , SE6100 Euro , SE6110 Euro , SE6200 Euro , SE6210 Euro , SE6300 Euro , SE6310 Euro , SE6400 Euro , SE6410 Euro , SE6510 Euro , SE6610 Euro
All Serial Numbers
