• Copper/Brass Radiator - AR5585
1 1

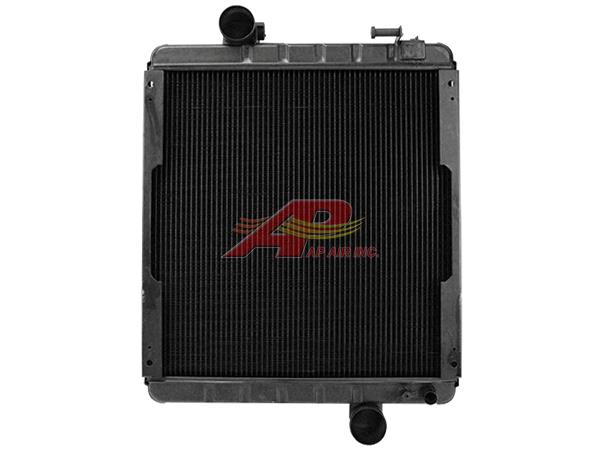

Copper/Brass Radiator

Copper/Brass Radiator

$785.57
$785.57
Sale Sold out
Shipping calculated at checkout.
View full details

Product information & specifications

OEM Part Numbers
John DeereAL110865, AL110996, AL110998, AL111629, AL115002, AL115003, AL115731, AL115732, AL115733, AL115857, AL116668, AL118774, AL37451, AL78001, AL78003, AL79036
Item Information
Does Not Include Surge Tank For Early Serial Number Tractors That Have Radiator without 7/8" Port on Tank, Must Order OE Radiator Hoses L111090 and L111275 or Plug the 7/8 Bypass Port Can use Plastic/Aluminum - AR5627 For Radiator Foam Seal Kit RF5585
Specifications
CORE HEIGHT 20 1/4"
CORE WIDTH 20"
CORE THICKNESS 2 1/2"
OVERALL HEIGHT 23 7/8"
OVERALL WIDTH 20 3/4"
OUTLET HOSE SIZE 2 3/8"
INLET HOSE SIZE 2 3/8"
FINS PER INCH 8
NUMBER OF ROWS 4
RADIATOR TYPE Copper/Brass Radiator - Replaces OE Plastic Tank/Aluminum Radiator

Compatible With

View compatible models and fitment notes (51 models)
John Deere Tractor 6010 , 6010 Euro , 6100 Euro , 6110 , 6110 Euro , 6110L , 6200 , 6200 Euro , 6200L , 6205 EURO , 6210 , 6210 Euro , 6210L , 6300 , 6300 Euro , 6300L , 6310 , 6310 Euro , 6310L , 6310S , 6400 , 6400 Euro , 6400L , 6405 , 6410 , 6410 Euro , 6410L , 6410S , 6500 , 6500L , 6506 Euro , 6510 , 6510 Euro , 6510L , 6510S , 6600 Euro , 6605 , 6610 Euro , 6800 Euro , 6810 Euro , SE6010 Euro , SE6100 Euro , SE6110 Euro , SE6200 Euro , SE6210 Euro , SE6300 Euro , SE6310 Euro , SE6400 Euro , SE6410 Euro , SE6510 Euro , SE6610 Euro
All Serial Numbers
