JCW Series Gasoline Belt Drive - JCW-4004-2MHB
JCW Series Gasoline Belt Drive - JCW-4004-2MHB
Couldn't load pickup availability
Product information & specifications

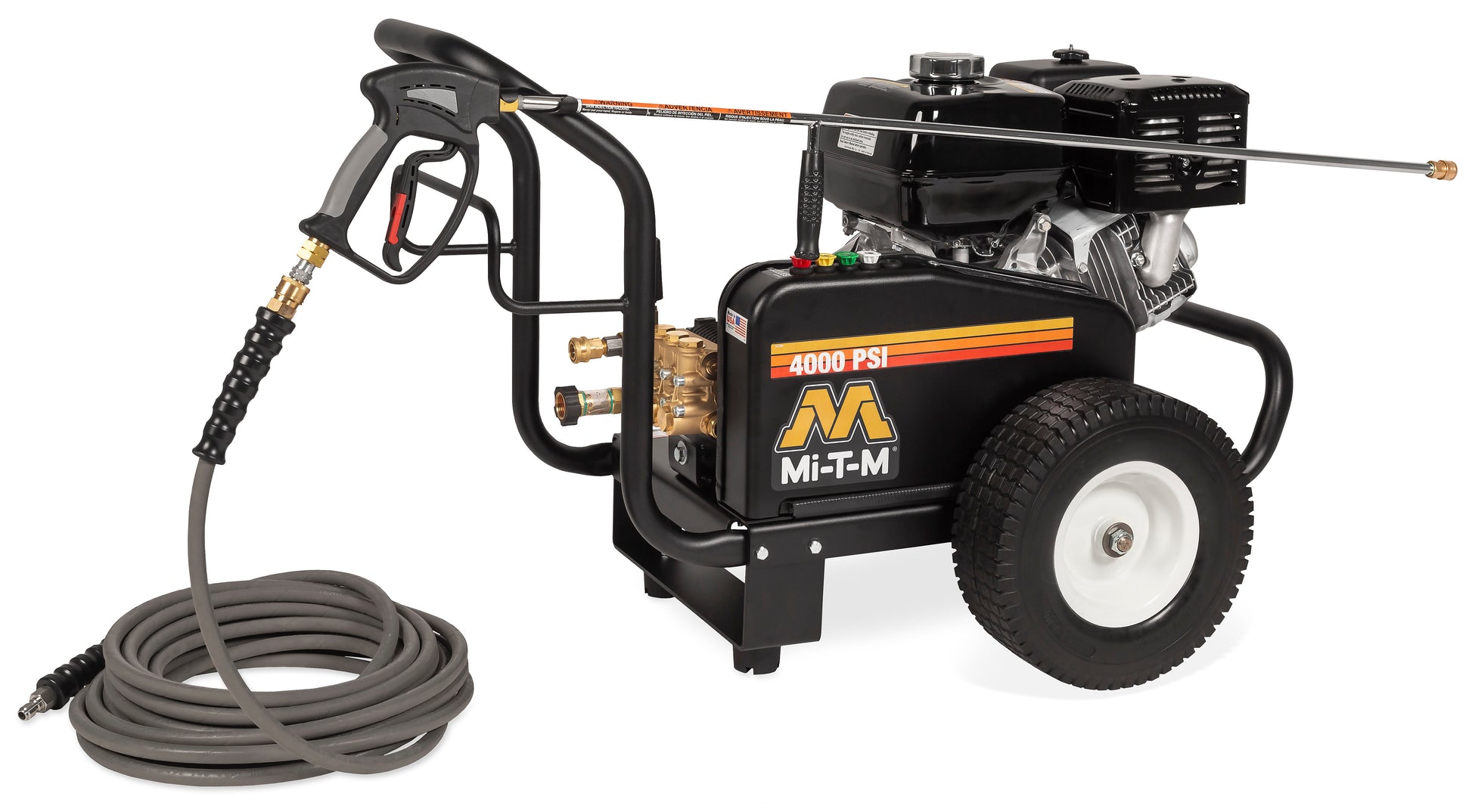

The Mi-T-M JCW-4004-2MHB is an industrial pressure washer model configured with 4000, 3.5, 389cc Honda GX390 OHV, 389cc Honda GX390 OHV+. This dealer listing combines model-specific specifications and manufacturer documentation.
This belt drive model is designed for industrial cleaning and is ideal for ag, construction and commercial jobsites.
Pump
Equipped with Mi-T-M Pressure Relief Start · Forged brass manifold · Thermal relief valve · Water filter with clear sleeve for screen inspection
Frame
Powder coated steel frame · Two-piece belt guard · 13-inch flat-free tires
Unit Includes
Quick connect nozzles - 0º, 15º, 25º and 40º · 50-foot x 3/8-inch non-marking hose · Insulated trigger gun
Note: All gasoline models sold in California are required to have a CARB compliant engine. Consult factory.
49 state engine. Not for sale in California.
Specifications
| PSI | 4000 |
|---|---|
| GPM | 3.5 |
| Displacement/ Engine | 389cc Honda GX390 OHV |
| Pump | AR |
| Unloader | Mi-T-M, Adjustable Pressure |
| Lance | 48 in. |
| Net Weight | 195.00 lbs. |
| Shipping Weight | 249.00 lbs. |
| Length | 39.50 in. |
| Width | 28.50 in. |
| Height | 26.00 in. |
| Displacement / Engine | 389cc Honda GX390 OHV+ |
| Dimensions (L x W x H) | 39.5x28.5x26in. |
Options
Options - must be ordered with unit and cannot be added later.
-
CX-0082 External Bypass System
Allows more water into the system to protect from heat build-up
-
CX-0085 External Bypass System
Allows more water into the system to protect from heat build-up
Resources
Limited warranties
| Unloader | 1 year |
|---|---|
| Engine | 3 years |
| Pump | 7 years |
Certifications
- ETL Certified - US
Sales and compliance notes
- Note: All gasoline models sold in California are required to have a CARB compliant engine. Consult factory.
- 49-state engine. Not for sale in California.
Manufacturer information: Mi-T-M
