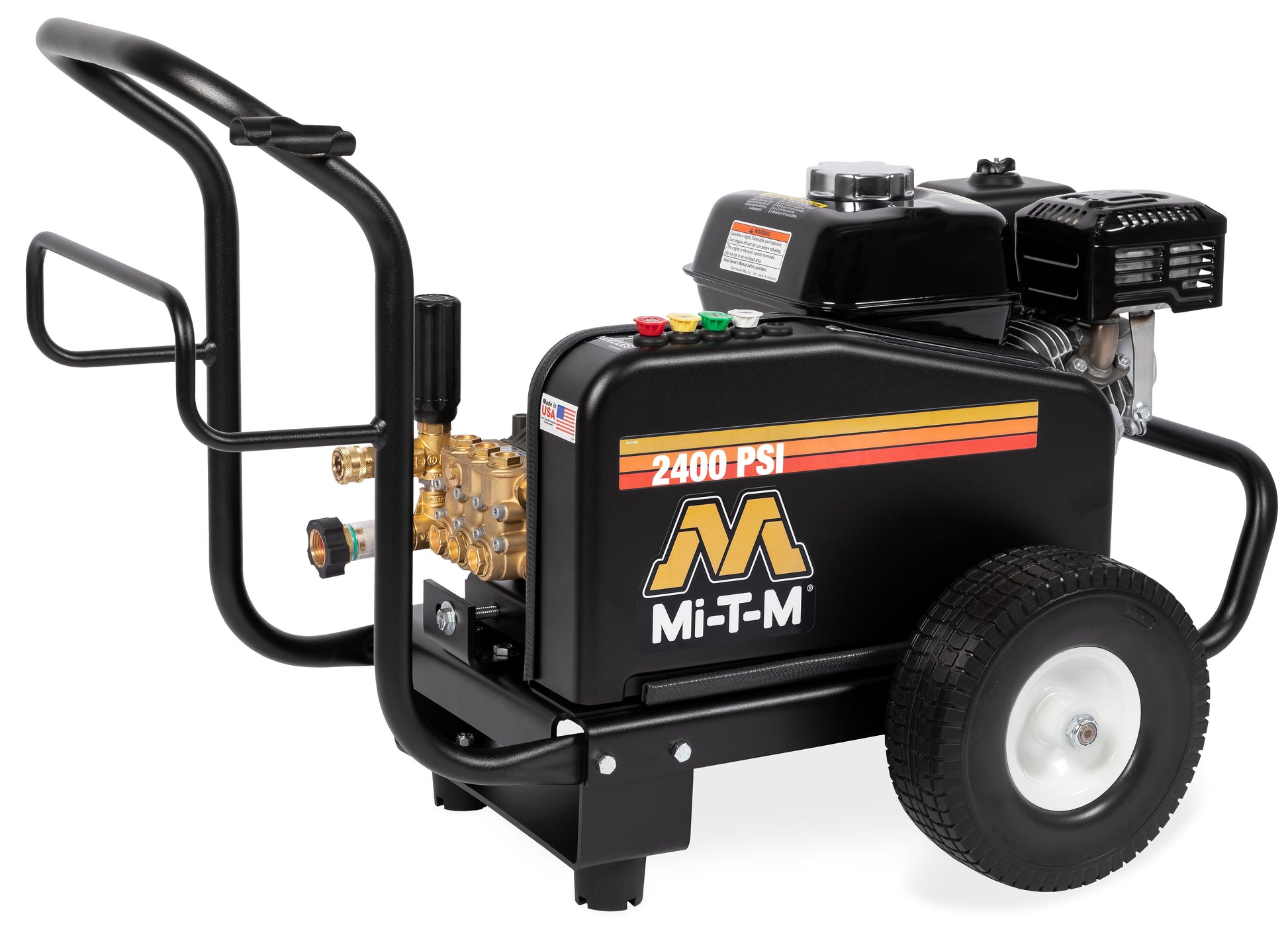

JCW Series Gasoline Belt Drive - JCW-2403-0MHB
JCW Series Gasoline Belt Drive - JCW-2403-0MHB
Couldn't load pickup availability
Product information & specifications
The Mi-T-M JCW-2403-0MHB is an industrial pressure washer model configured with 2400, 2.8, 196cc Honda GX200 OHV, 196cc Honda GX200 OHV+. This dealer listing combines model-specific specifications and manufacturer documentation.
This belt drive model is designed for industrial cleaning and is ideal for ag, construction and commercial jobsites.
Pump
Forged brass manifold · Thermal relief valve · Water filter with clear sleeve for screen inspection
Frame
Powder coated steel frame · Two-piece belt guard · 10-inch flat-free tires
Unit Includes
Quick connect nozzles - 0º, 15º, 25º and 40º · 50-foot x 3/8-inch non-marking hose · Insulated trigger gun
Note: All gasoline models sold in California are required to have a CARB compliant engine. Consult factory.
49 state engine. Not for sale in California.
Specifications
| PSI | 2400 |
|---|---|
| GPM | 2.8 |
| Displacement/ Engine | 196cc Honda GX200 OHV |
| Pump | AR |
| Unloader | Adjustable Pressure |
| Lance | 36 in. |
| Net Weight | 178.00 lbs. |
| Shipping Weight | 232.00 lbs. |
| Length | 39.50 in. |
| Width | 28.50 in. |
| Height | 26.00 in. |
| Displacement / Engine | 196cc Honda GX200 OHV+ |
| Dimensions (L x W x H) | 37.5x22x25in. |
Options
Options - must be ordered with unit and cannot be added later.
-
CX-0005 Insulated Dual Lance
Has both a high and low pressure top that allows you to switch to the low pressure chemical injector without having to change tips - 36-inch
Resources
Limited warranties
| Unloader | 1 year |
|---|---|
| Engine | 3 years |
| Pump | 7 years |
Certifications
- ETL Certified - US
Sales and compliance notes
- Note: All gasoline models sold in California are required to have a CARB compliant engine. Consult factory.
- 49-state engine. Not for sale in California.
Manufacturer information: Mi-T-M
