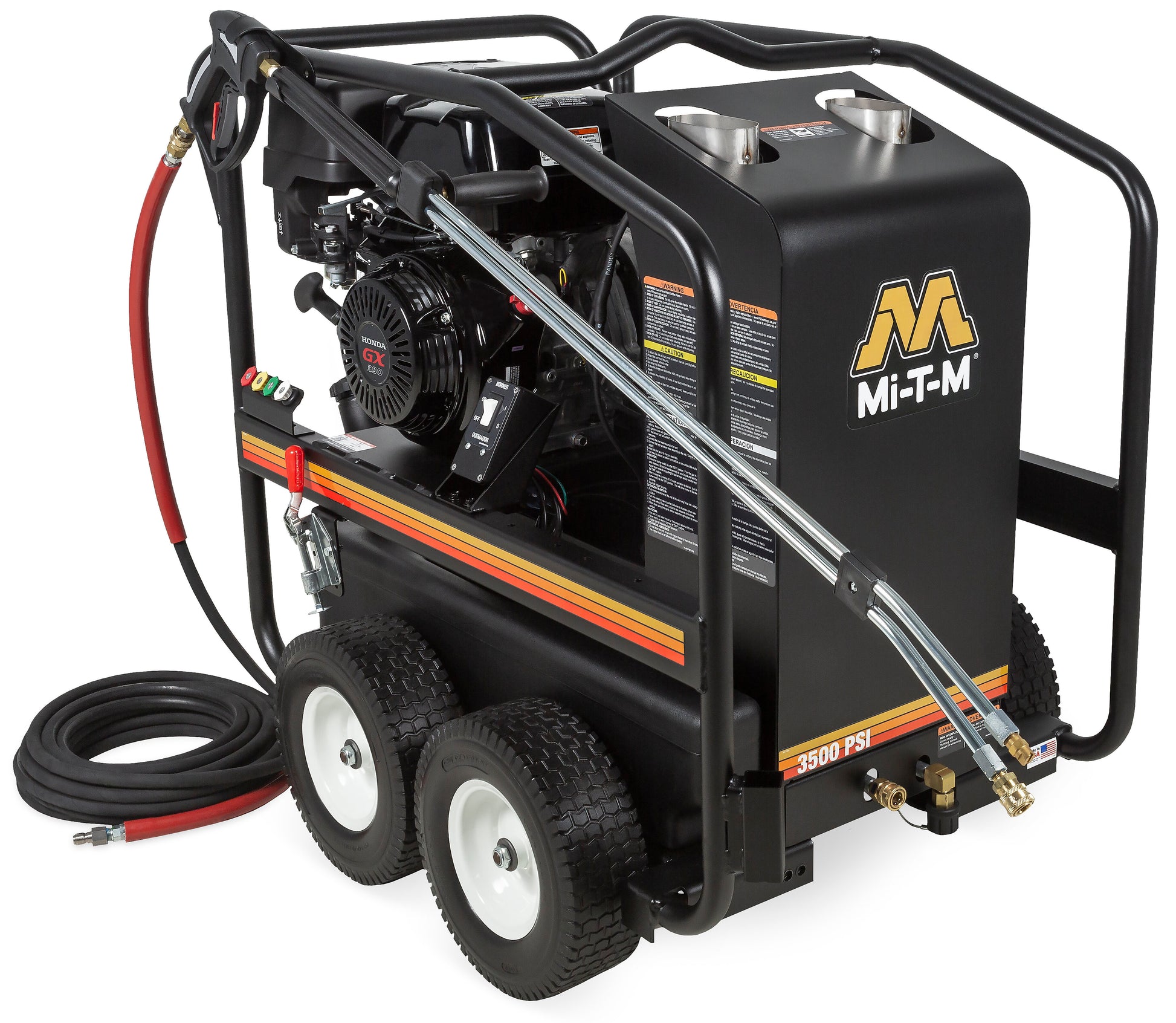

• Mi-T-M HSP-3504-3MGH 3500 PSI pressure washer
1 1

HSP Series Gasoline Direct Drive - HSP-3504-3MGH

HSP Series Gasoline Direct Drive - HSP-3504-3MGH

$6,571.53
$6,571.53
Sale Sold out
View full details

Product information & specifications

The Mi-T-M HSP-3504-3MGH is an industrial pressure washer model configured with 3500, 3.3, 389cc Honda GX390 OHV, 389cc Honda GX390 OHV+. This dealer listing combines model-specific specifications and manufacturer documentation.

This pressure washer easily eliminates grease and oils from equipment, garage floors and workshops and is equipped with an Electro Magnetic Firing (EMF) system.

Pump
External bypass system protects from heat build-up · Preset stainless-steel and brass unloader valve · Forged brass manifold · Thermal relief valve · Low pressure detergent injector

Frame
Reinforced powder coated steel frame with center balanced lift · 13-inch flat-free tires

Components
Top-fired powder coated heat exchanger · No. 1 or No. 2 diesel or kerosene fired burner (Not approved for bio-fuel)

Miscellaneous
Temperature rise 150°F/66°C above ambient, maximum outlet temperature is 200°F

Unit Includes
Quick connect nozzles - 0°, 15°, 25° and 40° · 50-foot x 3/8-inch steel wire-braided hose · Adjustable pressure insulated dual lance with trigger gun

Note: All gasoline models sold in California are required to have a CARB compliant engine. Consult factory.
49 state engine. Not for sale in California.

Specifications

PSI 3500
GPM 3.3
Displacement/ Engine 389cc Honda GX390 OHV
Pump AR
Engine Fuel Tank Capacity 1.61 gallon
Burner Fuel Tank Capacity 5.5 gallon
Burner Fuel Cons. 2.14 gph
BTU Per Hour 294,000
Net Weight 428.00 lbs.
Shipping Weight 551.00 lbs.
Length 43.00 in.
Width 30.00 in.
Height 41.00 in.
Displacement / Engine 389cc Honda GX390 OHV+
Tank Capcity 1.61 gallons
Tank 5.5
Capacity Consumption Hour (Lxwxh) gallons 2.14 gph 294,000 43x30x41in.

Options

Options - must be ordered with unit and cannot be added later.

  • HX-0098 Electric Start - Sealed Battery Included

    For easy starting

  • HX-0274 Rain Cap

    Protects boiler from moisture build-up when unit is left outside

  • HX-0279 Hour Meter

    Displays the number of hours unit has been in operation

  • HX-0280 Adjustable Thermostat

    Operator is able to adjust outlet water temperature between 98°-248°F

  • HX-0281 Hour Meter / Adjustable Thermostat

    Displays the number of hours unit has been in operation and also the operator is able to adjust outlet water temperature between 98°-248°F

  • HX-0300 Skid Feet

    Stationary applications

Resources

Limited warranties

Coil 3 years
Engine 3 years
Pump 7 years

Certifications

  • ETL Certified - US

Sales and compliance notes

  • Note: All gasoline models sold in California are required to have a CARB compliant engine. Consult factory.
  • 49-state engine. Not for sale in California.

Manufacturer information: Mi-T-M
