HSE Series Electric Belt Drive - HSE-2504-0M30
HSE Series Electric Belt Drive - HSE-2504-0M30
Couldn't load pickup availability
Product information & specifications

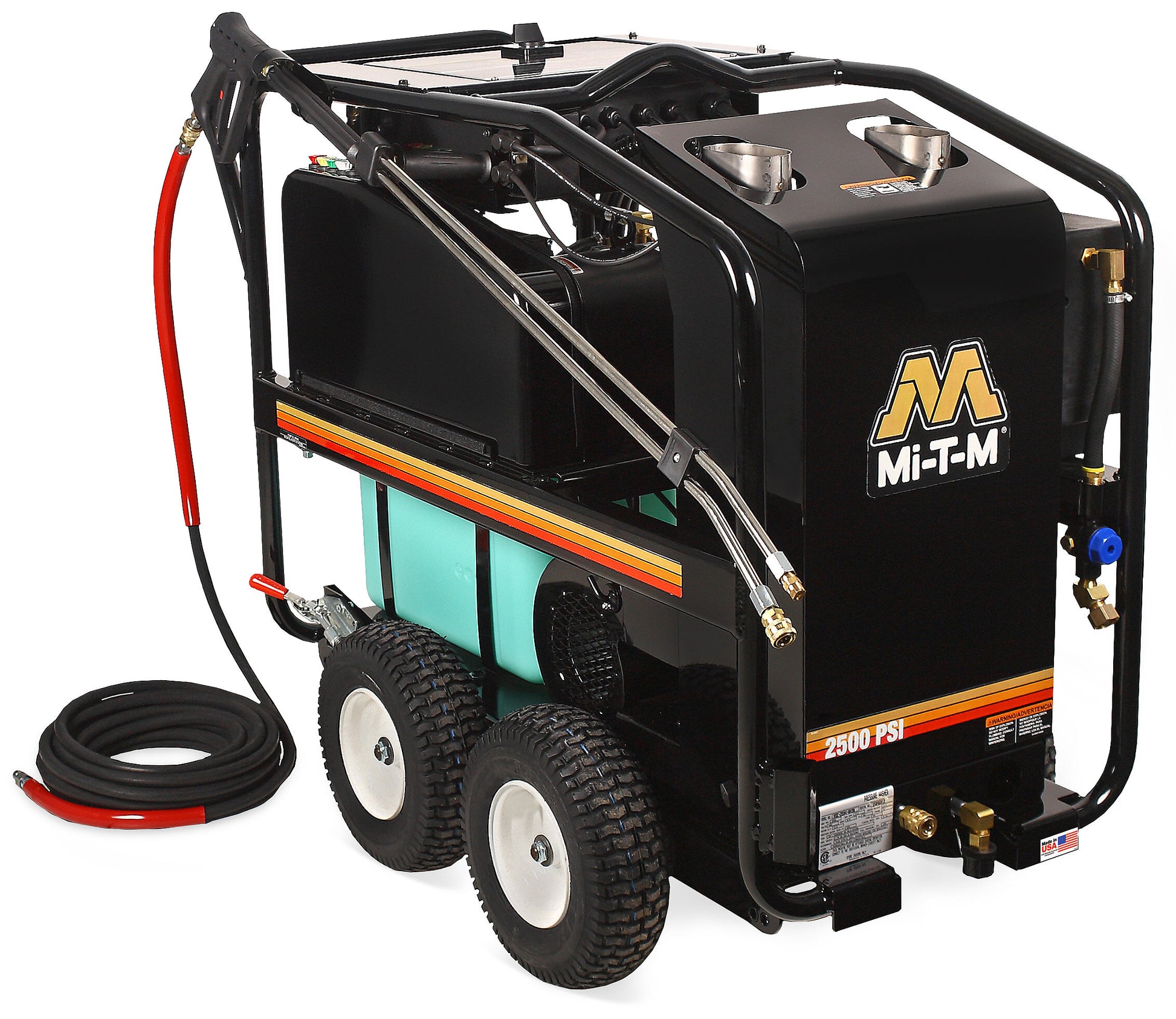

The Mi-T-M HSE-2504-0M30 is an industrial pressure washer model configured with 2500, 3.2, General. This dealer listing combines model-specific specifications and manufacturer documentation.
Contractors rely on the HSE Series for its efficiency, reliability and longevity. It is heavy-duty and is great for melting away greasy residue and debris on industrial and commercial worksites.
Pump
External bypass system protects from heat build-up · Factory preset unloader · Forged brass manifold · Thermal relief valve · High pressure detergent injector
Motor
Totally enclosed fan-cooled electric motor with manual thermal overload protection · 35-foot power cord
Frame
Reinforced powder coated steel frame with center balanced lift · 13-inch flat-free tires
Components
Energy-efficient top-fired heat exchanger · No. 1 or No. 2 diesel or kerosene fired burner (Not approved for bio-fuel)
Miscellaneous
Temperature rise 150°F/66°C above ambient, maximum outlet temperature is 225°F
Unit Includes
Quick connect nozzles - 0°, 15°, 25° and 40° · 50-foot x 3/8-inch steel wire-braided hose · Adjustable pressure insulated dual lance with trigger gun
Specifications
| PSI | 2500 |
|---|---|
| GPM | 3.2 |
| Horsepower/Motor | 6.0 HP, 230-460V, 3Ø, 17.3A |
| Pump | General |
| Plug Type | NEMA L15-20P |
| Burner Fuel Tank Capacity | 10.0 gallon |
| Burner Fuel Cons. | 2.10 gph |
| BTU Per Hour | 294,000 |
| Net Weight | 558.00 lbs. |
| Shipping Weight | 688.00 lbs. |
| Length | 49.50 in. |
| Width | 28.00 in. |
| Height | 40.50 in. |
| Gpm Horsepower/Motor | 3.2 6.0 HP, 230-460V, 3Ø, 17.3A |
| Pump Plug Type | General NEMA L15-20P |
| Tank Cap. Fuel Cons. Hour (Lxwxh) | 10.0 gallons 2.10 gph 294,000 49.5x28x40.5in. |
Options
Options - must be ordered with unit and cannot be added later.
-
HX-0070 Auto Start/Stop
When trigger gun is released, the timer will turn unit off; when trigger gun is pulled unit will restart
-
HX-0071 Auto Start/Stop - Steam
When trigger gun is released, the timer will turn unit off; when trigger gun is pulled unit will restart; Reduces pressure to 350-PSI by adjusting unloader valve counter-clockwise, spray temperatures will rise 240°F above ambient with a maximum of 300°F
-
HX-0074 Auto Start/Stop - CAD Cell
When trigger gun is released, the timer will turn unit off; when trigger gun is pulled unit will restart; Monitors burner for proper ignition
-
HX-0075 Auto Start/Stop - Steam - CAD Cell
When trigger gun is released, the timer will turn unit off; when trigger gun is pulled unit will restart; Reduces pressure to 350-PSI by adjusting unloader valve counter-clockwise, spray temperatures will rise 240°F above ambient with a maximum of 300°F; Monitors burner for proper ignition
-
HX-0085 460V on 6.0 HP, 3 Phase Models
Upgrades 230V, 3-phase models to operate at 460V, 3-phase
-
HX-0088 Skid Feet
Stationary applications
-
HX-0161 Hour Meter
Displays the number of hours unit has been in operation
-
HX-0294 Adjustable Thermostat
Operator is able to adjust outlet water temperature between 86°-248°F
Resources
Limited warranties
| Electric Motor | 1 year |
|---|---|
| Coil | 3 years |
| General Pump | 7 years |
Certifications
- ETL Certified - US
Manufacturer information: Mi-T-M
