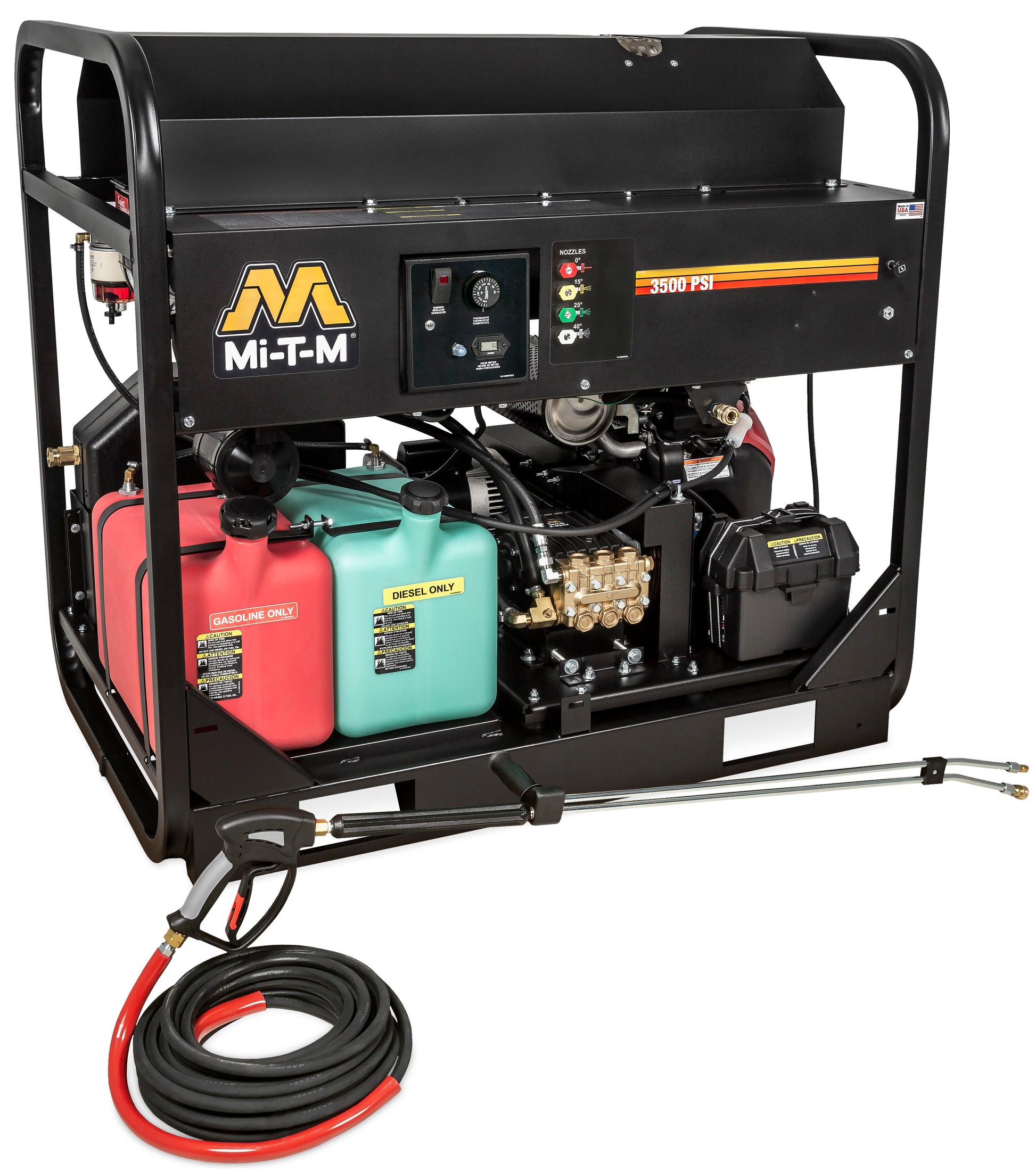

HS Series Gasoline Belt Drive - HS-3506-1MGH

The Mi-T-M HS-3506-1MGH is an industrial pressure washer model configured with 3500, 5.6, 688cc Honda GX630 OHV, General. This dealer listing combines model-specific specifications and manufacturer documentation.

Mount the HS Series to a trailer or in the back of a truck to take mobile cleaning from one jobsite to the next. Easily blast away grease, oil, heavy mud and grime with ease.

Pump
External bypass system protects from heat build-up · Factory preset unloader · Forged brass manifold · 80-mesh, high volume, stainless-steel screen inlet water strainer

Engine
Electric start - sealed battery included

Frame
Heavy-duty powder coated steel frame

Components
2900-watt generator · Heavy-duty dual cogged belt drive system · No. 1 or No. 2 diesel or kerosene fired burner (Not approved for bio-fuel) · 1/2-inch schedule 80-coil with stainless-steel wrap

Miscellaneous
Temperature rise 150°F/66°C above ambient, maximum outlet temperature is 200°F

Unit Includes
Quick connect nozzles – 0°, 15°, 25° and 40° · 50-foot x 3/8-inch steel wire-braided hose · Adjustable pressure insulated dual lance with trigger gun

Note: All gasoline models sold in California are required to have a CARB compliant engine and/or fuel tank. Consult factory.
49 state engine and/or fuel tank. Not for sale in California.

Specifications

Options

Options - must be ordered with unit and cannot be added later.

• HX-0130 Three-way Ball Valve

  Allows pressure washer to be operated from garden hose/float tank or trailer supply tank by adjusting ball valve lever. Cannot be ordered with HX-0285 steel diesel fuel tank.

• HX-0131 High Pressure Detergent Injector, K7

  Supplies soap injection through the high pressure pump while spraying; pressure washers with K7 flow actuated unloaders only

• HX-0133 Steam Combination 250°F, K7

  Increases outlet temperature to 250°F. Steam option for models equipped with K7 flow actuated unloaders. Cannot be combined with dual gun option HX-0144.

• HX-0140 Steam Combination 250°F

  Increases outlet temperature to 250°F. Cannot be combined with dual gun option HX-0144. **Requires trapping unloader. Consult factory before ordering this option**

• HX-0143 Trapping Unloader

  For longer hose runs and cleaning elevated areas

• HX-0144 Dual Gun

  Two guns may be sprayed at the same time; flow is divided between the two guns while each operator maintains equal system pressure **Requires trapping unloader. Contact factory before ordering this option.**

• HX-0145 Adjustable Thermostat

  Operator is able to adjust outlet water temperature between 86°F-248°F

• HX-0147 Four Point Lifting Capability

  Allows unit to be lifted by crane

• HX-0148 Adjustable Detergent Valve

  Supplies soap injection through the high pressure pump while spraying; pressure washers with trapping unloader only **Requires trapping unloader. Consult factory before ordering this option.**

Resources

• Download Catalog
• View Product Sheet
• View Product Manual

Limited warranties

Certifications

• CSA Certified - US

Sales and compliance notes

• Note: All gasoline models sold in California are required to have a CARB compliant engine. Consult factory.

Manufacturer information: Mi-T-M
