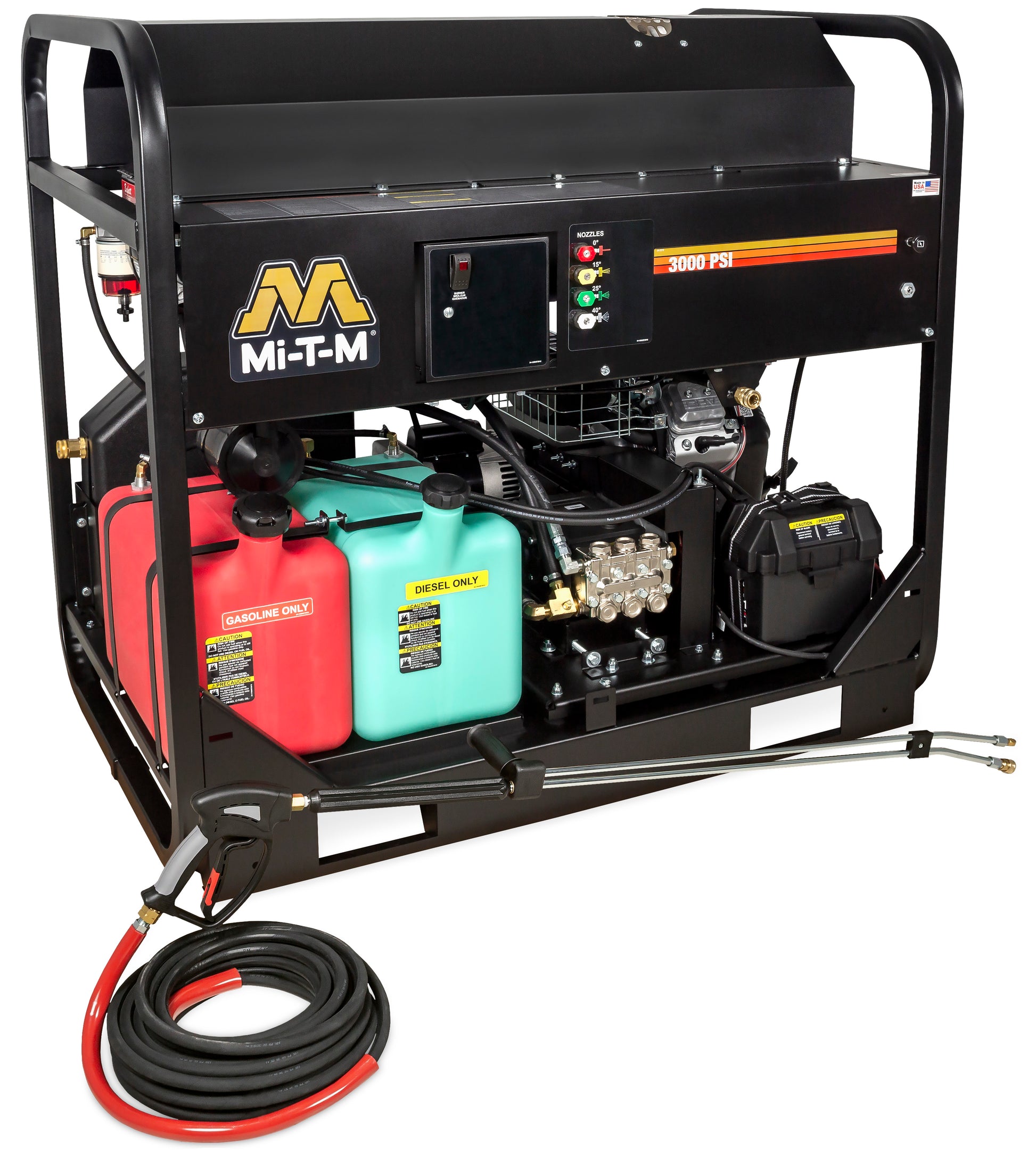

• Mi-T-M HS-3005-0MGV 3000 PSI pressure washer
1 1

HS Series Gasoline Belt Drive - HS-3005-0MGV

HS Series Gasoline Belt Drive - HS-3005-0MGV

$9,622.22
$9,622.22
Sale Sold out
View full details

Product information & specifications

The Mi-T-M HS-3005-0MGV is an industrial pressure washer model configured with 3000, 4.8, 480cc Vanguard OHV, General. This dealer listing combines model-specific specifications and manufacturer documentation.

Mount the HS Series to a trailer or in the back of a truck to take mobile cleaning from one jobsite to the next. Easily blast away grease, oil, heavy mud and grime with ease.

Pump
External bypass system protects from heat build-up · Factory preset unloader · Forged brass manifold · 80-mesh, high volume, stainless-steel screen inlet water strainer

Engine
Electric start - sealed battery included

Frame
Heavy-duty powder coated steel frame

Components
2900-watt generator · Heavy-duty dual cogged belt drive system · No. 1 or No. 2 diesel or kerosene fired burner (Not approved for bio-fuel) · 1/2-inch schedule 80-coil with stainless-steel wrap

Miscellaneous
Temperature rise 150°F/66°C above ambient, maximum outlet temperature is 200°F

Unit Includes
Quick connect nozzles – 0°, 15°, 25° and 40° · 50-foot x 3/8-inch steel wire-braided hose · Adjustable pressure insulated dual lance with trigger gun

Note: All gasoline models sold in California are required to have a CARB compliant engine and/or fuel tank. Consult factory.
49 state engine and/or fuel tank. Not for sale in California.

Specifications

PSI 3000
GPM 4.8
Displacement/ Engine 480cc Vanguard OHV
Pump General
Engine Fuel Tank Capacity 10.0 gallon
Burner Fuel Tank Capacity 10.0 gallon
Burner Fuel Cons. 3.37 gph
BTU Per Hour 471,800
Net Weight 710.00 lbs.
Shipping Weight 816.00 lbs.
Length 50.00 in.
Width 34.00 in.
Height 46.00 in.
Displacement / Engine 480cc Vanguard OHV
Tank Cap. 10.0 gallons
Tank Cap. Fuel Cons. Hour 10.0 gallons 3.37 gph 471,800
Dimensions (Lxwxh) Wt. Wt. 50x34x46in. 816 lb. 710 lb.

Options

Options - must be ordered with unit and cannot be added later.

  • HX-0130 Three-way Ball Valve

    Allows pressure washer to be operated from garden hose/float tank or trailer supply tank by adjusting ball valve lever. Cannot be ordered with HX-0285 steel diesel fuel tank.

  • HX-0131 High Pressure Detergent Injector, K7

    Supplies soap injection through the high pressure pump while spraying; pressure washers with K7 flow actuated unloaders only

  • HX-0133 Steam Combination 250°F, K7

    Increases outlet temperature to 250°F. Steam option for models equipped with K7 flow actuated unloaders. Cannot be combined with dual gun option HX-0144.

  • HX-0138 Steam Combination 250°F

    Increases outlet temperature to 250°F **Requires trapping unloader. Consult factory before ordering this option**

  • HX-0145 Adjustable Thermostat

    Operator is able to adjust outlet water temperature between 86°F-248°F

  • HX-0147 Four Point Lifting Capability

    Allows unit to be lifted by crane

  • HX-0148 Adjustable Detergent Valve

    Supplies soap injection through the high pressure pump while spraying; pressure washers with trapping unloader only **Requires trapping unloader. Consult factory before ordering this option.**

  • HX-0200 Trapping Unloader

    For longer hose runs and cleaning elevated areas

Resources

Limited warranties

Coil 3 years
Honda 3 years
Ar And General Pumps 7 years

Certifications

  • CSA Certified - US

Sales and compliance notes

  • Note: All gasoline models sold in California are required to have a CARB compliant engine. Consult factory.

Manufacturer information: Mi-T-M
