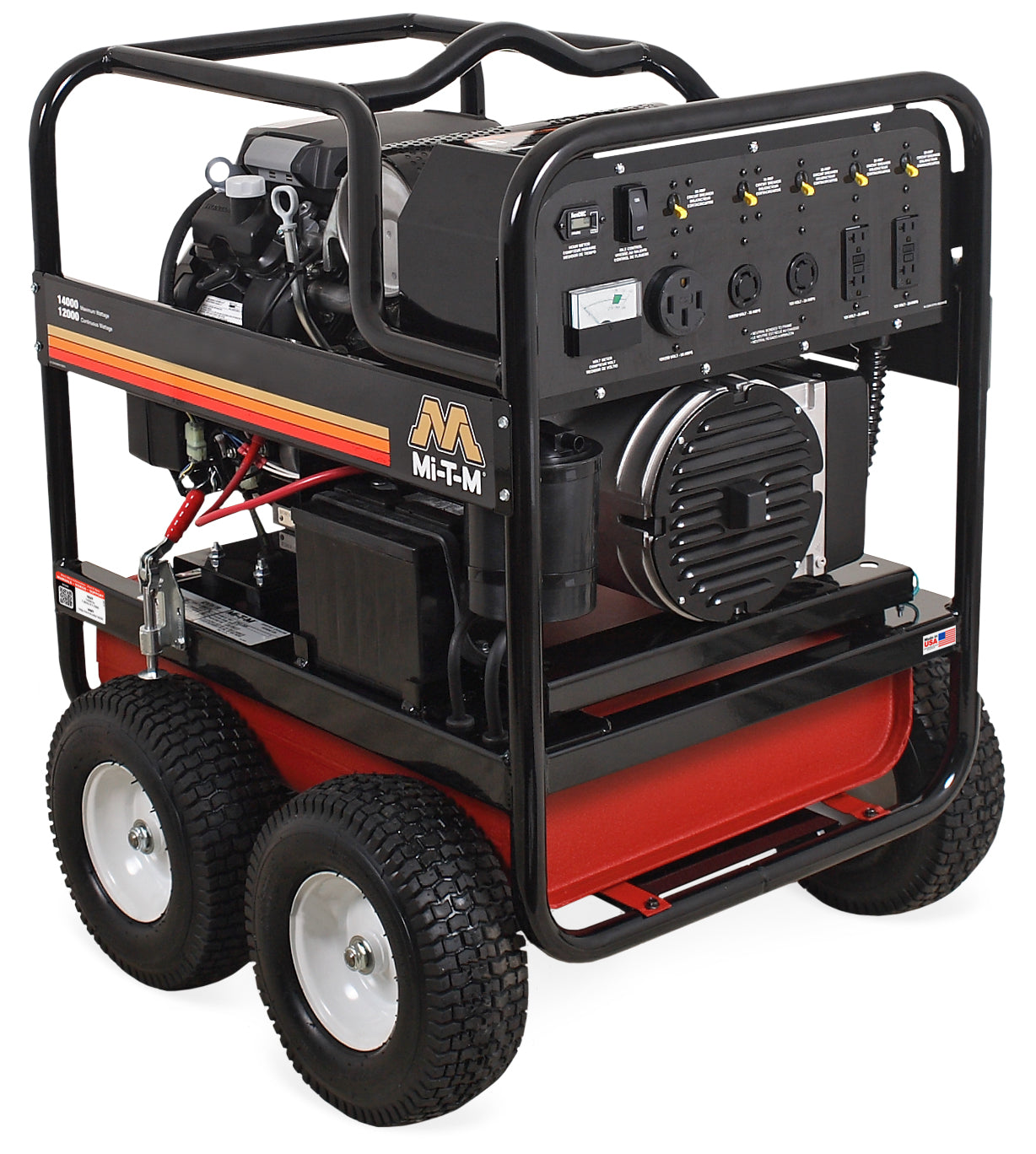

14000-Watt Gasoline Generator - GEN-14000-1MHE

14000-Watt Gasoline Generator - GEN-14000-1MHE

$8,052.08
$8,052.08
Sale Sold out
View full details

Product information & specifications

The Mi-T-M GEN-14000-1MHE is an industrial power generation model configured with 688cc Honda GX630 OHV. This dealer listing combines model-specific specifications and manufacturer documentation.

The most grueling jobs are no match for the 14000-watt generator, and it's designed to move easily from one job to the next.

Alternator
Total harmonic distortion (THD) less than 5% · Copper windings

Engine
Electric start – sealed battery included

Frame
Reinforced powder coated steel frame · 13-inch flat-free tires

Components
Easy-access and protected control panel with magnetic circuit breakers and GFCI-protected receptacles · Large low tone muffler · Easy-to-read fuel gauge · Idle control · Voltmeter/hour meter · Heavy-duty industrial air cleaner · USDA/USFS-approved spark arrestors

Noise level tested at seven meters (75% load). Rating represents minimum noise level rating.
49 state engine. Not for sale in California.

Specifications

Max. AC Output 14000 watts
Rated AC Output 12000 watts
Displacement/ Engine 688cc Honda GX630 OHV
Alternator Brushless 120V/240V, 60Hz
Max. Amps (120V/240V) 116.7/58.3
Cont. Amps (120V/240V) 100.0/50.0
Receptacles (2) 120V, 20A GFCI Duplex; (1) 120V, 30A Twist Lock; (1) 120V/240V, 30A Twist Lock; (1) 120V/240V, 50A
Circuit Breakers (2) 20A Toggle Circuit Breakers, Single Pole; (1) 30A Toggle Circuit Breaker, Single Pole; (1) 30A Toggle Circuit Breaker, Double Pole; (1) 50A Toggle Circuit Breaker, Double Pole
Rated Speed 3600 RPM
Decibel Rating 77.5
Fuel Capacity 13.2 gallons
Run Time (At Full Load) 8.0 hours
Net Weight 508.00 lbs.
Shipping Weight 568.00 lbs.
Length 31.50 in.
Width 30.50 in.
Height 37.50 in.

Options

Options - must be ordered with unit and cannot be added later.

  • GX-0003 Skid Feet

    For stationary applications

  • GX-0005 50-Amp Twist Lock Receptacle

    Marine receptacle for routine marine applications

Resources

Limited warranties

Engine 3 years

Certifications

  • CSA Certified

Sales and compliance notes

  • 49-state engine. Not for sale in California.

Manufacturer information: Mi-T-M
