20-Gallon Two Stage Gasoline - AM2-SH09-20M
20-Gallon Two Stage Gasoline - AM2-SH09-20M
Couldn't load pickup availability
Product information & specifications

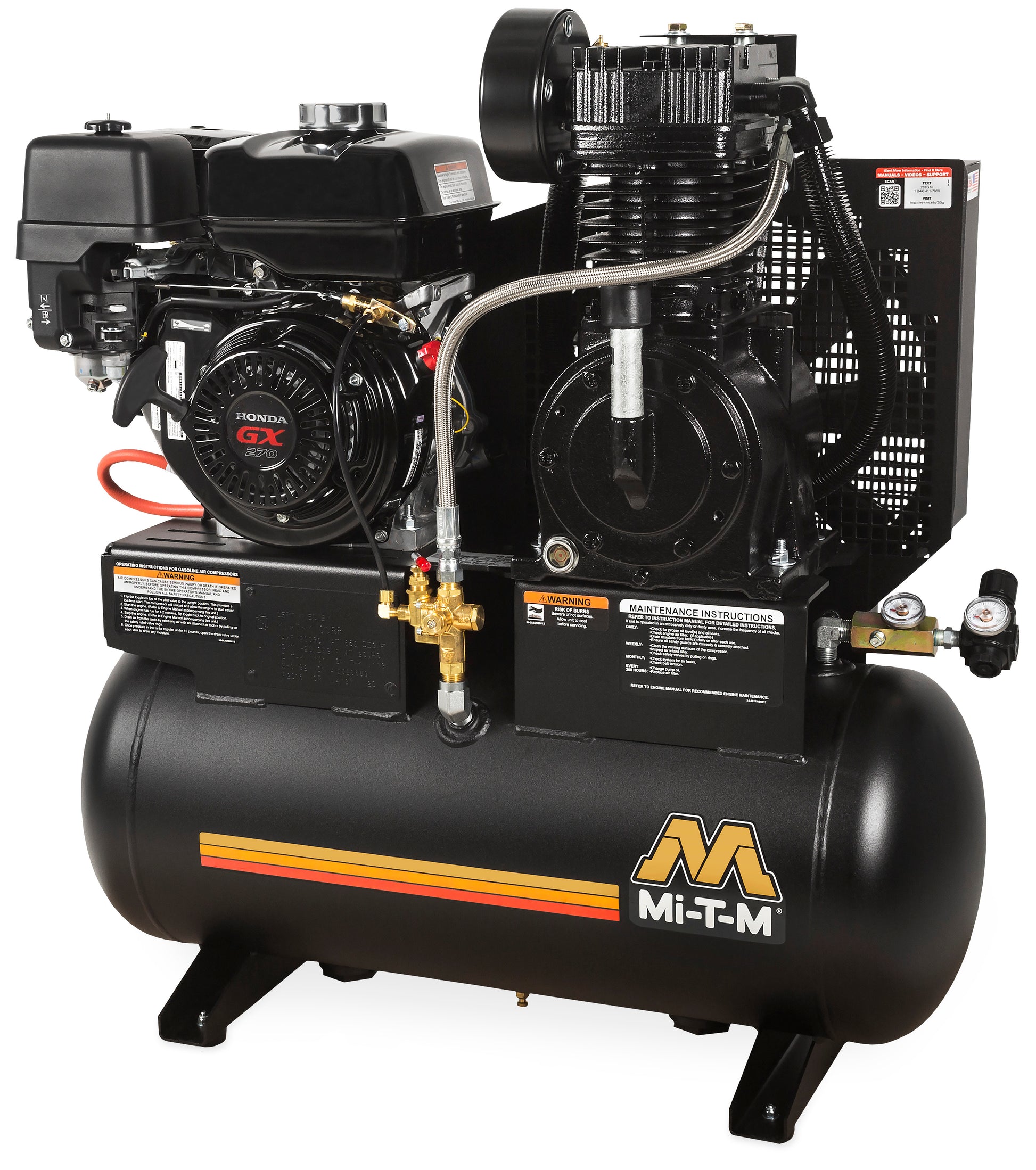

The Mi-T-M AM2-SH09-20M is an industrial air compressor model configured with 270cc Honda GX270 OHV. This dealer listing combines model-specific specifications and manufacturer documentation.
Remote jobsites require dependable power, and the two-stage, 20-gallon air compressor delivers reliable performance.
Compressor Pump
Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator
Frame
Powder coated ASME receiver tank · 3/16-inch base plate to reduce vibration · Powder coated two-piece belt guard
Components
Regulator and two gauges for tank and outlet pressure · Manual drain valve for proper maintenance · 16 1/2-inch fly wheel · Quality pilot valve unloader · Start/stop control set at 145 to 175-PSI
Equipped with 150-PSI maximum rated regulator.
Specifications
| CFM @ PSI | 17.2 @ 175 |
|---|---|
| Displacement/ Engine | 270cc Honda GX270 OHV |
| Engine Idle Control | Pneumatic |
| Net Weight | 306.00 lbs. |
| Shipping Weight | 356.00 lbs. |
| Length | 37.00 in. |
| Width | 18.00 in. |
| Height | 38.00 in. |
| Cfm @ Psi* | 17.2 @ 175 |
| Displacement / Engine | 270cc Honda GX270 OHV |
| Dimensions (L x W x H) | 37x18x38in. |
Options
Options - must be ordered with unit and cannot be added later.
-
AX-0003 Manual Drain/Regulator/Metal Bowl
Drains moisture from air system
Resources
Limited warranties
| Engine | 3 years |
|---|
Manufacturer information: Mi-T-M
