8-Gallon Two Stage Gasoline - AM2-PH09-08M
8-Gallon Two Stage Gasoline - AM2-PH09-08M
Couldn't load pickup availability
Product information & specifications

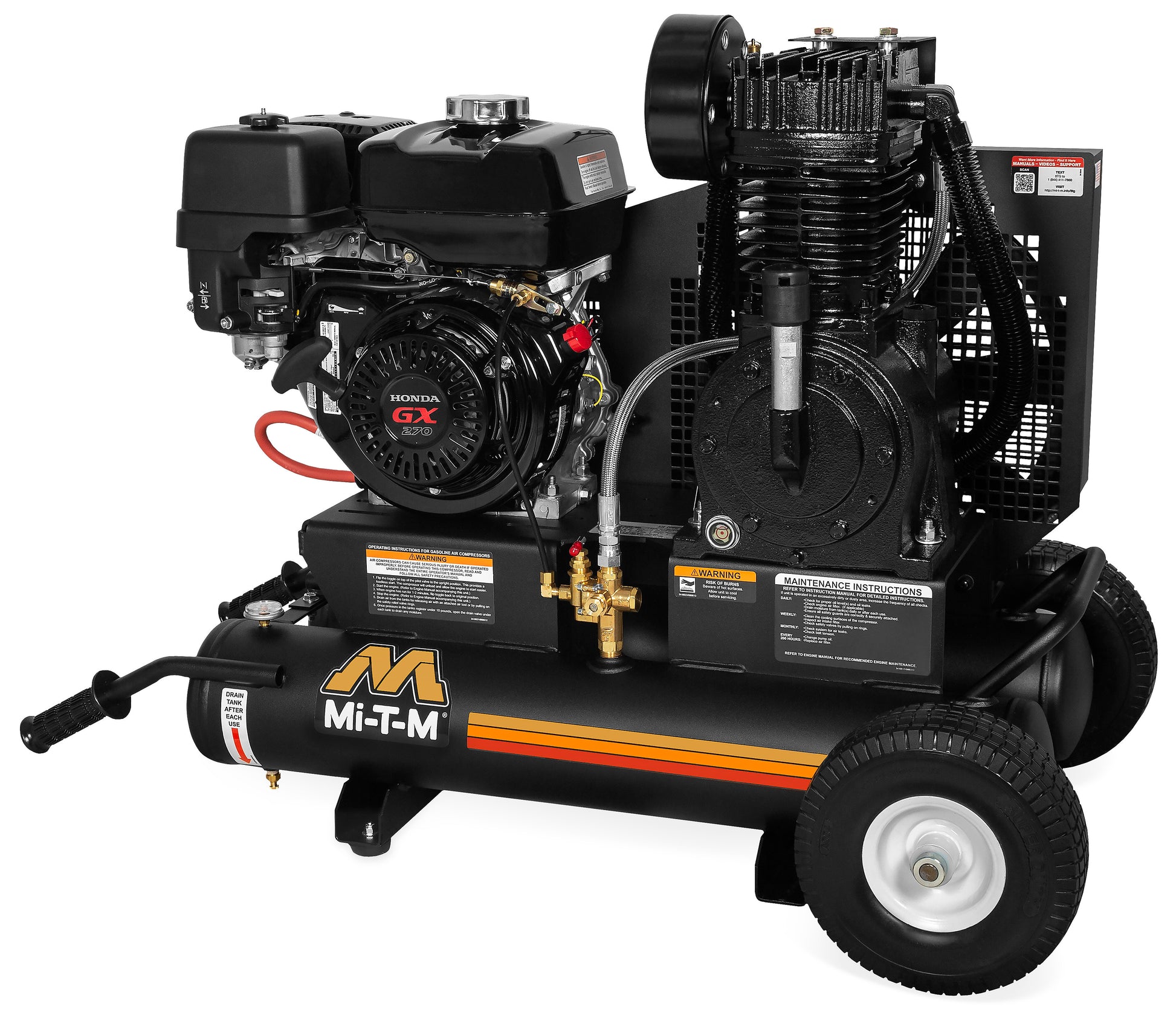

The Mi-T-M AM2-PH09-08M is an industrial air compressor model configured with 270cc Honda GX270 OHV. This dealer listing combines model-specific specifications and manufacturer documentation.
With its wheelbarrow design, this unit powers air tools like paint sprayers and pneumatic drills, making it ideal for construction, remodeling and shop projects.
Compressor Pump
Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator
Frame
Powder coated twin tank receivers · 3/16-inch base plate to reduce vibration · Powder coated two-piece belt guard · 10-inch flat-free tires
Components
Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 16 1/2-inch fly wheel · Quality pilot valve unloader · Start/stop control set at 145 to 175-PSI
Equipped with 150-PSI maximum rated regulator.
Specifications
| CFM @ PSI | 17.2 @ 175 |
|---|---|
| Displacement/ Engine | 270cc Honda GX270 OHV |
| Engine Idle Control | Pneumatic |
| Net Weight | 260.00 lbs. |
| Shipping Weight | 330.00 lbs. |
| Length | 44.00 in. |
| Width | 26.00 in. |
| Height | 31.00 in. |
| Cfm @ Psi* | 17.2 @ 175 |
| Displacement / Engine | 270cc Honda GX270 OHV |
| Dimensions (L x W x H) | 44x26x31in. |
Options
Options - must be ordered with unit and cannot be added later.
-
AX-0003 Manual Drain/Regulator/Metal Bowl
Drains moisture from air system
-
AX-0084 Stationary Option
Converts the portable model to a stationary model, removes the tires and handles
Resources
Limited warranties
| Engine | 3 years |
|---|
Manufacturer information: Mi-T-M
