8-Gallon Single Stage Gasoline - AM1-PK07-08M
8-Gallon Single Stage Gasoline - AM1-PK07-08M
Couldn't load pickup availability
Product information & specifications

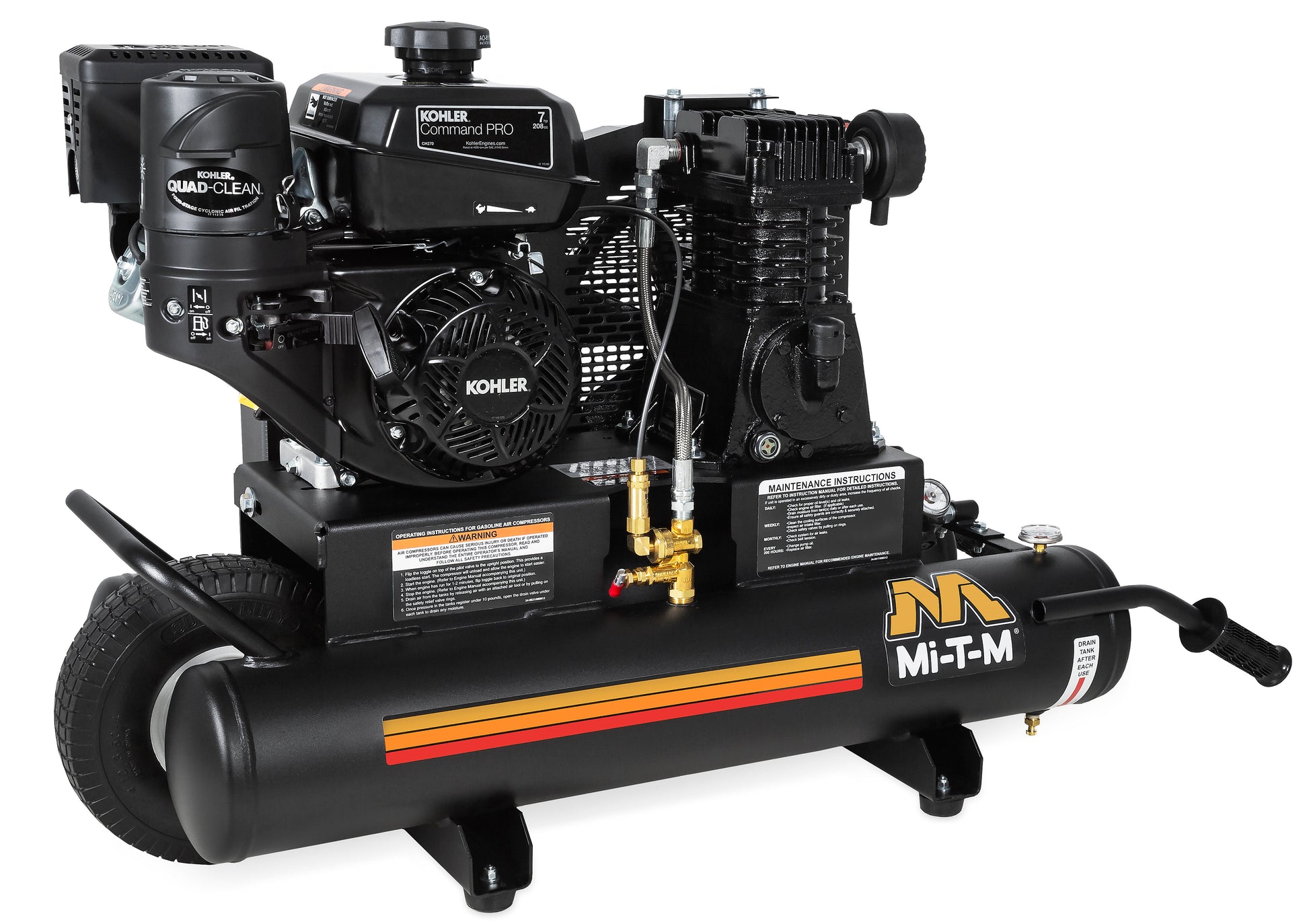

The Mi-T-M AM1-PK07-08M is an industrial air compressor model configured with 90, 208cc Kohler CH270 OHV. This dealer listing combines model-specific specifications and manufacturer documentation.
The 8-gallon air compressor powers air tools efficiently on construction sites. Its wheelbarrow design is perfect for servicing multiple job locations.
Compressor Pump
Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator
Frame
Powder coated twin tank receivers · 3/16-inch base plate to reduce vibration · Powder coated two-piece belt guard · 10-inch flat-free tire
Components
Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 12-inch fly wheel · Quality pilot valve unloader · Start/stop control set at 95 to 125-PSI
Specifications
| CFM @ PSI | 13.9 @ 90 |
|---|---|
| Displacement/ Engine | 208cc Kohler CH270 OHV |
| Engine Idle Control | Cable Throttle |
| Net Weight | 175.00 lbs. |
| Shipping Weight | 200.00 lbs. |
| Length | 44.50 in. |
| Width | 18.50 in. |
| Height | 27.00 in. |
| Cfm @ | 13.9 @ |
| PSI | 90 |
| Displacement / Engine | 208cc Kohler CH270 OHV |
| Dimensions (L x W x H) | 44.5x18.5x27in. |
Options
Options - must be ordered with unit and cannot be added later.
-
AX-0003 Manual Drain/Regulator/Metal Bowl
Drains moisture from air system
-
AX-0078 Stationary Option
Converts the portable model to a stationary model, removes the wheel
Resources
Limited warranties
| Engine | 3 years |
|---|
Manufacturer information: Mi-T-M
