20-Gallon Single Stage Gasoline - AM1-PH65-20M
20-Gallon Single Stage Gasoline - AM1-PH65-20M
Couldn't load pickup availability
Product information & specifications

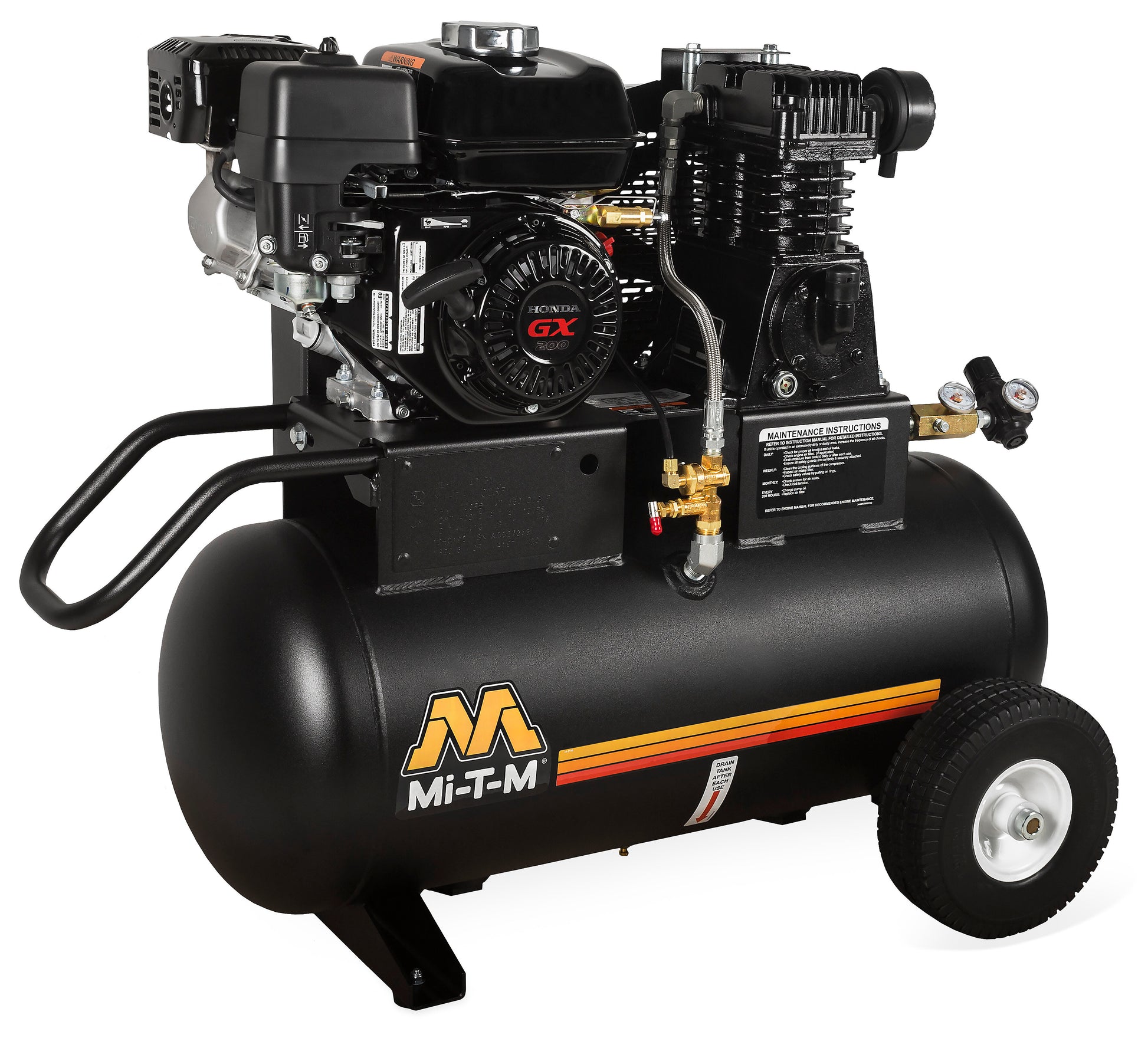

The Mi-T-M AM1-PH65-20M is an industrial air compressor model configured with 90, 196cc Honda GX200 OHV. This dealer listing combines model-specific specifications and manufacturer documentation.
With the 20-gallon single stage air compressor, contractors can power a variety of air tools, to get the job done right, every time.
Compressor Pump
Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator
Frame
Powder coated ASME receiver tank · 3/16-inch base plate to reduce vibration · Powder coated two-piece belt guard · 10-inch flat-free tires
Components
Regulator and two gauges for tank and outlet pressure · Manual drain valve for proper maintenance · 12-inch fly wheel · Quality pilot valve unloader · Start/stop control set at 95 to 125-PSI
Specifications
| CFM @ PSI | 13.9 @ 90 |
|---|---|
| Displacement/ Engine | 196cc Honda GX200 OHV |
| Engine Idle Control | Pneumatic |
| Net Weight | 212.00 lbs. |
| Shipping Weight | 272.00 lbs. |
| Length | 37.00 in. |
| Width | 23.50 in. |
| Height | 33.00 in. |
| Cfm @ | 13.9 @ |
| PSI | 90 |
| Displacement / Engine | 196cc Honda GX200 OHV |
| Dimensions (L x W x H) | 37x23.5x33in. |
Options
Options - must be ordered with unit and cannot be added later.
-
AX-0003 Manual Drain/Regulator/Metal Bowl
Drains moisture from air system
-
AX-0027 Stationary Kit
Converts the portable model to a stationary model, removes the wheels and adds the stationary leg
Resources
Limited warranties
| Engine | 3 years |
|---|
Manufacturer information: Mi-T-M
