8-Gallon Single Stage Electric - AM1-PE15-08M
8-Gallon Single Stage Electric - AM1-PE15-08M
Couldn't load pickup availability
Product information & specifications

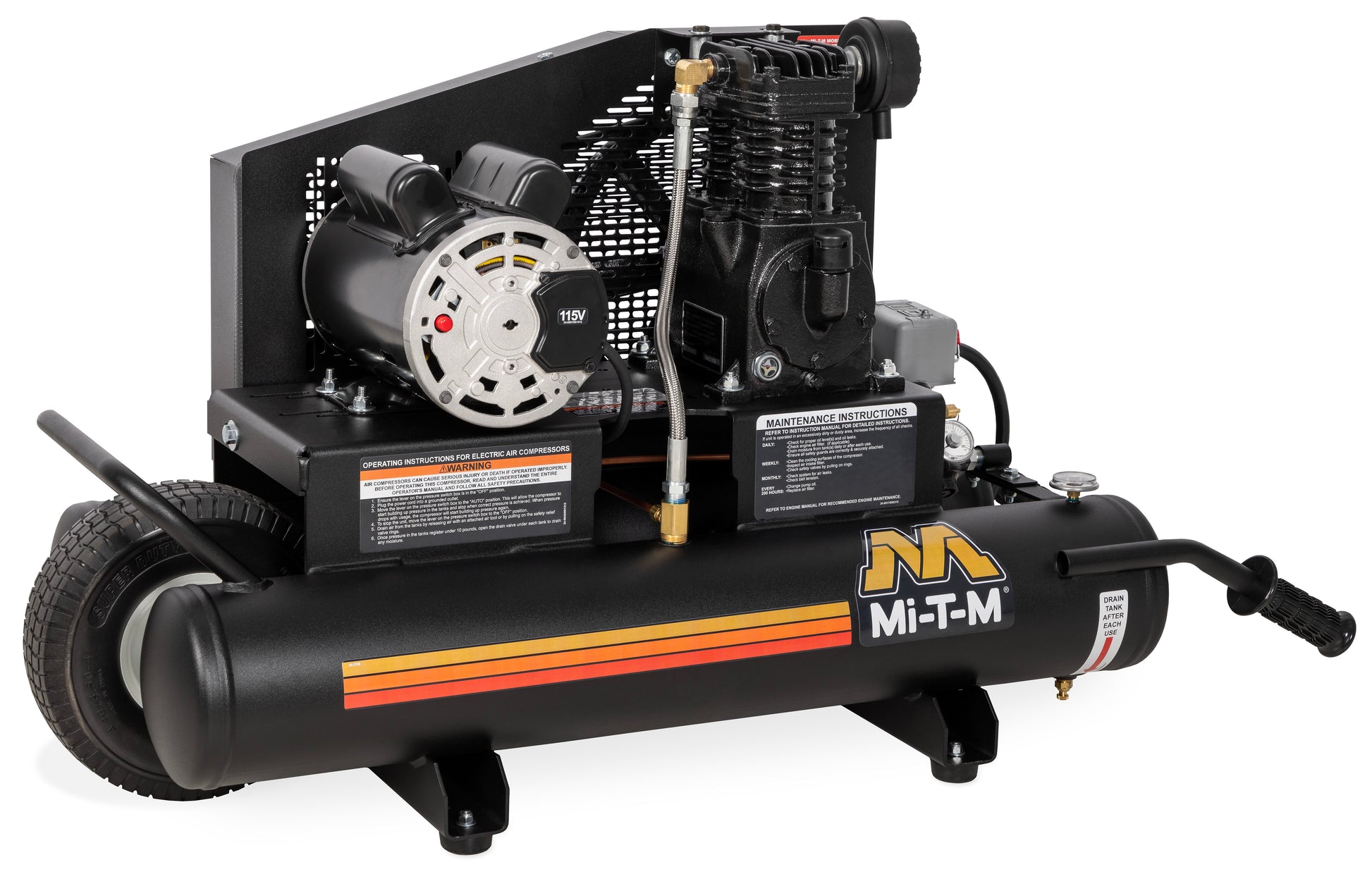

The Mi-T-M AM1-PE15-08M is an industrial air compressor model. This dealer listing combines model-specific specifications and manufacturer documentation.
The 8-gallon electric air compressor offers versatility for both large and small jobs. It's ideal for many uses.
Compressor Pump
Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator
Motor
Auto start/stop · Thermal overload motor protection · 8-foot power cord
Frame
Powder coated twin tank receivers · 3/16-inch base plate to reduce vibration · Powder coated two-piece belt guard · 10-inch flat-free tire
Components
Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 10-inch fly wheel · Industrial-grade pressure switch · Start/stop control set at 95 to 125-PSI (Not on continuous run models)
Specifications
| CFM @ PSI | 7.3 @ 90 |
|---|---|
| Horsepower/Motor | 1.5 HP, 120V, 13.2A |
| Plug Type | NEMA 5-15P |
| Net Weight | 170.00 lbs. |
| Shipping Weight | 190.00 lbs. |
| Length | 44.50 in. |
| Width | 18.50 in. |
| Height | 25.00 in. |
| Cfm @ | 7.3 @ 90 |
| Psi Horsepower/Motor Plug Type | 1.5 HP, 120V, 13.2A NEMA 5-15P |
| Dimensions (L x W x H) | 44.5x18.5x25in. |
Options
Options - must be ordered with unit and cannot be added later.
-
AX-0002 Auto Drain/Regulator/Plastic Bowl
Drains moisture from air system
-
AX-0003 Manual Drain/Regulator/Metal Bowl
Drains moisture from air system
-
AX-0078 Stationary Option
Converts the portable model to a stationary model, removes the wheel
-
AX-0005 Dual Control
Compressor can be operated in start/stop mode or continuous run where pilot valve exhausts air to atmosphere
Resources
Limited warranties
| Electric Motor | 1 year |
|---|
Certifications
- ETL Certified - US
Manufacturer information: Mi-T-M
