5-Gallon Single Stage Gasoline - AM1-HH04-05M
5-Gallon Single Stage Gasoline - AM1-HH04-05M
Couldn't load pickup availability
Product information & specifications

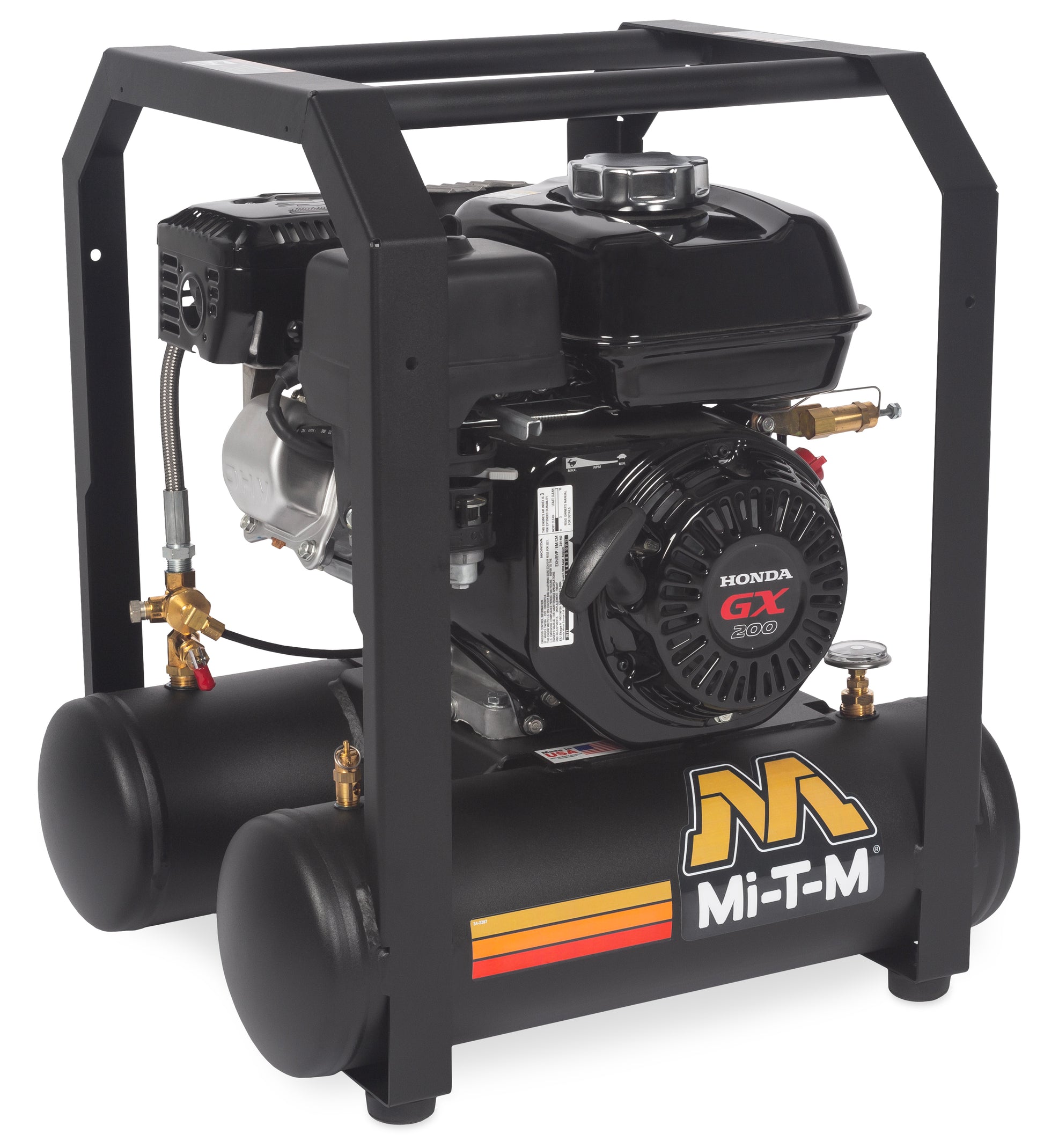

The Mi-T-M AM1-HH04-05M is an industrial air compressor model configured with 196cc Honda GX200 OHV. This dealer listing combines model-specific specifications and manufacturer documentation.
The 5-gallon gasoline air compressor makes do-it-yourself projects possible. Experience dependable energy for projects at home, businesses or small properties.
Compressor Pump
Cast iron cylinder · Splash lubricated aluminum crankcase · Stainless-steel braided discharge hose · Cartridge air filter
Frame
Powder coated steel frame and roll cage · Powder coated twin tank receivers
Components
Regulator and two gauges for tank and outlet pressure · Drain and pressure relief valves · Quality pilot valve unloader · Start/stop control set at 95 to 125-PSI
Specifications
| CFM @ PSI | 4.8 @ 90 |
|---|---|
| Displacement/ Engine | 196cc Honda GX200 OHV |
| Engine Idle Control | Pneumatic |
| Net Weight | 84.00 lbs. |
| Shipping Weight | 92.00 lbs. |
| Length | 21.00 in. |
| Width | 17.50 in. |
| Height | 23.25 in. |
| Cfm @ | 4.8 @ 90 |
| Displacement / Engine | 196cc Honda GX200 OHV |
| Dimensions (L x W x H) | 21x17.5x23.25in. |
Options
Options - must be ordered with unit and cannot be added later.
- No options
Resources
Limited warranties
| Engine | 3 years |
|---|
Manufacturer information: Mi-T-M
