5-Gallon Single Stage Electric - AM1-HE02-05M
5-Gallon Single Stage Electric - AM1-HE02-05M
Couldn't load pickup availability
Product information & specifications

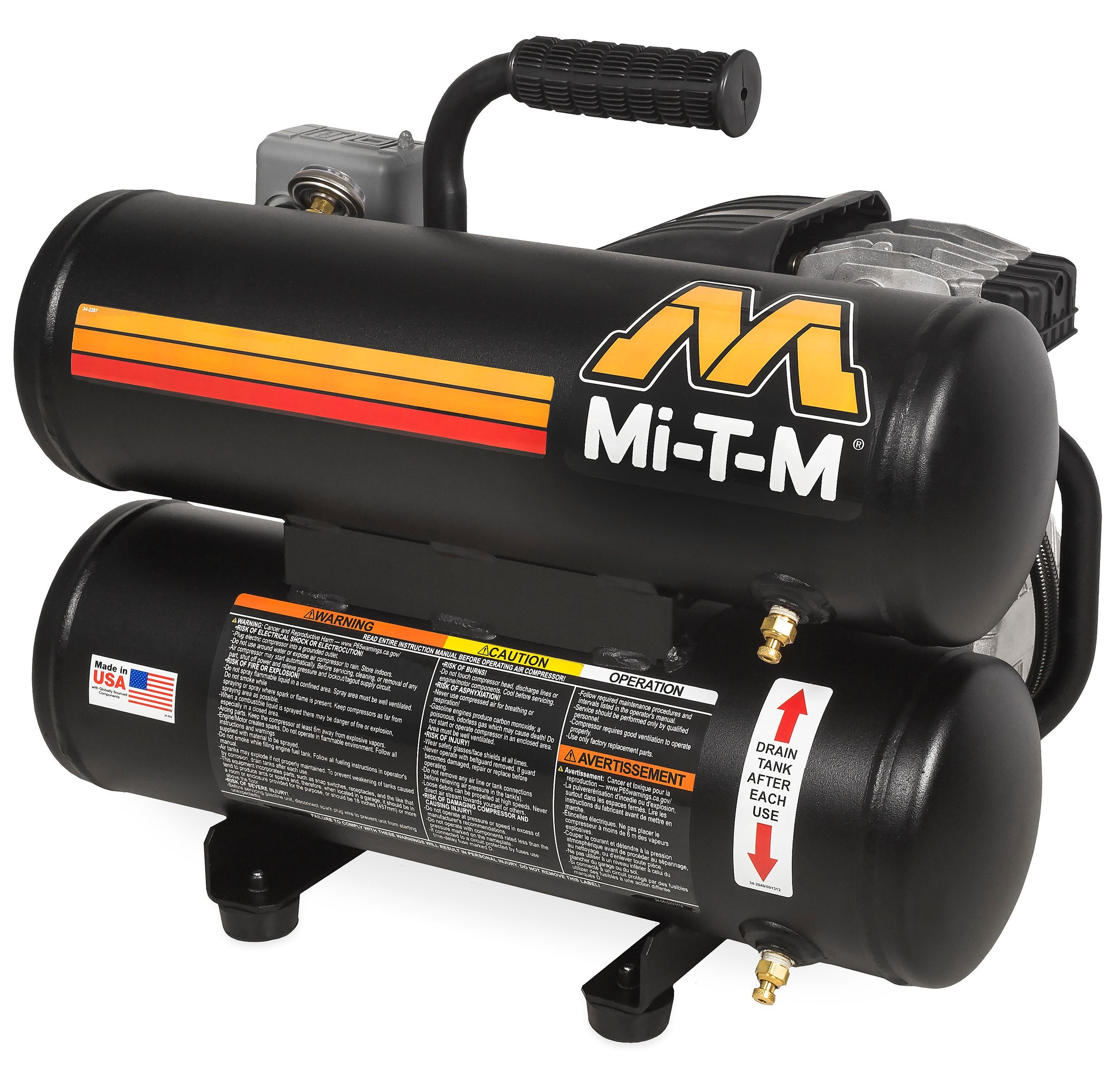

The Mi-T-M AM1-HE02-05M is an industrial air compressor model. This dealer listing combines model-specific specifications and manufacturer documentation.
The compact 5-gallon model is portable yet powerful and is perfect for a variety of projects.
Compressor Pump
Cast iron cylinder · Splash lubricated aluminum crankcase · Stainless-steel braided discharge hose · Inlet air filter
Motor
Thermal overload motor protection · 8-foot power cord
Frame
Powder coated twin tank assembly · Protective pump/motor housing
Components
Regulator and two gauges for tank and outlet pressure · Drain and pressure relief valves · Industrial interchange quick connect fittings · Start/stop control set at 95 to 125-PSI
Specifications
| CFM @ PSI | 4.2 @ 90 |
|---|---|
| Horsepower/Motor | 2.0 HP, 120V, 15.0A |
| Plug Type | NEMA 5-15P |
| Net Weight | 61.00 lbs. |
| Shipping Weight | 70.00 lbs. |
| Length | 20.50 in. |
| Width | 15.50 in. |
| Height | 17.50 in. |
| Cfm @ | 4.2 @ 90 |
| Psi Horsepower/Motor Plug Type | 2.0 HP, 120V, 15.0A NEMA 5-15P |
| Dimensions (L x W x H) | 20.5x15.5x17.5in. |
Options
Options - must be ordered with unit and cannot be added later.
- No options
Resources
Limited warranties
| Electric Motor | 1 year |
|---|
Certifications
- ETL Certified - US
Manufacturer information: Mi-T-M
