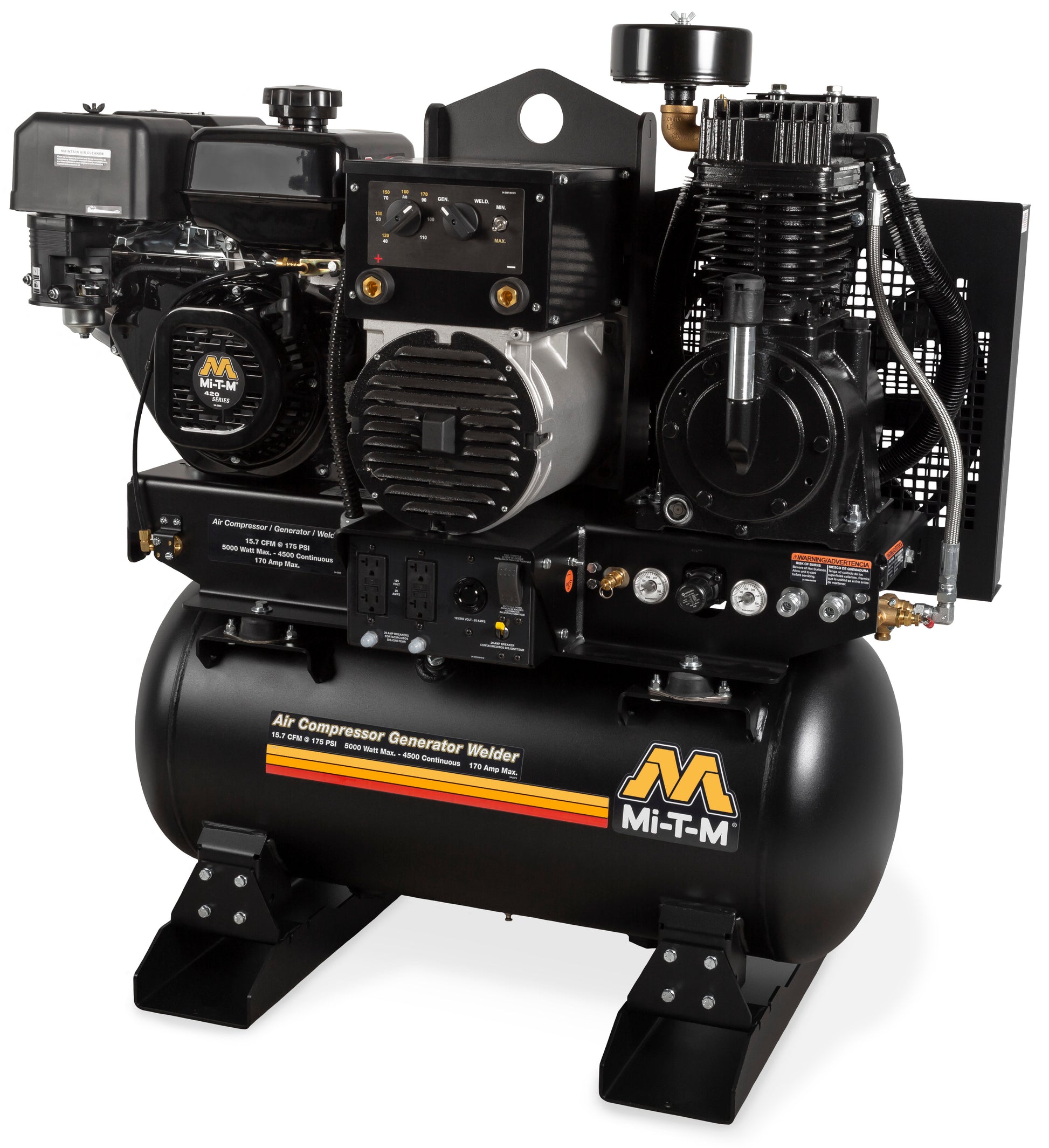

• Mi-T-M AGW-SM14-30M air compressor generator welder
1 1

Two Stage Gasoline 30-Gallon - AGW-SM14-30M

Two Stage Gasoline 30-Gallon - AGW-SM14-30M

$7,326.39
$7,326.39
Sale Sold out
View full details

Product information & specifications

The Mi-T-M AGW-SM14-30M is an industrial air compressor generator welder model configured with 420cc Mi-T-M OHV. This dealer listing combines model-specific specifications and manufacturer documentation.

The AGW Series combines an air compressor, generator and welder into one setup, making it easy to manage multiple tasks efficiently.

Compressor Pump
Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator

Generator
Brush-type 2 pole 120V/240V alternator · Total harmonic distortion (THD) less than 6% · 100% copper windings

Welder
Amperage selection switch, 170A or 220A maximum

Frame
Powder coated ASME receiver tank · Powder coated two-piece belt guard · Removable base plate offers flexible installation

Components
Regulator and two gauges for tank and outlet pressure · 150-PSI maximum rated regulator · Manual drain valves for proper maintenance · 16½-inch fly wheel · Quality pilot valve unloader

AGW Series Operation
Generator Mode
AC current only · Selector switch set to idle down · Switch is set to full throttle

Welder Mode
DC current only · Engine must be running full throttle · Selector switch must be set to full throttle

Note: All gasoline models sold in California are required to have a CARB compliant engine and/or fuel tank. Consult factory.
Equipped with electric start – battery and battery cables not included.

Specifications

Displacement/ Engine 420cc Mi-T-M OHV
Rated Speed 3600 RPM
CFM @ 90 PSI 16.4
CFM @ 175 PSI 15.7
Tank Size 30-gallon
Max. AC Output 5000 watts
Rated AC Output 4500 watts
Alternator Wattage: Cont. On-Load @ 90 PSI 3000 watts
Alternator Wattage: Cont. On-Load @ 175 PSI 2500 watts
Frequency/Voltage 60Hz/120V/240V
Max. Amps (120V/240V) 41.5/20.8 Off-Load
Cont. Amps (120V/240V) 37.5/18.8 Off-Load
Receptacles (2) 120V, 20A GFCI Duplex; (1) 120V/240V, 20A Twist Lock
Duty Cycle (10 Min. Run Time) 150A @ 100%
DC Voltage 50-170A Working Range
Fuel Tank 1.85-gallon
Net Weight 585.00 lbs.
Shipping Weight 650.00 lbs.
Length 46.00 in.
Width 22.00 in.
Height 47.00 in.

Options

Options - must be ordered with unit and cannot be added later.

  • IX-0001 Vibration Isolator Pads

    Isolators protect the unit from vibration during use; recommended for models that are mounted in service truck applications

  • AX-0070 Battery Tray, Box and 2-Foot of Cables

    Attaches to engine side of unit

  • AX-0016 Battery, Battery Tray, Box and 2-Foot Cables

    Attaches to engine side of unit

  • AX-0097 Remote Start/Choke, Sealed Cable

    7-foot wire extension for key switch

Resources

Limited warranties

Engine 3 years

Sales and compliance notes

  • Note: All gasoline models sold in California are required to have a CARB compliant engine. Consult factory.
  • 49-state engine. Not for sale in California.

Manufacturer information: Mi-T-M
