Two Stage Gasoline 20-Gallon - AGW-SH22-20M
Two Stage Gasoline 20-Gallon - AGW-SH22-20M
Couldn't load pickup availability
Product information & specifications

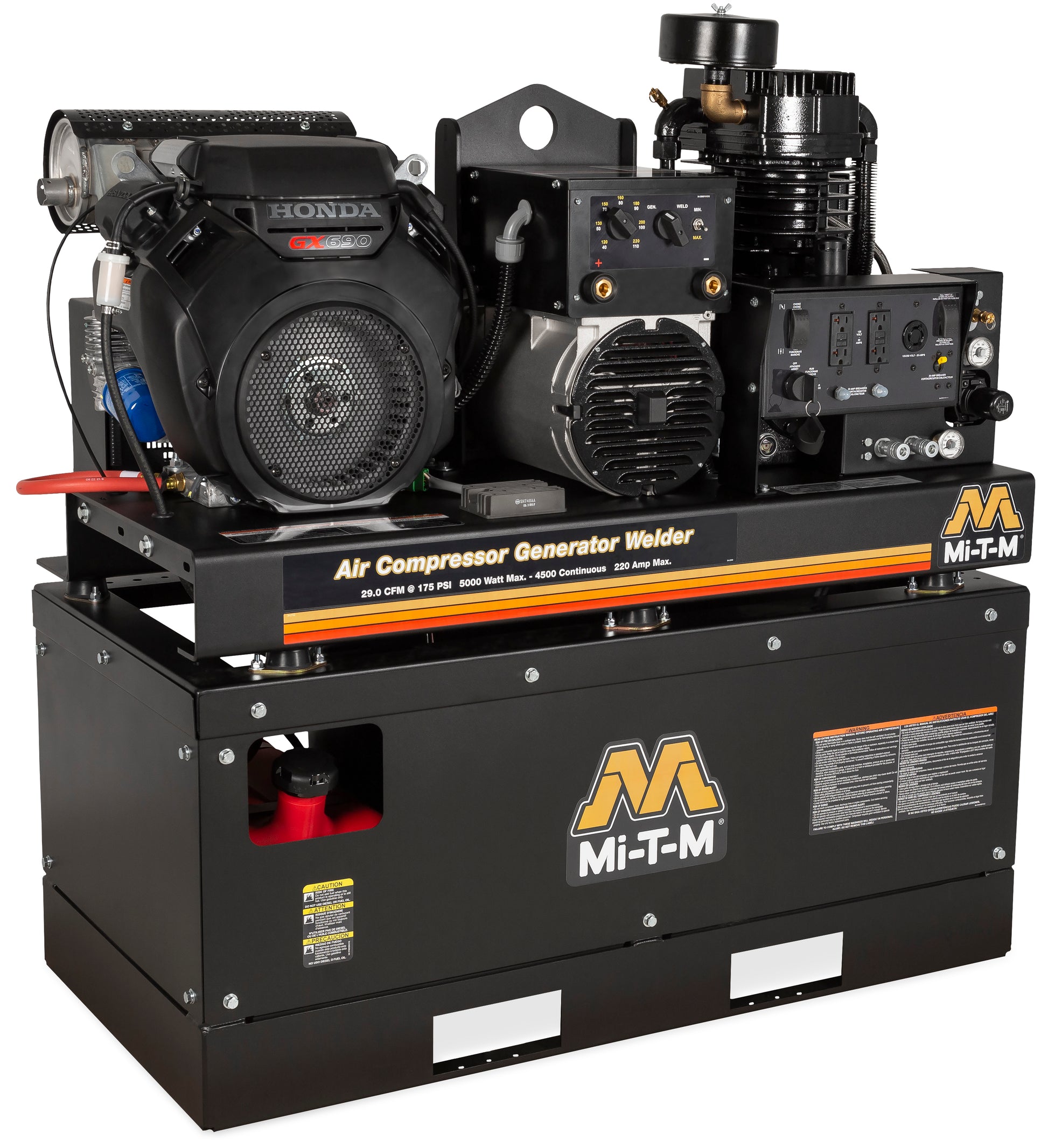

The Mi-T-M AGW-SH22-20M is an industrial air compressor generator welder model configured with 688cc Honda GX690 OHV. This dealer listing combines model-specific specifications and manufacturer documentation.
The AGW Series combines an air compressor, generator and welder into one setup, making it easy to manage multiple tasks efficiently.
Compressor Pump
Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator
Generator
Brush-type 2 pole 120V/240V alternator · Total harmonic distortion (THD) less than 6% · 100% copper windings
Welder
Amperage selection switch, 170A or 220A maximum
Frame
Powder coated ASME receiver tank · Powder coated four-piece belt guard · Removable base plate offers flexible installation
Components
Regulator and two gauges for tank and outlet pressure · 150-PSI maximum rated regulator · Manual drain valves for proper maintenance · 16½-inch fly wheel · Quality pilot valve unloader
AGW Series Operation
Generator Mode
AC current only · Selector switch set to idle down · Switch is set to full throttle
Welder Mode
DC current only · Engine must be running full throttle · Selector switch must be set to full throttle
Note: All gasoline models sold in California are required to have a CARB compliant engine and/or fuel tank. Consult factory.
49 state engine and/or fuel tank. Not for sale in California.
Equipped with electric start – battery not included.
Specifications
| Displacement/ Engine | 688cc Honda GX690 OHV |
|---|---|
| Rated Speed | 3600 RPM |
| CFM @ 90 PSI | 30.5 |
| CFM @ 175 PSI | 29.0 |
| Tank Size | 20-gallon |
| Max. AC Output | 5000 watts |
| Rated AC Output | 4500 watts |
| Alternator Wattage: Cont. On-Load @ 90 PSI | 4500 watts |
| Alternator Wattage: Cont. On-Load @ 175 PSI | 4500 watts |
| Frequency/Voltage | 60Hz/120V/240V |
| Max. Amps (120V/240V) | 41.5/20.8 |
| Cont. Amps (120V/240V) | 37.5/18.8 |
| Receptacles | (2) 120V, 20A GFCI Duplex; (1) 120V/240V, 20A Twist Lock |
| Duty Cycle (10 Min. Run Time) | 220A @ 40%, 190A @ 60%, 150A @ 100% |
| DC Voltage | 50-220A Working Range |
| Fuel Tank | 10-gallon |
| Net Weight | 803.00 lbs. |
| Shipping Weight | 870.00 lbs. |
| Length | 47.00 in. |
| Width | 24.00 in. |
| Height | 50.00 in. |
Options
Options - must be ordered with unit and cannot be added later.
-
IX-0001 Vibration Isolator Pads
Isolators protect the unit from vibration during use; recommended for models that are mounted in service truck applications
Resources
Limited warranties
| Engine | 3 years |
|---|
Sales and compliance notes
- Note: All gasoline models sold in California are required to have a CARB compliant engine. Consult factory.
- 49-state engine. Not for sale in California.
Manufacturer information: Mi-T-M
