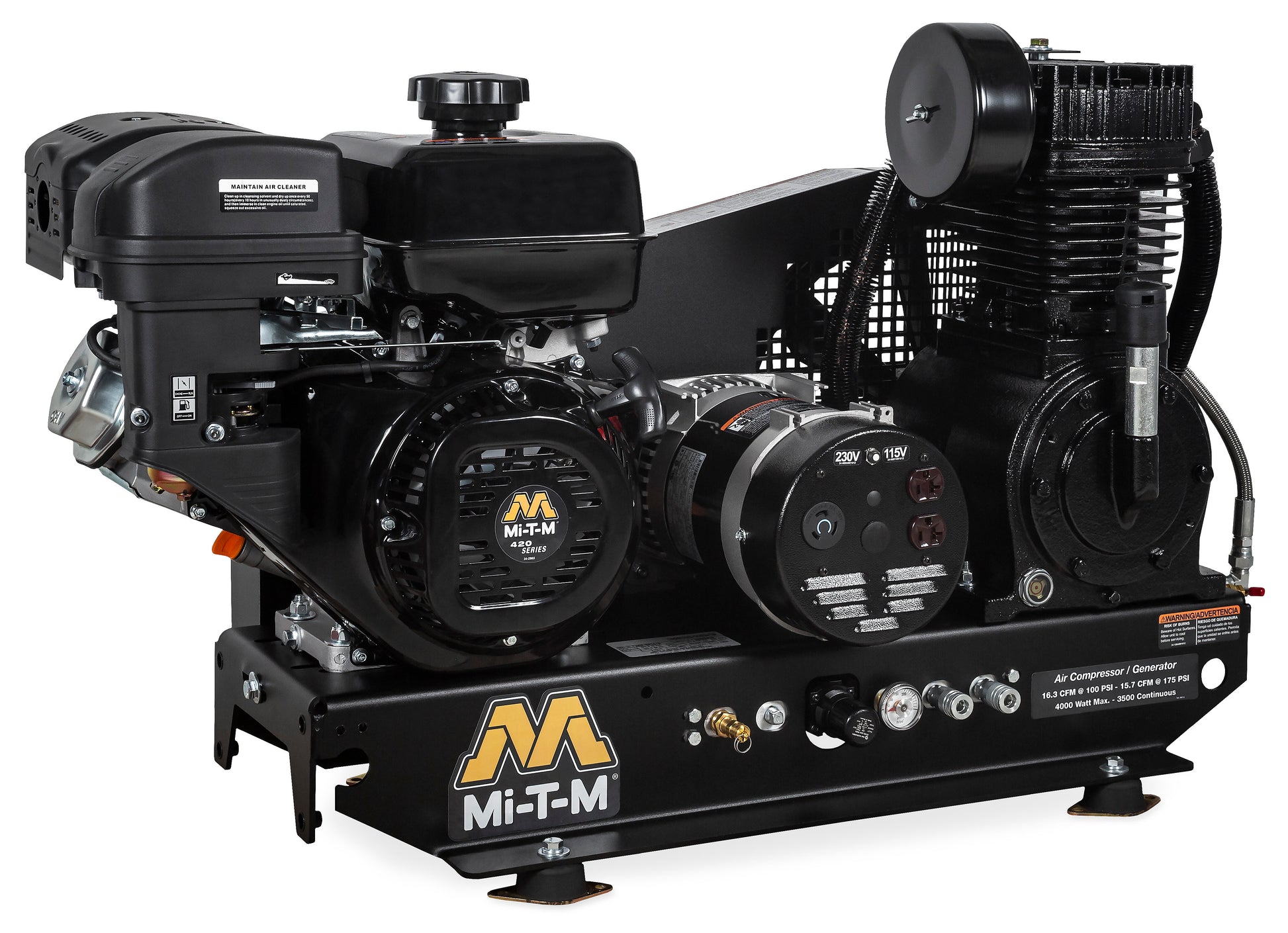

• Mi-T-M AG2-SM14-B air compressor generator
1 1

Base-Mount Two Stage Gasoline Combination - AG2-SM14-B

Base-Mount Two Stage Gasoline Combination - AG2-SM14-B

$3,152.08
$3,152.08
Sale Sold out
View full details

Product information & specifications

The Mi-T-M AG2-SM14-B is an industrial air compressor generator model configured with 420cc Mi-T-M OHV. This dealer listing combines model-specific specifications and manufacturer documentation.

Choose this gasoline air compressor and generator combination for unmatched performance, supplying air power and electricity to any jobsite.

Compressor Pump
Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator

Generator
Brushless alternator · Total harmonic distortion (THD) less than 6% · 100% copper windings · (2) NEMA 5-20R 120V, 20A and (1) NEMA L6-20R 240V, 20A receptacles

Frame
3/16-inch base plate to reduce vibration · Powder coated two-piece belt guard

Components
Regulator and two gauges for tank and outlet pressure · 150-PSI maximum rated regulator · Manual drain valves for proper maintenance · 12 or 16½-inch fly wheel · Quality pilot valve unloader

Note: All gasoline models sold in California are required to have a CARB compliant engine. Consult factory.
Receiver tank required.

Specifications

CFM @ PSI 15.7 @ 175
Alternator Wattage: Max. Output 4000 watts
Alternator Wattage: Cont. with Comp. On-Load 2300 watts
Alternator Wattage: Cont. with Comp. Off-Load 3500 watts
Displacement/ Engine 420cc Mi-T-M OHV
Net Weight 325.00 lbs.
Shipping Weight 390.00 lbs.
Length 47.00 in.
Width 22.00 in.
Height 28.00 in.

Options

Options - must be ordered with unit and cannot be added later.

  • AX-0063 Lifting Hook

    For easier portability

  • AX-0075 Idle Down

    When activated it automatically throttles down engine to conserve fuel, start/stop control set at 145 to 175-PSI

Resources

Limited warranties

Engine 3 years

Sales and compliance notes

  • Note: All gasoline models sold in California are required to have a CARB compliant engine. Consult factory.
  • 49-state engine. Not for sale in California.

Manufacturer information: Mi-T-M
