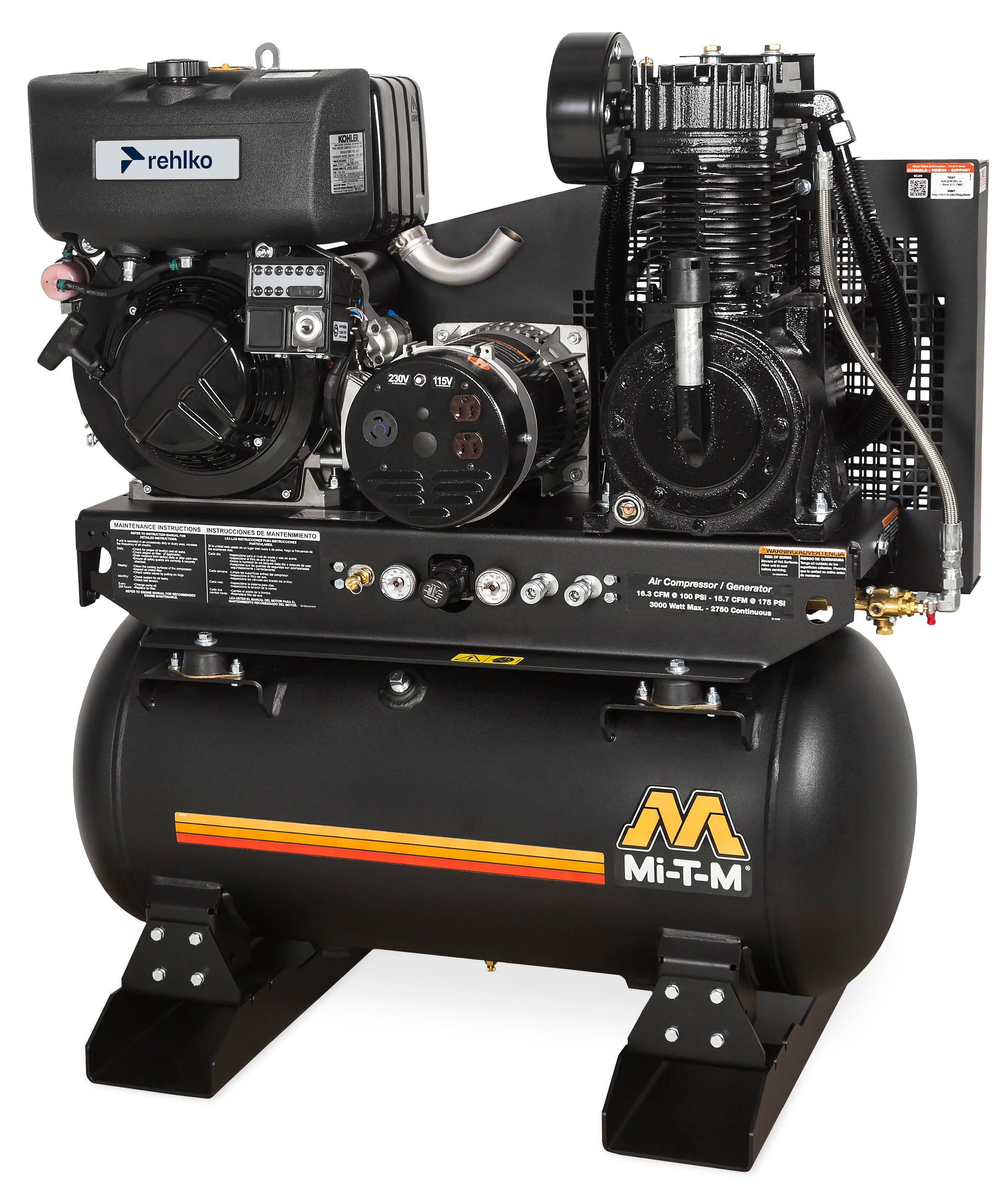

• Mi-T-M AG2-SKD9-30M 90 PSI air compressor generator
1 1

30-Gallon Two Stage Diesel Combination - AG2-SKD9-30M

30-Gallon Two Stage Diesel Combination - AG2-SKD9-30M

$9,423.61
$9,423.61
Sale Sold out
View full details

Product information & specifications

The Mi-T-M AG2-SKD9-30M is an industrial air compressor generator model configured with 90. This dealer listing combines model-specific specifications and manufacturer documentation.

The 30-gallon diesel air compressor and generator unit combines two machines into one compact solution to handle various industrial and contracting jobs with ease.

Compressor Pump
Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator

Generator
Brushless alternator · Total harmonic distortion (THD) less than 6% · 100% copper windings · (2) NEMA 5-20R 120V, 20A and (1) NEMA L6-20R 240V, 20A receptacles

Engine
Glow plug equipped for easy starting in cold temperatures

Frame
Powder coated ASME receiver tank · 3/16-inch base plate to reduce vibration · Powder coated two-piece belt guard · Removable base plate offers flexible installation

Components
Regulator and two gauges for tank and outlet pressure · 150-PSI maximum rated regulator · Manual drain valve for proper maintenance · 16½-inch fly wheel · Quality pilot valve unloader

Equipped with electric start – battery, box and cables not included.

Specifications

CFM @ PSI 15.7 @ 175
Alternator Wattage: Max. Output 3000 watts
Alternator Wattage: Cont. with Comp. On-Load 2300 watts
Alternator Wattage: Cont. with Comp. Off-Load 3000 watts
Horsepower/Engine 9.1 HP Rehlko KD440 OHV
Net Weight 489.00 lbs.
Shipping Weight 554.00 lbs.
Length 41.00 in.
Width 23.00 in.
Height 47.00 in.
Cfm @ 16.4 @
PSI 90
Cfm @ Psi* 15.7 @ 175
Output Comp. On-Load Off-Load Horsepower/Engine 3000 watts 2300 watts 3000 watts 9.1 HP Kohler KD440 OHV
Dimensions (L x W x H) 41x23x47in.

Options

Options - must be ordered with unit and cannot be added later.

  • IX-0001 Vibration Isolator Pads

    Isolators protect the unit from vibration during use; recommended for models that are mounted in service truck applications

  • AX-0070 Battery Tray, Box and 2-Foot of Cables

    Attaches to engine side of unit

  • AX-0016 Battery, Battery Tray, Box and 2-Foot Cables

    Attaches to engine side of unit

Resources

Limited warranties

Engine 3 years

Manufacturer information: Mi-T-M
