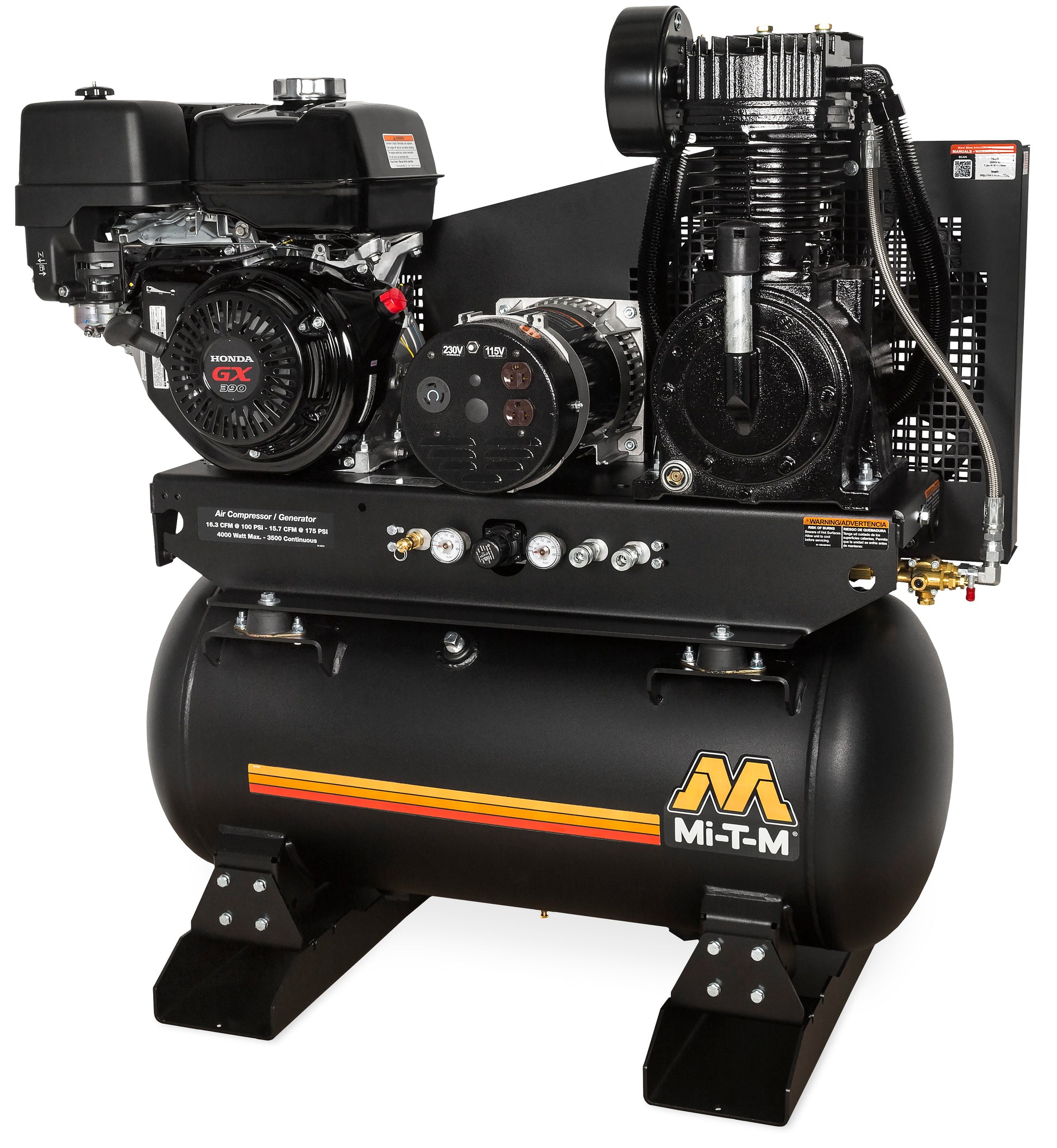

• Mi-T-M AG2-SH13-30M 90 PSI air compressor generator
1 1

30-Gallon Two Stage Gasoline Combination - AG2-SH13-30M

30-Gallon Two Stage Gasoline Combination - AG2-SH13-30M

$4,218.75
$4,218.75
Sale Sold out
View full details

Product information & specifications

The Mi-T-M AG2-SH13-30M is an industrial air compressor generator model configured with 90, 389cc Honda GX390 OHV, 389cc Honda GX390 OHV+. This dealer listing combines model-specific specifications and manufacturer documentation.

This air compressor/generator combination is perfect for remodelers, contractors and professionals. With 15.7 CFM and up to 4000 watts, they deliver premium power every time.

Compressor Pump
Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator

Generator
Brushless alternator · Total harmonic distortion (THD) less than 6% · 100% copper windings · (2) NEMA 5-20R 120V, 20A receptacles and (1) NEMA L6-20R 240V, 20A receptacles

Frame
Powder coated ASME receiver tank · 3/16-inch base plate to reduce vibration · Powder coated two-piece belt guard · Removable base plate offers flexible installation

Components
Regulator and two gauges for tank and outlet pressure · 150-PSI maximum rated regulator · Manual drain valve for proper maintenance · 16½-inch fly wheel · Quality pilot valve unloader

Note: All gasoline models sold in California are required to have a CARB compliant engine. Consult factory.
49 state engine. Not for sale in California.

Specifications

CFM @ PSI 15.7 @ 175
Alternator Wattage: Max. Output 4000 watts
Alternator Wattage: Cont. with Comp. On-Load 2300 watts
Alternator Wattage: Cont. with Comp. Off-Load 3500 watts
Displacement/ Engine 389cc Honda GX390 OHV
Net Weight 450.00 lbs.
Shipping Weight 550.00 lbs.
Length 40.00 in.
Width 24.50 in.
Height 45.00 in.
Cfm @ 16.4 @
PSI 90
Cfm @ Psi* 15.7 @ 175
Output Comp. On-Load Off-Load 4000 watts 2300 watts 3500 watts
Displacement / Engine 389cc Honda GX390 OHV+
Dimensions (L x W x H) 40x24.5x45in.

Options

Options - must be ordered with unit and cannot be added later.

  • IX-0001 Vibration Isolator Pads

    Isolators protect the unit from vibration during use; recommended for models that are mounted in service truck applications

  • AX-0063 Lifting Hook

    For easier portability

  • AX-0068 Idle Down

    When activated it automatically throttles down engine to conserve fuel, start/stop control set at 145 to 175-PSI

Resources

Limited warranties

Engine 3 years

Sales and compliance notes

  • Note: All gasoline models sold in California are required to have a CARB compliant engine. Consult factory.
  • 49-state engine. Not for sale in California.

Manufacturer information: Mi-T-M
