8-Gallon Single Stage Gasoline Combination - AG1-PH65-08M1

8-Gallon Single Stage Gasoline Combination - AG1-PH65-08M1

$2,964.58
$2,964.58
Sale Sold out
View full details

Product information & specifications

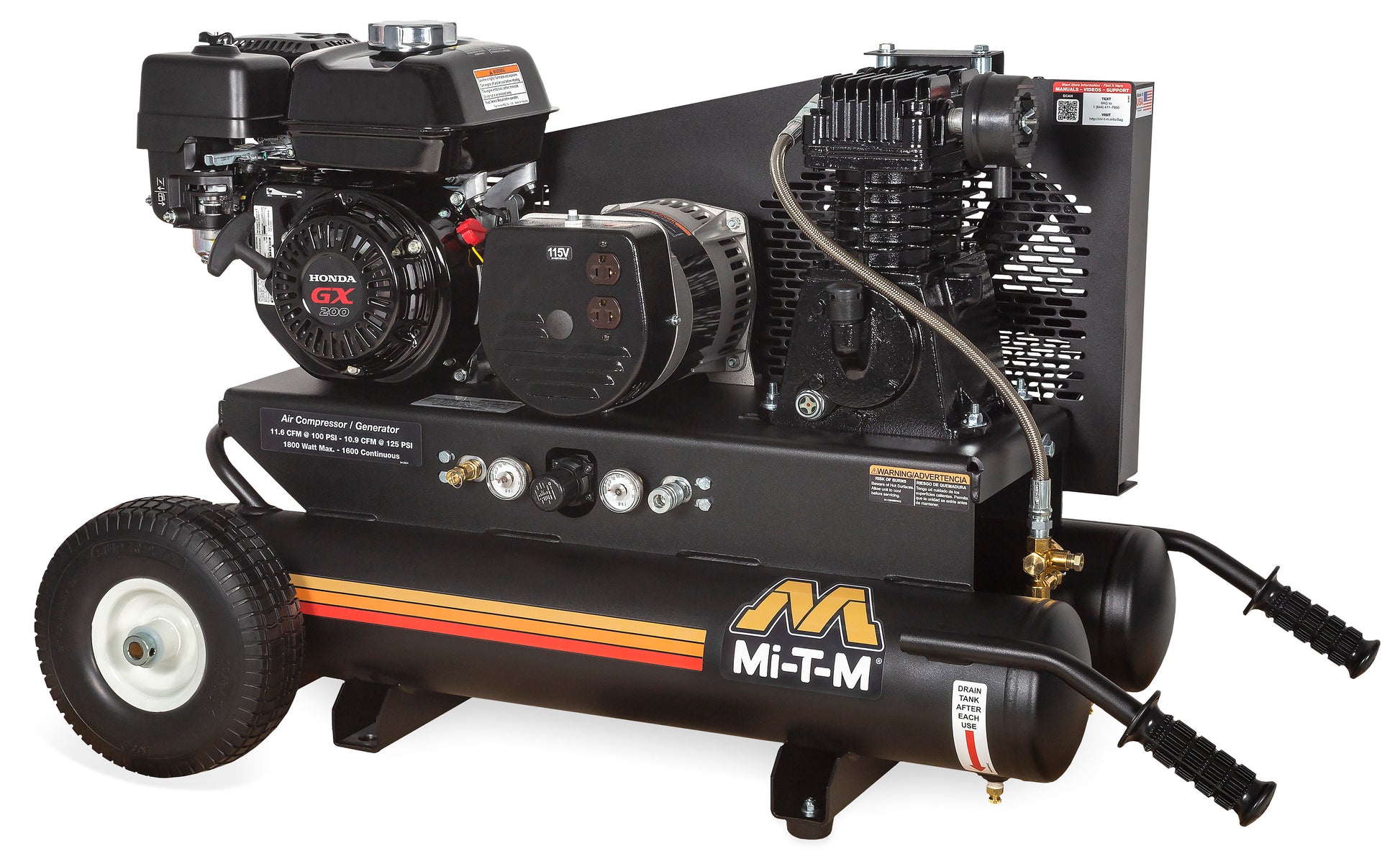

The Mi-T-M AG1-PH65-08M1 is an industrial air compressor generator model configured with 90 125, 196cc Honda GX200 OHV, 196cc Honda GX200 OHV+. This dealer listing combines model-specific specifications and manufacturer documentation.

Choose this gasoline air compressor and generator combination for unmatched performance, supplying air power and electricity to any jobsite.

Compressor Pump
Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator

Generator
Brushless alternator · Total harmonic distortion (THD) less than 6% · 100% copper windings · (2) NEMA 5-20R 120V, 20A receptacles

Frame
Powder coated twin tank receivers · 3/16-inch base plate to reduce vibration · Powder coated two-piece belt guard · 10-inch flat-free tires

Components
Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 12 or 16½-inch fly wheel · Quality pilot valve unloader

Note: All gasoline models sold in California are required to have a CARB compliant engine. Consult factory.
49 state engine. Not for sale in California.

Specifications

CFM @ PSI 10.9 @ 125
Alternator Wattage: Max. Output 1800 watts
Alternator Wattage: Cont. with Comp. On-Load 600 watts
Alternator Wattage: Cont. with Comp. Off-Load 1600 watts
Displacement/ Engine 196cc Honda GX200 OHV
Net Weight 207.00 lbs.
Shipping Weight 257.00 lbs.
Length 44.50 in.
Width 26.00 in.
Height 27.50 in.
Cfm @ 11.9 @ 10.9 @
PSI 90 125
Output Comp. On-Load Off-Load 1800 watts 600 watts 1600 watts
Displacement / Engine 196cc Honda GX200 OHV+
Dimensions (L x W x H) 44.5x26x27.5in.

Options

Options - must be ordered with unit and cannot be added later.

  • No options

Resources

Limited warranties

Engine 3 years

Sales and compliance notes

  • Note: All gasoline models sold in California are required to have a CARB compliant engine. Consult factory.
  • 49-state engine. Not for sale in California.

Manufacturer information: Mi-T-M
