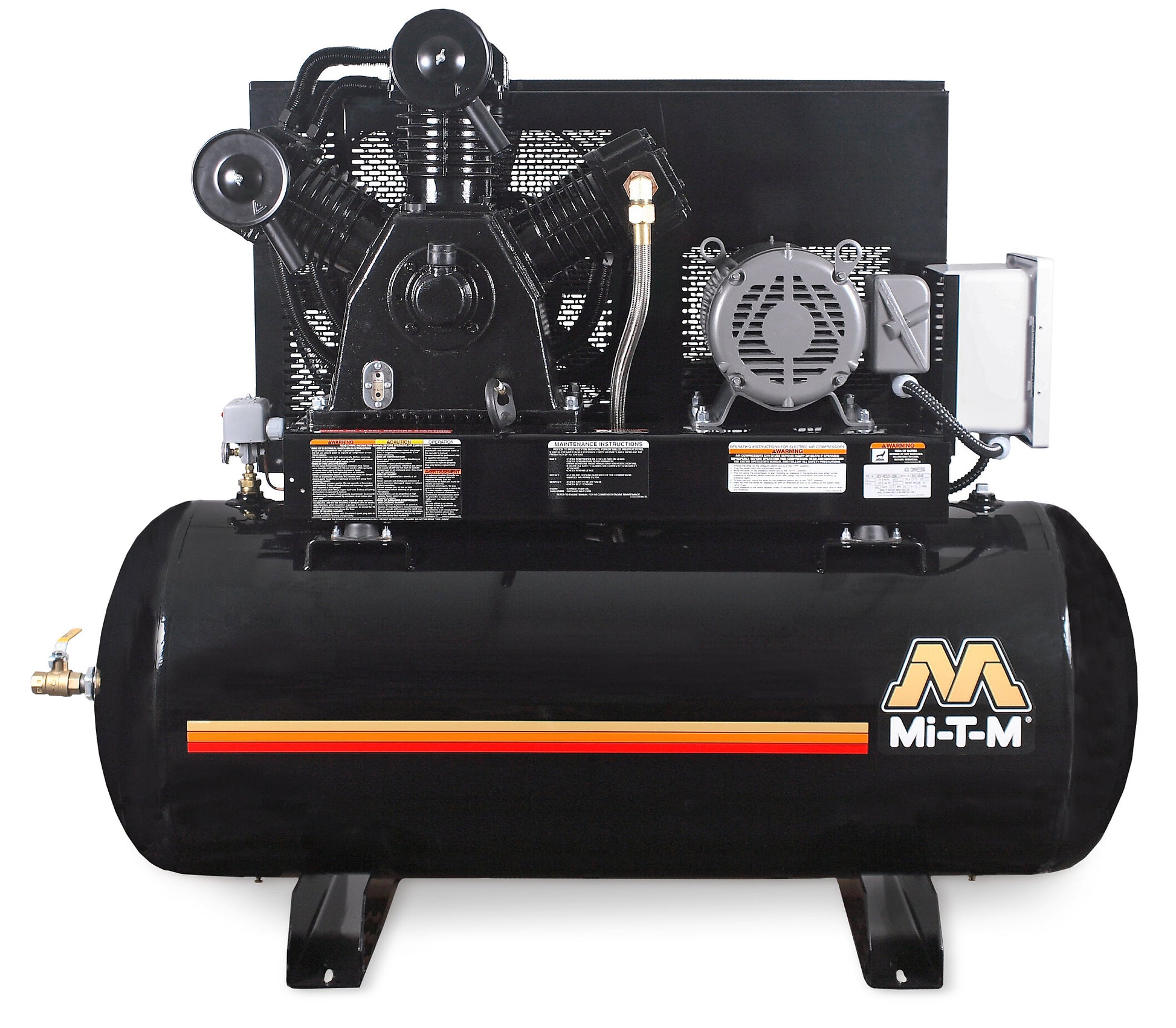

• Mi-T-M AES-20315-120H air compressor
1 1

AES Series 15.0 HP Simplex Horizontal - 120-Gallon

AES Series 15.0 HP Simplex Horizontal - 120-Gallon

$8,372.22
$8,372.22
Sale Sold out
View full details

Product information & specifications

The Mi-T-M AES-20315-120H is an industrial air compressor model configured with 776. This dealer listing combines model-specific specifications and manufacturer documentation.

AES Series – 15.0 HP Simplex Horizontal

These powerful 120-gallon air compressors are designed with productivity and efficiency in mind. Equip workshops, service bays and more.

Compressor Pump
Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil lever sight indicator

Motor
Industrial low RPM motor · Magnetic start for thermal overload protection

Frame
Powder coated ASME receiver tank · 3/16-inch base plate to reduce vibration · Powder coated two-piece belt guard · Removable base plate offers flexible installation

Components
ASME safety valves · Tank pressure gauge · Hour meter · Large fly wheel · Intake filter/silencer · Tank shut-off valve · Start/stop control set at 145 to 175-PSI

Models Available
AES-20315-120H    200V, 3Ø, 44.0A    1178 lb. ship wt./1028 lb. net wt.
AES-23315-120H    230V, 3Ø, 38.0A    1163 lb. ship wt./1013 lb. net wt.
AES-46315-120H    460V, 3Ø, 19.0A    1163 lb. ship wt./1013 lb. net wt.

Specifications

CFM @ PSI 46.5 @ 175
Pump RPM 776
Tank Size 120-gallon
Bolt Down (LxW) 34.5 x 23.5 in.
Net Weight 0.00 lbs.
Shipping Weight 0.00 lbs.
Length 74.00 in.
Width 26.50 in.
Height 58.00 in.
Cfm @ 46.5 @
Psi Horsepower/Motor 175 15.0 HP, 200V, 3Ø, 44.0A
Pump 776
Dimensions (Lxwxh) Bolt Down (Lxw) 74x26.5x58in. 34.5x23.5in.

Options

Options - must be ordered with unit and cannot be added later.

  • IX-0001 Vibration Isolator Pads

    Isolators protect the unit from vibration during use; recommended for models that are mounted in service truck applications

  • IX-0004 After Cooler

    Removes up to 65% of the moisture from discharged compressor air and drops the temperature within 10° of ambient

  • IX-0006 Electric Tank Drain

    Automatically drains liquid from compressor tank

  • IX-0032 Pneumatic Tank Drain

    Automatically drains liquid from compressor tank

  • IX-0064 Low Oil Monitor

    Low oil sensor does not allow unit to start when oil levels fall below an adequate level

  • IX-0065 Low Oil Monitor

    Low oil sensor does not allow unit to start when oil levels fall below an adequate level

  • IX-0066 Low Oil Monitor

    Low oil sensor does not allow unit to start when oil levels fall below an adequate level

Resources

Limited warranties

Electric Motor 1 year

Manufacturer information: Mi-T-M
