ADS M Series 10.0 HP Simplex Horizontal - 120-Gallon
ADS M Series 10.0 HP Simplex Horizontal - 120-Gallon
Couldn't load pickup availability
Product information & specifications

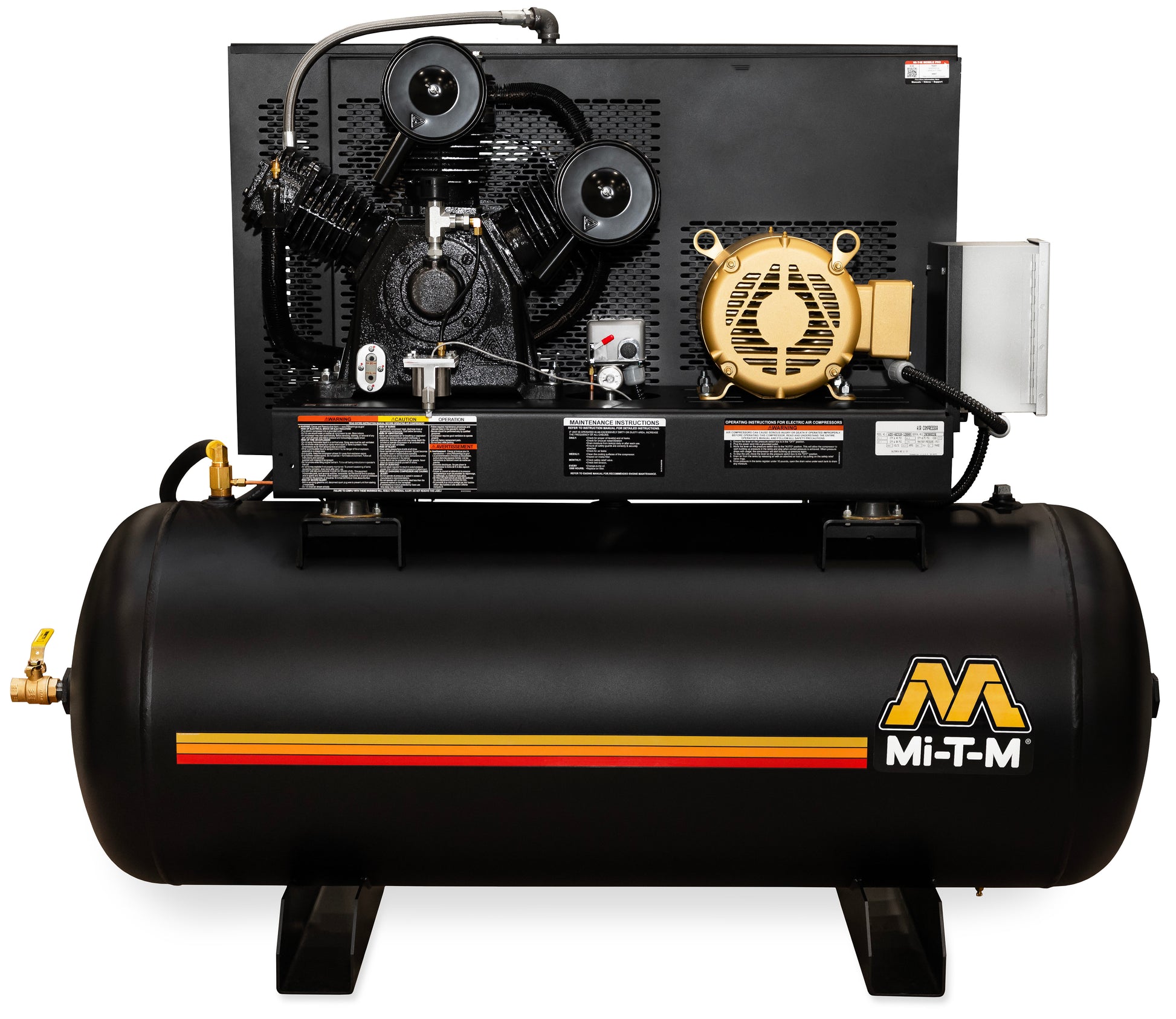

The Mi-T-M ADS-23110-120HM is an industrial air compressor model configured with 990. This dealer listing combines model-specific specifications and manufacturer documentation.
ADS M Series – 10.0 HP Simplex Horizontal
The M Series air compressors offer several motor configurations and maximum air power, elevating any workspace.
Compressor Pump
Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil lever sight indicator
Motor
Industrial low RPM motor · Magnetic start for thermal overload protection
Frame
Powder coated ASME receiver tank · 3/16-inch base plate to reduce vibration · Powder coated two-piece belt guard · Removable base plate offers flexible installation
Components
ASME safety valves · Tank pressure gauge · Hour meter · Large fly wheel · Intake filter/silencer · Tank shut-off valve · Start/stop control set at 145 to 175-PSI
Models Available
ADS-23110-120HM 230V, 1Ø, 39.0A 1016 lb. ship wt./866 lb. net wt.
ADS-20310-120HM 200V, 3Ø, 30.8A 996 lb. ship wt./846 lb. net wt.
ADS-23310-120HM 230V, 3Ø, 26.8A 986 lb. ship wt./836 lb. net wt.
ADS-46310-120HM 460V, 3Ø, 13.4A 986 lb. ship wt./836 lb. net wt.
Specifications
| CFM @ PSI | 34.2 @ 175 |
|---|---|
| Pump RPM | 990 |
| Tank Size | 120-gallon |
| Bolt Down (LxW) | 34.5 x 23.5 in. |
| Net Weight | 0.00 lbs. |
| Shipping Weight | 0.00 lbs. |
| Length | 74.00 in. |
| Width | 26.50 in. |
| Height | 58.00 in. |
| Cfm @ | 34.2 @ |
| Psi Horsepower/Motor | 175 10.0 HP, 230V, 1Ø, 39.0A |
| Pump | 990 |
| Dimensions (Lxwxh) Bolt Down (Lxw) | 74x26.5x58in. 34.5x23.5in. |
Options
Options - must be ordered with unit and cannot be added later.
- No options
Resources
Limited warranties
| Electric Motor | 1 year |
|---|
Manufacturer information: Mi-T-M
