ACS Series 7.5 HP Simplex Vertical - 80-Gallon

ACS Series 7.5 HP Simplex Vertical - 80-Gallon

$5,411.81
$5,411.81
Sale Sold out
View full details

Product information & specifications

The Mi-T-M ACS-23175-80V is an industrial air compressor model. This dealer listing combines model-specific specifications and manufacturer documentation.

ACS Series – 7.5 HP Simplex Vertical

These powerful 80-gallon air compressors are designed with productivity and efficiency in mind. Equip workshops, service bays and more.

Compressor Pump
Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil lever sight indicator

Motor
Industrial low RPM motor · Magnetic start for thermal overload protection

Frame
Powder coated ASME receiver tank · 3/16-inch base plate to reduce vibration · Powder coated two-piece belt guard · Removable base plate offers flexible installation

Components
ASME safety valves · Tank pressure gauge · Hour meter · Large fly wheel · Intake filter/silencer · Tank shut-off valve · Start/stop control set at 145 to 175-PSI

Models Available
ACS-23175-80V    230V, 1Ø, 31.0A    711 lb. ship wt./604 lb. net wt.
ACS-20375-80V    200V, 3Ø, 23.0A    696 lb. ship wt./589 lb. net wt.
ACS-23375-80V    230V, 3Ø, 20.0A    695 lb. ship wt./588 lb. net wt.
ACS-46375-80V    460V, 3Ø, 10.0A    695 lb. ship wt./588 lb. net wt.

Note: All vertical models are shipped in two separate pieces. Assembly is required.

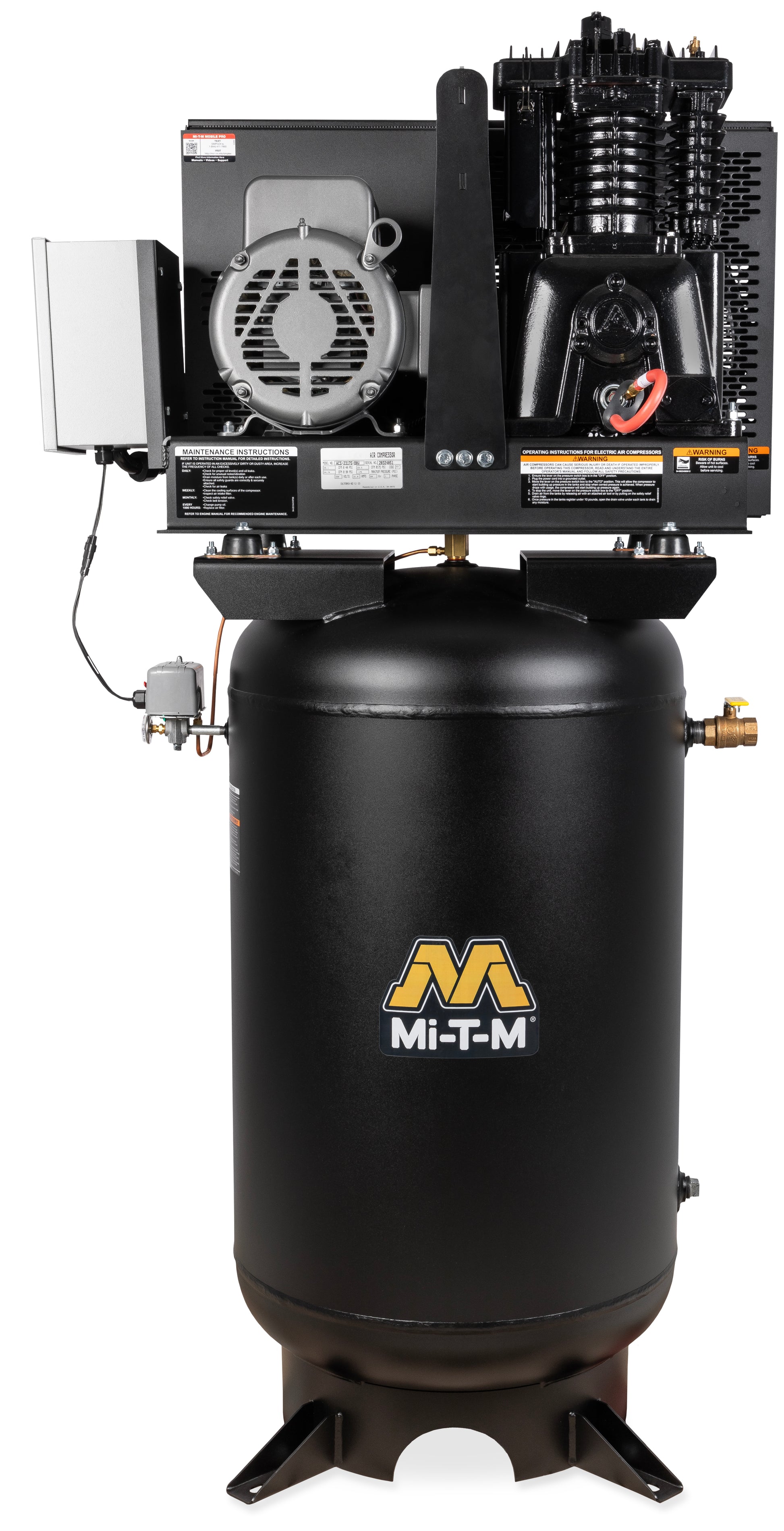

Photo shown with pre-assembled option, IX-0070

Specifications

CFM @ PSI 23.5 @ 175
Pump RPM 1250
Tank Size 80-gallon
Bolt Down (LxW) 15.63 x 15.63 in.
Net Weight 0.00 lbs.
Shipping Weight 0.00 lbs.
Length 38.50 in.
Width 25.00 in.
Height 73.00 in.
Psi Horsepower/Motor ACS-23175-80V
Dimensions (Lxwxh) Bolt Down (Lxw) with Globally

Options

Options - must be ordered with unit and cannot be added later.

  • IX-0001 Vibration Isolator Pads

    Isolators protect the unit from vibration during use; recommended for models that are mounted in service truck applications

  • IX-0006 Electric Tank Drain

    Automatically drains liquid from compressor tank

  • IX-0051 Pneumatic Tank Drain

    Automatically drains liquid from compressor tank

  • IX-0061 Low Oil Monitor

    Low oil sensor does not allow unit to start when oil levels fall below an adequate level

  • IX-0062 Low Oil Monitor

    Low oil sensor does not allow unit to start when oil levels fall below an adequate level

  • IX-0063 Low Oil Monitor

    Low oil sensor does not allow unit to start when oil levels fall below an adequate level

  • IX-0068 Pneumatic Tank Drain

    Automatically drains liquid from compressor tank; you must also have IX-0069 after cooler option

  • IX-0069 After Cooler

    Removes up to 65% of the moisture from discharged compressed air and drops the temperature within 10° of ambient

  • IX-0070 Unit Shipped Pre-Assembled

    Compressor is shipped as a complete unit, no assembly required

Resources

Limited warranties

Electric Motor 1 year
