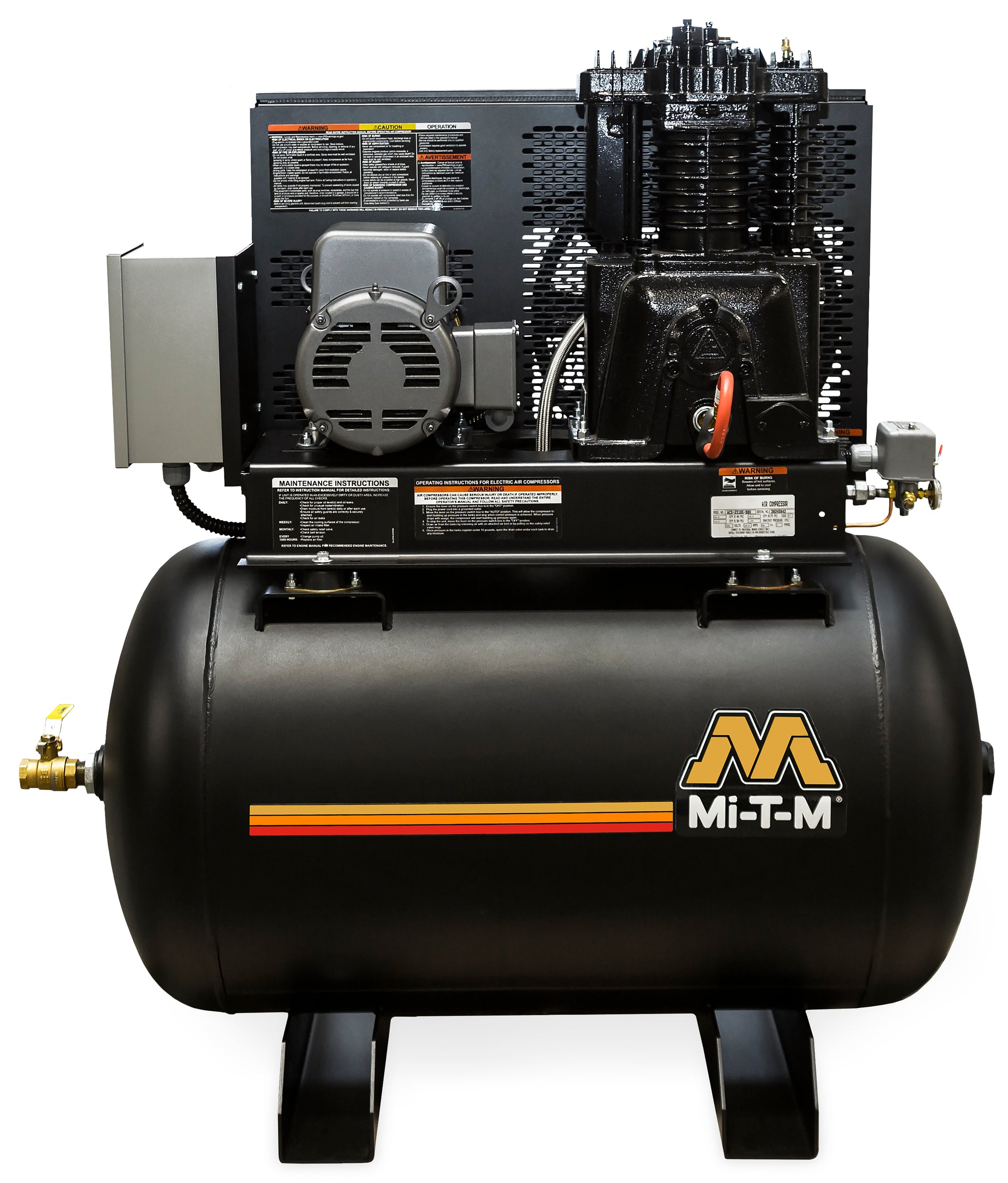

• Mi-T-M ACS-23175-80H air compressor
1 1

ACS Series 7.5 HP Simplex Horizontal - 80-Gallon

ACS Series 7.5 HP Simplex Horizontal - 80-Gallon

$5,416.67
$5,416.67
Sale Sold out
View full details

Product information & specifications

The Mi-T-M ACS-23175-80H is an industrial air compressor model configured with 1250. This dealer listing combines model-specific specifications and manufacturer documentation.

ACS Series – 7.5 HP Simplex Horizontal

These powerful 80-gallon air compressors are designed with productivity and efficiency in mind. Equip workshops, service bays and more.

Compressor Pump
Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil lever sight indicator

Motor
Industrial low RPM motor · Magnetic start for thermal overload protection

Frame
Powder coated ASME receiver tank · 3/16-inch base plate to reduce vibration · Powder coated two-piece belt guard · Removable base plate offers flexible installation

Components
ASME safety valves · Tank pressure gauge · Hour meter · Large fly wheel · Intake filter/silencer · Tank shut-off valve · Start/stop control set at 145 to 175-PSI

Models Available
ACS-23175-80H    230V, 1Ø, 31.0A    678 lb. ship wt./574 lb. net wt.
ACS-20375-80H    200V, 3Ø, 23.0A    649 lb. ship wt./545 lb. net wt.
ACS-23375-80H    230V, 3Ø, 20.0A    638 lb. ship wt./534 lb. net wt.
ACS-46375-80H    460V, 3Ø, 10.0A    638 lb. ship wt./534 lb. net wt.

Specifications

CFM @ PSI 23.5 @ 175
Pump RPM 1250
Tank Size 80-gallon
Bolt Down (LxW) 20.75 x 23.5 in.
Net Weight 0.00 lbs.
Shipping Weight 0.00 lbs.
Length 52.00 in.
Width 26.50 in.
Height 53.00 in.
Cfm @ 23.5 @
Psi Horsepower/Motor 175 7.5 HP, 230V, 1Ø, 31.0A
Pump 1250
Dimensions (Lxwxh) Bolt Down (Lxw) 52x26.5x53in. 20.75x23.5in.

Options

Options - must be ordered with unit and cannot be added later.

  • IX-0001 Vibration Isolator Pads

    Isolators protect the unit from vibration during use; recommended for models that are mounted in service truck applications

  • IX-0006 Electric Tank Drain

    Automatically drains liquid from compressor tank

  • IX-0052 After Cooler

    Removes up to 65% of the moisture from discharged compressor air and drops the temperature within 10° of ambient

  • IX-0056 Pneumatic Tank Drain

    Automatically drains liquid from compressor tank; unit cannot include an after cooler

  • IX-0057 Pneumatic Tank Drain

    Automatically drains liquid from compressor tank; you must also have IX-0052 after cooler option

  • IX-0061 Low Oil Monitor

    Low oil sensor does not allow unit to start when oil levels fall below an adequate level

  • IX-0062 Low Oil Monitor

    Low oil sensor does not allow unit to start when oil levels fall below an adequate level

  • IX-0063 Low Oil Monitor

    Low oil sensor does not allow unit to start when oil levels fall below an adequate level

Resources

Limited warranties

Electric Motor 1 year

Manufacturer information: Mi-T-M
