ACS M Series 5.0 HP Simplex Vertical - 80-Gallon

The Mi-T-M ACS-23105-80VM is an industrial air compressor model configured with 860. This dealer listing combines model-specific specifications and manufacturer documentation.

ACS M Series – 5.0 HP Simplex Vertical

The M Series air compressors offer several motor configurations and maximum air power, elevating any workspace.

Compressor Pump
Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil lever sight indicator

Motor
Industrial low RPM motor · Magnetic start for thermal overload protection

Frame
Powder coated ASME receiver tank · 3/16-inch base plate to reduce vibration · Powder coated two-piece belt guard · Removable base plate offers flexible installation

Components
ASME safety valves · Tank pressure gauge · Hour meter · Large fly wheel · Intake filter/silencer · Tank shut-off valve · Start/stop control set at 145 to 175-PSI

Models Available
ACS-23105-80VM    230V, 1Ø, 23.0A    696 lb. ship wt./589 lb. net wt.
ACS-20305-80VM    200V, 3Ø, 16.1A    695 lb. ship wt./588 lb. net wt.
ACS-23305-80VM    230V, 3Ø, 13.8A    695 lb. ship wt./588 lb. net wt.
ACS-46305-80VM    460V, 3Ø, 6.9A       695 lb. ship wt./588 lb. net wt.

Note: All vertical models are shipped in two separate pieces. Assembly is required.

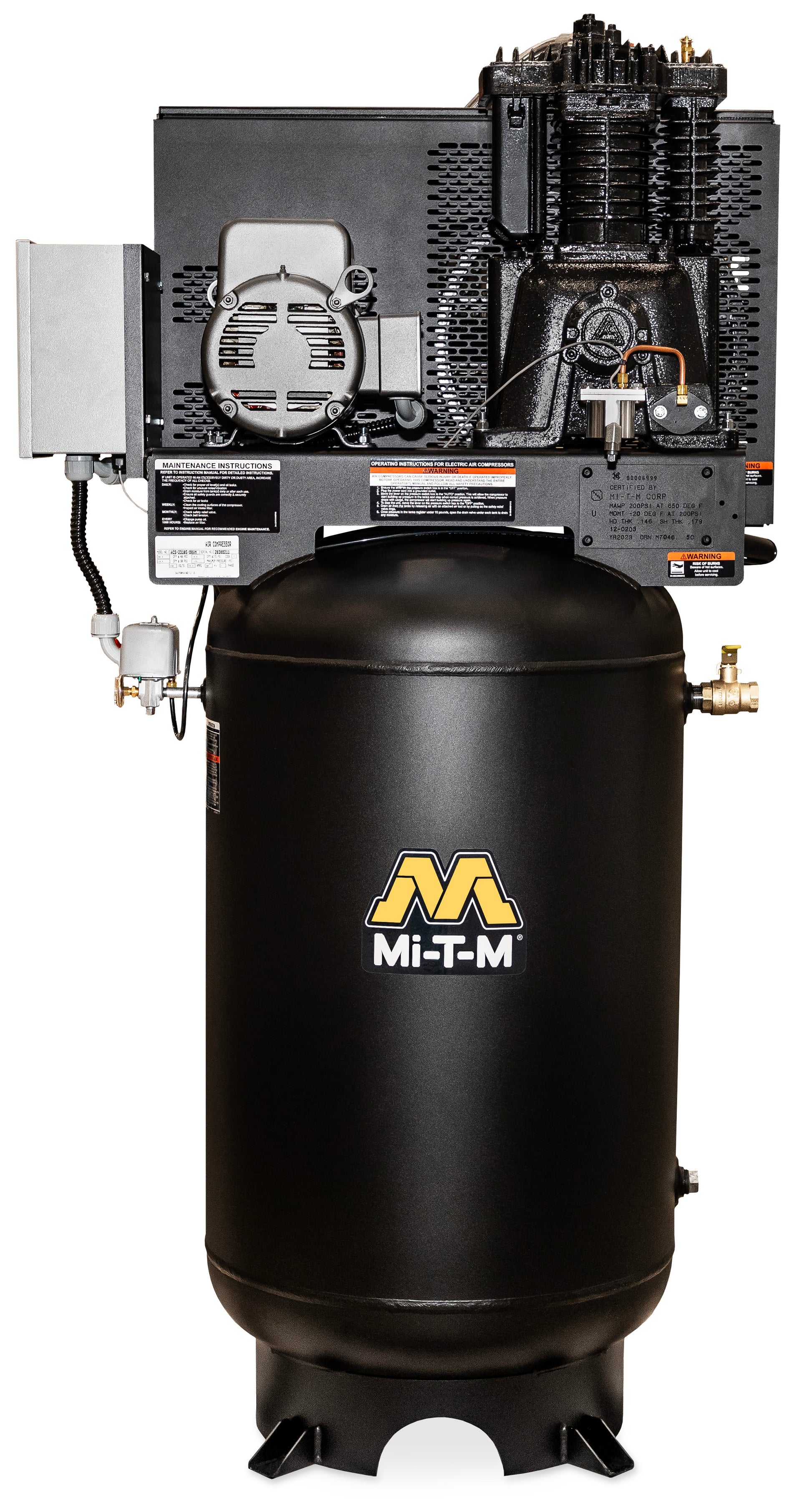

Photo shown with pre-assembled option, IX-0070

Specifications

Options

Options - must be ordered with unit and cannot be added later.

• IX-0070 Unit Shipped Pre-Assembled

  Compressor is shipped as a complete unit, no assembly required

Resources

• Download Catalog
• View Product Sheet
• View Product Manual

Limited warranties

Manufacturer information: Mi-T-M
