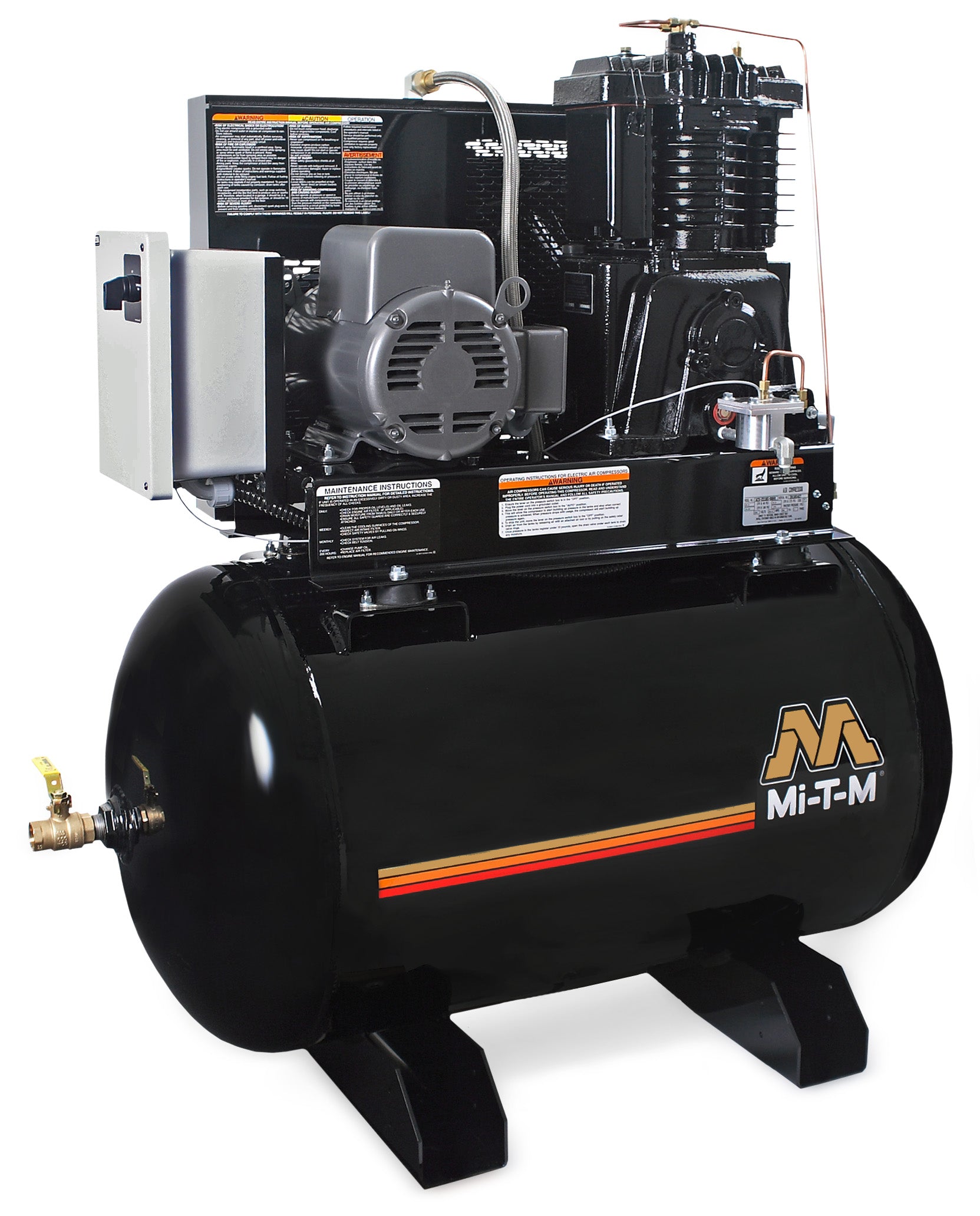

ACS M Series 5.0 HP Simplex Horizontal - 80-Gallon
ACS M Series 5.0 HP Simplex Horizontal - 80-Gallon
Couldn't load pickup availability
Product information & specifications
The Mi-T-M ACS-23105-80HM is an industrial air compressor model configured with 860. This dealer listing combines model-specific specifications and manufacturer documentation.
ACS M Series – 5.0 HP Simplex Horizontal
The M Series air compressors offer several motor configurations and maximum air power, elevating any workspace.
Compressor Pump
Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil lever sight indicator
Motor
Industrial low RPM motor · Magnetic start for thermal overload protection
Frame
Powder coated ASME receiver tank · 3/16-inch base plate to reduce vibration · Powder coated two-piece belt guard · Removable base plate offers flexible installation
Components
ASME safety valves · Tank pressure gauge · Hour meter · Large fly wheel · Intake filter/silencer · Tank shut-off valve · Start/stop control set at 145 to 175-PSI
Models Available
ACS-23105-80HM 230V, 1Ø, 23.0A 690 lb. ship wt./586 lb. net wt.
ACS-20305-80HM 200V, 3Ø, 16.1A 660 lb. ship wt./556 lb. net wt.
ACS-23305-80HM 230V, 3Ø, 13.8A 646 lb. ship wt./542 lb. net wt.
ACS-46305-80HM 460V, 3Ø, 6.9A 646 lb. ship wt./542 lb. net wt.
Specifications
| CFM @ PSI | 18.0 @ 175 |
|---|---|
| Pump RPM | 860 |
| Tank Size | 80-gallon |
| Bolt Down (LxW) | 20.75 x 23.5 in. |
| Net Weight | 0.00 lbs. |
| Shipping Weight | 0.00 lbs. |
| Length | 52.00 in. |
| Width | 26.50 in. |
| Height | 53.00 in. |
| Cfm @ | 18.0 @ |
| Psi Horsepower/Motor | 175 5.0 HP, 230V, 1Ø, 23.0A |
| Pump | 860 |
| Dimensions (Lxwxh) Bolt Down (Lxw) | 52x26.5x53in. 20.75x23.5in. |
Options
Options - must be ordered with unit and cannot be added later.
- No options
Resources
Limited warranties
| Electric Motor | 1 year |
|---|
Manufacturer information: Mi-T-M
