30-Gallon Two Stage Diesel - ABS-9KD-30H
30-Gallon Two Stage Diesel - ABS-9KD-30H
Couldn't load pickup availability
Product information & specifications

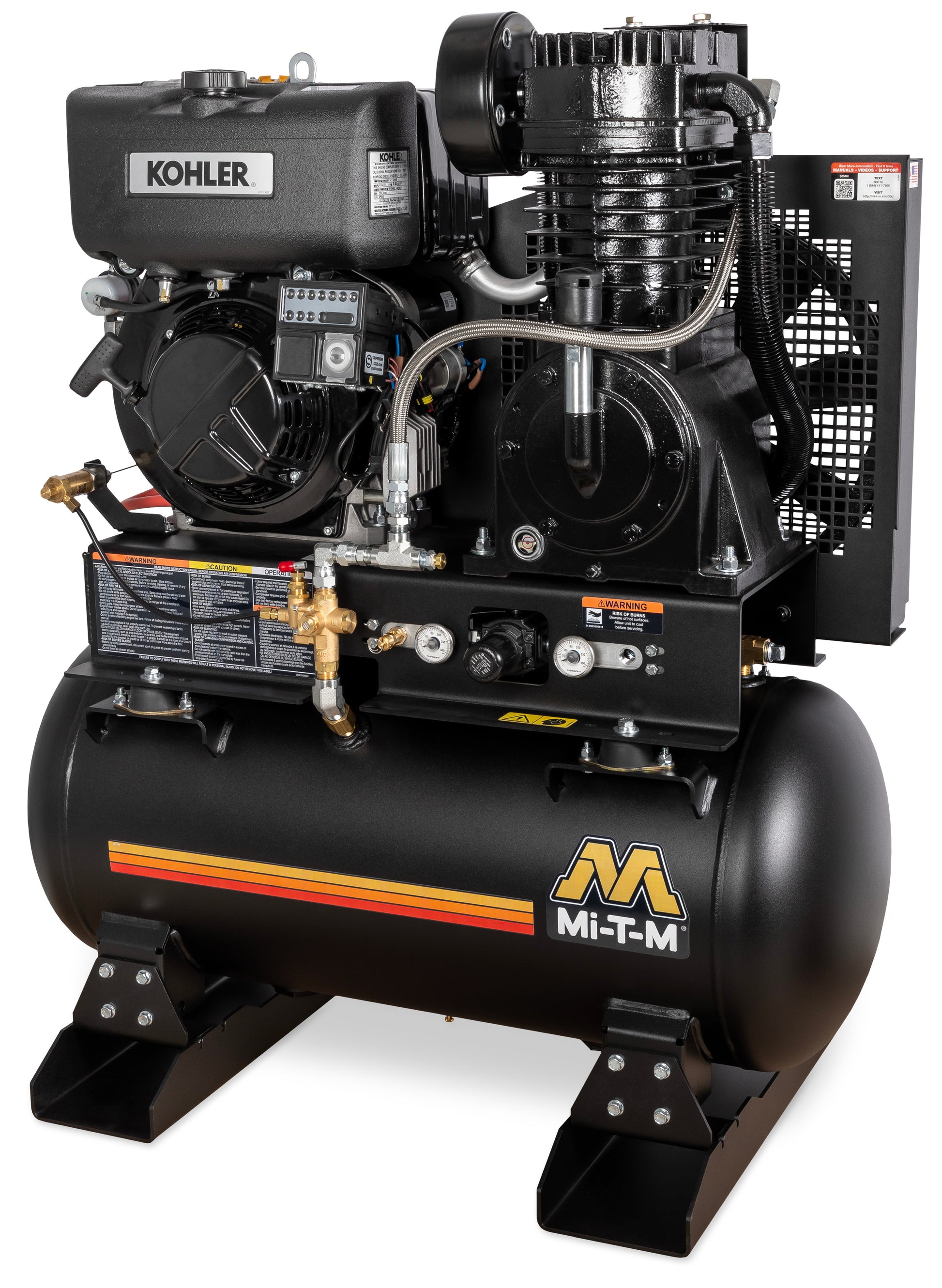

The Mi-T-M ABS-9KD-30H is an industrial air compressor model. This dealer listing combines model-specific specifications and manufacturer documentation.
The two-stage, 30-gallon diesel air compressor is known for consistent and reliable air power. It's perfect for industrial, automotive and service body applications.
Compressor Pump
Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator
Engine
Electric start – battery, box and cables not included · Glow plug equipped for easy starting in cold temperatures
Frame
Powder coated ASME receiver tank · 3/16-inch base plate to reduce vibration · Powder coated two-piece belt guard · Removable base plate offers flexible installation
Components
Regulator and two gauges for tank and outlet pressure · ASME safety valves · Tank drain valve · 1/2-inch port · Start/stop control set at 145 to 175-PSI
Equipped with 150-PSI maximum rated regulator.
Specifications
| CFM @ PSI | 29.0 @ 175 |
|---|---|
| Horsepower/Engine | 9.1 HP Kohler KD440 OHV |
| Engine Idle Control | Cable Throttle |
| Net Weight | 483.00 lbs. |
| Shipping Weight | 540.00 lbs. |
| Length | 38.00 in. |
| Width | 23.00 in. |
| Height | 46.50 in. |
| Cfm @ Psi* Horsepower/Engine | 29.0 @ 175 9.1 HP Kohler KD440 OHV |
| Dimensions (L x W x H) | 38x23x46.5in. |
Options
Options - must be ordered with unit and cannot be added later.
-
IX-0001 Vibration Isolator Pads
Isolators protect the unit from vibration during use; recommended for models that are mounted in service truck applications
-
AX-0079 Battery Box, Cables & Tray
Attaches to engine side of unit
Resources
Limited warranties
| Engine | 3 years |
|---|
Manufacturer information: Mi-T-M
