30-Gallon Two Stage Gasoline - ABS-14K-30H
30-Gallon Two Stage Gasoline - ABS-14K-30H
Couldn't load pickup availability
Product information & specifications

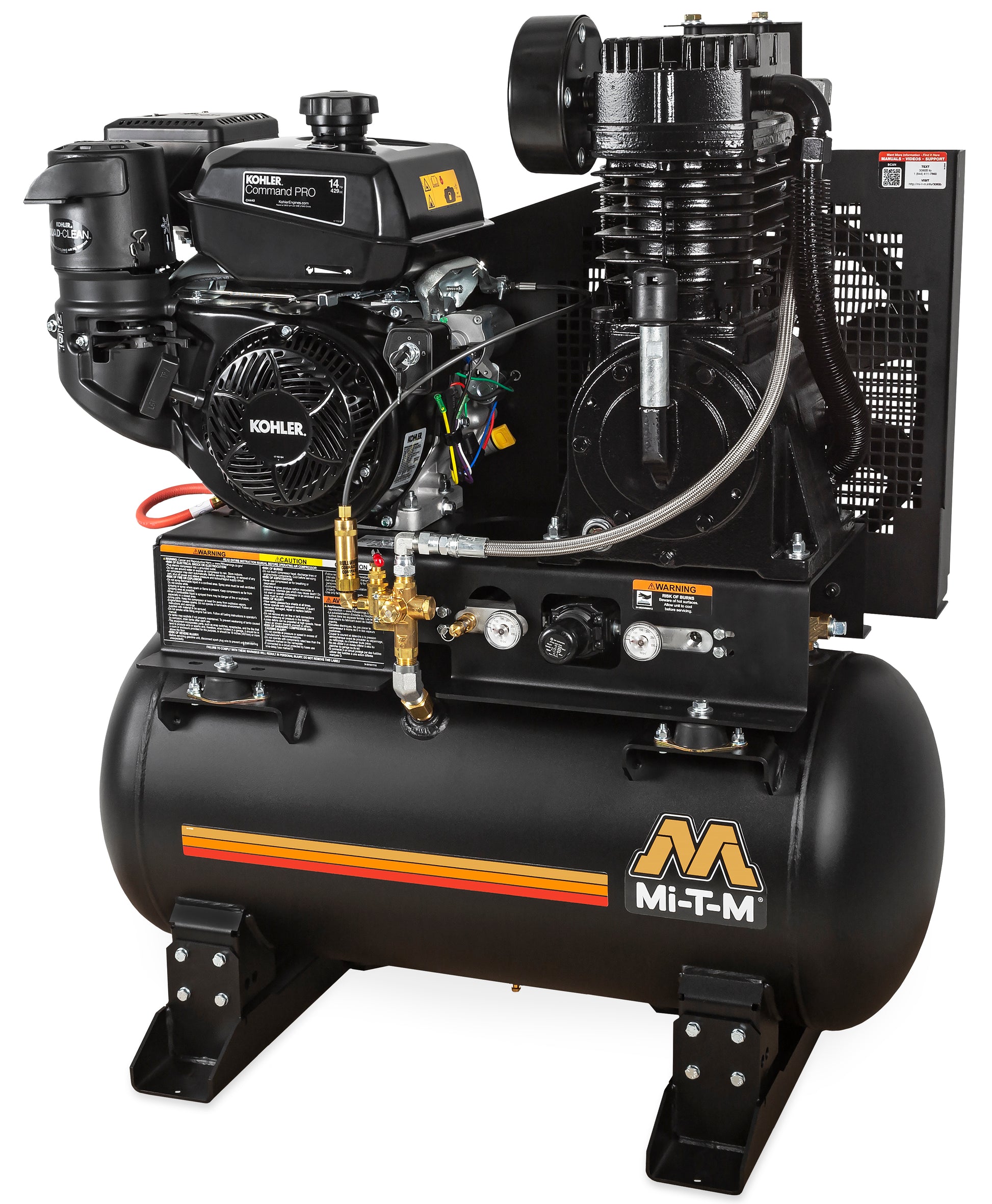

The Mi-T-M ABS-14K-30H is an industrial air compressor model configured with 429cc Kohler CH440 OHV. This dealer listing combines model-specific specifications and manufacturer documentation.
Designed with the ability to mount on trailers or service trucks, this air compressor delivers consistent power.
Compressor Pump
Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator
Engine
Electric start – battery and cables not included
Frame
Powder coated ASME receiver tank · 3/16-inch base plate to reduce vibration · Powder coated two-piece belt guard · Removable base plate offers flexible installation
Components
Regulator and two gauges for tank and outlet pressure · ASME safety valves · 16 1/2-inch fly wheel · Tank drain valve · 1/2-inch port · Service truck mount kit · Start/stop control set at 145 to 175-PSI
Equipped with 150-PSI maximum rated regulator.
Specifications
| CFM @ PSI | 29.0 @ 175 |
|---|---|
| Displacement/ Engine | 429cc Kohler CH440 OHV |
| Tank Size | 30-gallon |
| Engine Idle Control | Cable Throttle |
| Net Weight | 416.00 lbs. |
| Shipping Weight | 480.00 lbs. |
| Length | 38.00 in. |
| Width | 23.00 in. |
| Height | 46.00 in. |
| Cfm @ Psi* | 29.0 @ 175 |
| Displacement / Engine | 429cc Kohler CH440 OHV |
| Dimensions (L x W x H) | 38x23x46in. |
Options
Options - must be ordered with unit and cannot be added later.
-
AX-0017 Electric Start
For easy starting - sealed battery, tray, box and cables included
-
AX-0077 Battery Box and Tray
Attaches to engine side of unit
-
IX-0001 Vibration Isolator Pads
Isolators protect the unit from vibration during use; recommended for models that are mounted in service truck applications
Resources
Limited warranties
| Engine | 3 years |
|---|
Manufacturer information: Mi-T-M
