Base-Mount Two Stage Gasoline - ABS-13H-B
Base-Mount Two Stage Gasoline - ABS-13H-B
Couldn't load pickup availability
Product information & specifications

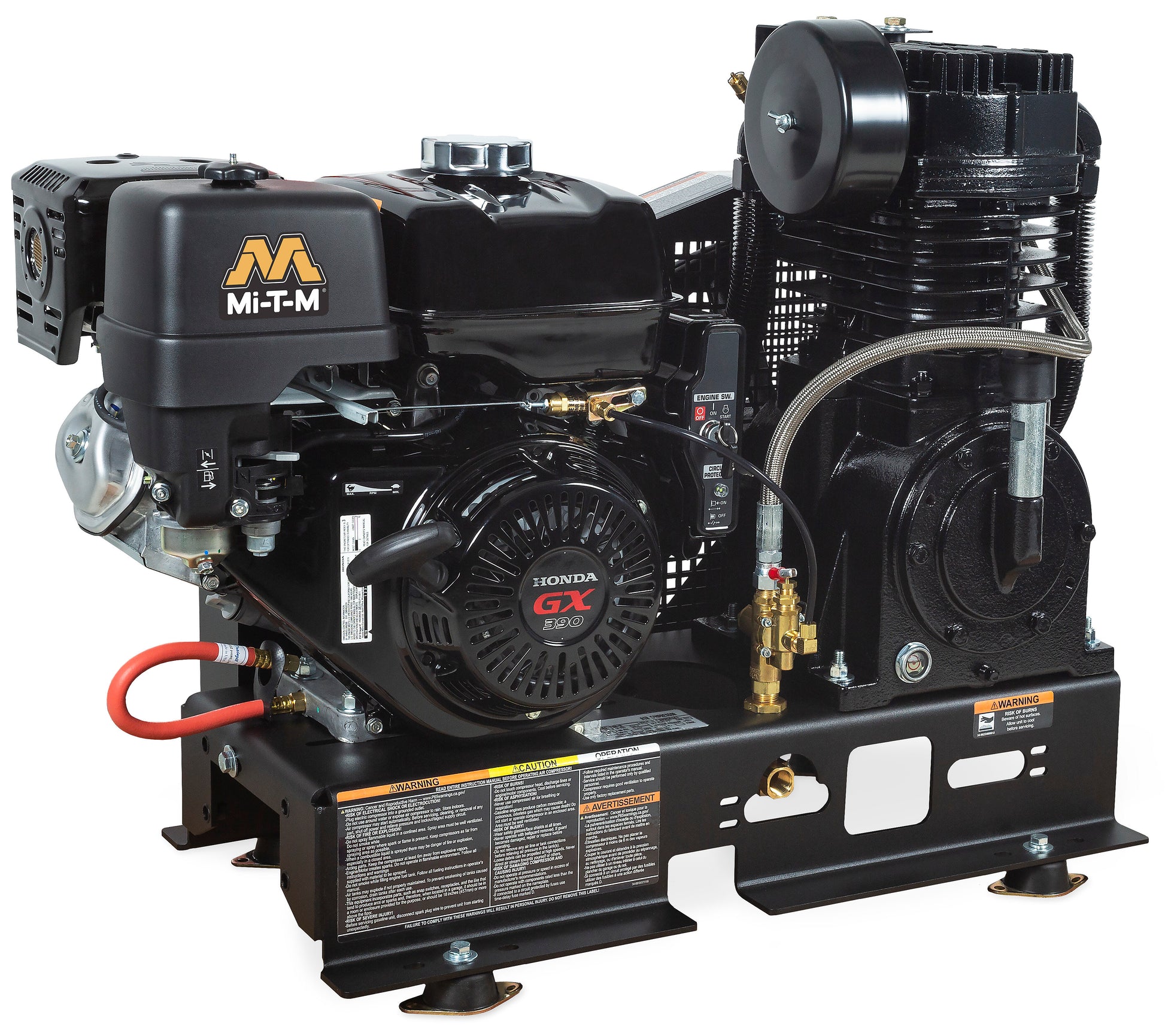

The Mi-T-M ABS-13H-B is an industrial air compressor model configured with 389cc Honda GX390 OHV. This dealer listing combines model-specific specifications and manufacturer documentation.
Designed with the ability to mount on trailers or service trucks, this air compressor delivers consistent power.
Compressor Pump
Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator
Engine
Electric start – battery and cables not included
Frame
3/16-inch base plate to reduce vibration · Powder coated two-piece belt guard · Removable base plate offers flexible installation
Components
Regulator and two gauges for tank and outlet pressure · ASME safety valves · 16 1/2-inch fly wheel · Tank drain valve · 1/2-inch port · Start/stop control set at 145 to 175-PSI
Equipped with 150-PSI maximum rated regulator.
Receiver tank required.
Specifications
| CFM @ PSI | 29.0 @ 175 |
|---|---|
| Displacement/ Engine | 389cc Honda GX390 OHV |
| Tank Size | Base-Mount |
| Engine Idle Control | Pneumatic |
| Net Weight | 215.00 lbs. |
| Shipping Weight | 279.00 lbs. |
| Length | 36.50 in. |
| Width | 19.00 in. |
| Height | 28.00 in. |
Options
Options - must be ordered with unit and cannot be added later.
-
AX-0090 Remote Start/Choke, Sealed Cable
7-foot wire extension for key switch
Resources
Limited warranties
| Engine | 3 years |
|---|
Manufacturer information: Mi-T-M
