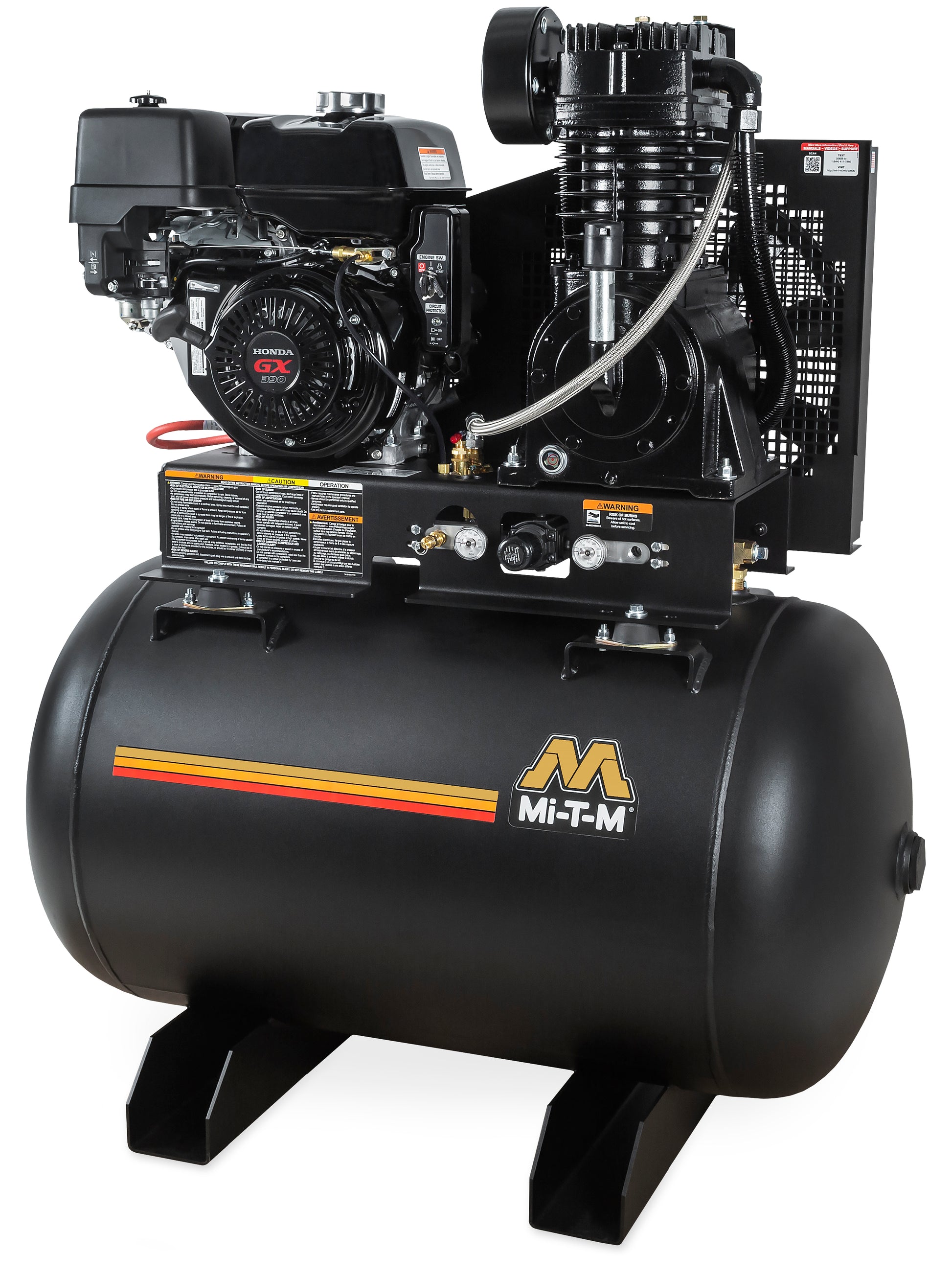

80-Gallon Two Stage Gasoline - ABS-13H-80H

The Mi-T-M ABS-13H-80H is an industrial air compressor model configured with 389cc Honda GX390 OHV. This dealer listing combines model-specific specifications and manufacturer documentation.

Designed with the ability to mount on trailers or service trucks, this air compressor delivers consistent power.

Compressor Pump
Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator

Engine
Electric start – battery and cables not included

Frame
Powder coated ASME receiver tank · 3/16-inch base plate to reduce vibration · Powder coated two-piece belt guard · Removable base plate offers flexible installation

Components
Regulator and two gauges for tank and outlet pressure · ASME safety valves · 16 1/2-inch fly wheel · Tank drain valve · 1/2-inch port · Service truck mount kit · Start/stop control set at 145 to 175-PSI

Equipped with 150-PSI maximum rated regulator.

Specifications

Options

Options - must be ordered with unit and cannot be added later.

• AX-0017 Electric Start

  For easy starting - sealed battery, tray, box and cables included

• AX-0077 Battery Box and Tray

  Attaches to engine side of unit

• IX-0001 Vibration Isolator Pads

  Isolators protect the unit from vibration during use; recommended for models that are mounted in service truck applications

• AX-0092 Remote Start/Choke, Sealed Cable

  7-foot wire extension for key switch

Resources

• Download Catalog
• View Product Sheet
• View Product Manual

Limited warranties

Manufacturer information: Mi-T-M
