• Heavy Duty Motor - HD Bearing Style with OE Wire Connectors and Mounting O-Rings - BM20052HD
1 1

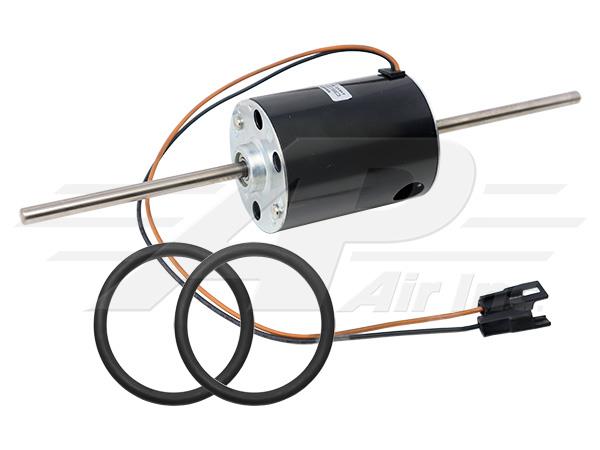

Heavy Duty Motor - HD Bearing Style with OE Wire Connectors and Mounting O-Rings

Heavy Duty Motor - HD Bearing Style with OE Wire Connectors and Mounting O-Rings

$103.40
$103.40
Sale Sold out
Shipping calculated at checkout.
View full details

Product information & specifications

OEM Part Numbers
John DeereAR82005, RE251028, RE25160
Item Information
With OE Wire Connectors and Mounting O-Rings
Replaces Bushing Style Motor With New HD Bearing Style Motor Can Use Standard Version - BM20052
Specifications
TYPE Double Shaft, Single Speed
SHAFT SIZE 3/8"
SHAFT LENGTH 5"
MOTOR DIAMETER 3 1/4"
MOTOR LENGTH 4 1/8"
OVERALL LENGTH 14 3/4"
ROTATION Reversible
NUMBER OF WIRES 2
VOLTAGE 12
STUD SPAN 2 1/2"

Compatible With

View compatible models and fitment notes (74 models)
John Deere Combine 1055
Early Series - Requires 1 Per Application Serial Number 017000 and Below, 3/8" Double Shaft 2 Wire Motor
John Deere Combine 1065 , 1068H , 1072 , 1075 , 1075H , 1085 , 1085H
Serial Number 017000 and Below, 3/8" Double Shaft 2 Wire Motor
John Deere Combine 4425
Early Series - Requires 1 Per Application Serial Number 01700 and Below, 3/8" Double Shaft 2 Wire Motor
John Deere Combine 484 , 6620 , 6622 , 7720 , 7722 , 8820
3/8" Double Shaft 2 Wire Motor
John Deere Forage Harvester 5720 , 5730 , 5820 , 5830
3/8" Double Shaft 2 Wire Motor
John Deere Sprayer 6100 , 6500 , 6600 , 6700
3/8" Double Shaft 2 Wire Motor
John Deere Swather 2320 , 2420 , 3430 , 3830
3/8" Double Shaft 2 Wire Motor
John Deere Tractor 1640 , 2040 , 2040S , 3040 , 3140
Early Series - Requires 1 Per Application
John Deere Tractor 2140 , 2350 , 2550 , 2750 , 2940 , 2950 , 4040S , 4050 , 4055 , 4240S , 4250 , 4255 , 4350 , 4450 , 4455 , 4555 , 4560 , 4650 , 4755 , 4760 , 4850 , 4955 , 4960 , 8440 , 8450 , 8640 , 8650 , 8850
All Serial Numbers
John Deere Tractor 4030 , 4040 , 4040 Euro , 4230 , 4240 , 4240 Euro , 4430 , 4440 , 4440 Euro , 4630 , 4640 , 4840 , 8430 4WD , 8630
Late Series - Requires 1 Per Application
