• Blower Motor - With Wheel - BM112603
1 1

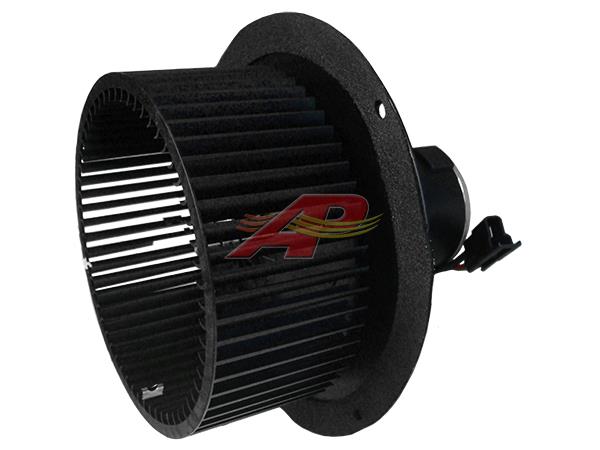

Blower Motor - With Wheel

Blower Motor - With Wheel

$214.86
$214.86
Sale Sold out
Shipping calculated at checkout.
View full details

Product information & specifications

OEM Part Numbers
John DeereRE162771, RE208336, RE300527
Item Information
With Blower Wheel
Specifications
TYPE Single Shaft, Single Speed
SHAFT SIZE 5/16"
SHAFT LENGTH 1 5/8"
MOTOR DIAMETER 3"
MOTOR LENGTH 4 1/4"
WHEEL DIAMETER 7"
WHEEL LENGTH 3"
ROTATION Counter Clockwise
NUMBER OF WIRES 2
VOLTAGE 12
STUD SPAN 2 5/16
FLANGE DIAMETER 9"

Compatible With

View compatible models and fitment notes (75 models)
John Deere Sprayer 4700
Serial Number 6052 and Above
John Deere Sprayer 4710 , 4720 , 4730 , 4830 , 4920 , 4930 , 4940
John Deere Tractor 2204 , 2204M , 7185J , 7195J , 7205J , 7210J , 7225J , 7630 , 7715 , 7720 , 7730 , 7815 , 7820 , 7830 , 7920 , 7930 , 8110T , 8120T , 8130 , 8210 , 8210T , 8220T , 8230 , 8230T , 8310T , 8320T , 8330 , 8330T , 8410T , 8420T , 8430 , 8430 MFWD , 8430T , 8520T , 8530 , 9100 , 9120 , 9200 , 9220 , 9230 , 9300 , 9300T , 9320 , 9320T , 9330 , 9400 , 9400T , 9420 , 9420T , 9430 , 9430T , 9520 , 9520T , 9530 , 9530T , 9620 , 9620T , 9630 , 9630T
All Serial Numbers
John Deere Tractor 8110 , 8120 , 8220 , 8310 , 8320 , 8410 , 8420 , 8520
Without Automatic Temperature Control
