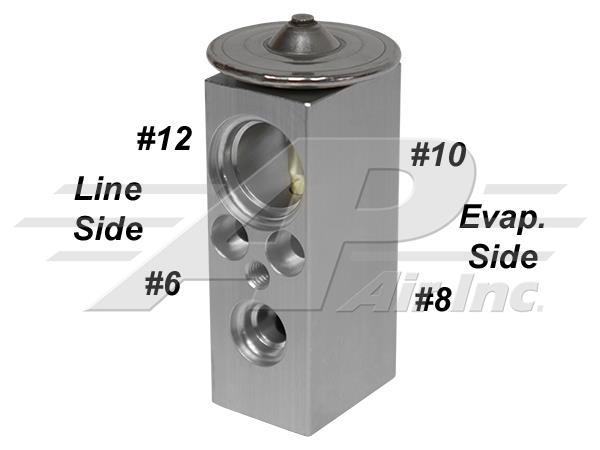

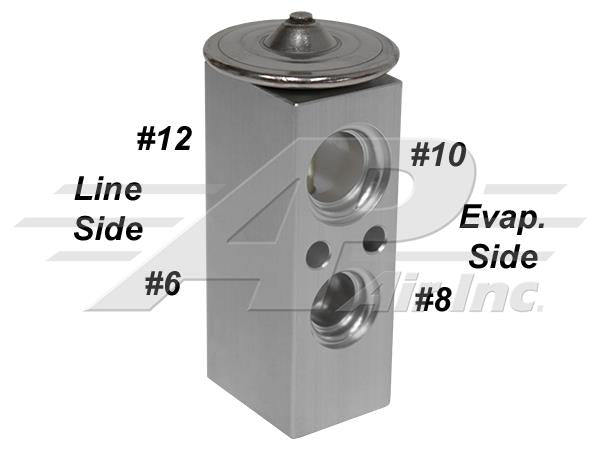

Expansion Valve

Expansion Valve

$41.63
$41.63
Sale Sold out
Shipping calculated at checkout.
View full details

Product information & specifications

OEM Part Numbers
John DeereAL160578, AL219020, AL225312, RE174764, RE283957, RE57575, SJ16323, SJ32588
Item Information
R12 and R134a Compatible
Specifications
TYPE O-Ring
LIQUID INLET #6, 3/8" O-Ring
LIQUID OUTLET TO EVAPORATOR #8, 1/2" O-Ring
INLET FROM EVAPORATOR #10, 5/8" O-Ring
OUTLET TO COMPRESSOR #12, 3/4" O-Ring
TONAGE 2

Compatible With

View compatible models and fitment notes (49 models)
John Deere Sprayer 4630 , 4700 , 4710 , 4720 , 4730 , 4830 , 4920 , 4930 , 4940 , 5430I , F4365 , R4023 , R4030 , R4038 , R4040I , R4044 , R4045 , R4050I , R4060 , R4150I
John Deere Tractor 9420RX , 9420T , 9430 , 9430T , 9460R , 9460RT , 9470R , 9470RT , 9470RX , 9510R , 9510RT , 9520 , 9520R , 9520RT , 9520RX , 9520T , 9530 , 9530T , 9560R , 9560RT , 9570R , 9570RT , 9570RX , 9620 , 9620R , 9620RX , 9620T , 9630 , 9630T
All Serial Numbers
