• HD Denso Clutch - 124.5mm, 8 Grooves, 12V - 600-3025HD
1 1

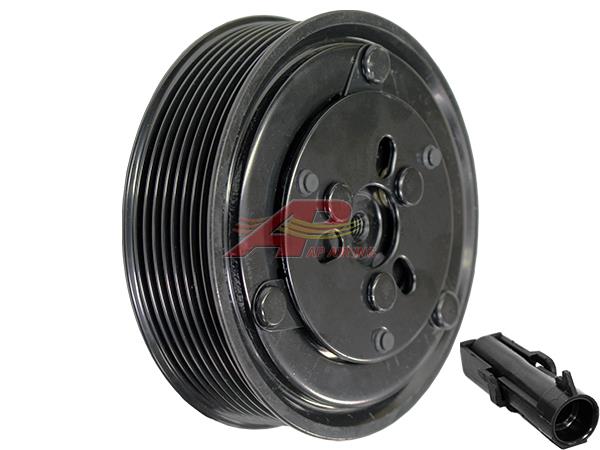

HD Denso Clutch - 124.5mm, 8 Grooves, 12V

HD Denso Clutch - 124.5mm, 8 Grooves, 12V

$127.57
$127.57
Sale Sold out
Shipping calculated at checkout.
View full details

Product information & specifications

OEM Part Numbers
John DeereAL78494
Item Information
Can use Standard Duty Clutch with Rubber Hub - 600-3025
Specifications
COMPRESSOR TYPE 10PA15C
CLUTCH DIAMETER 124.5mm, 4.901"
DIMENSION B 17.50mm, .690"
GAUGE LINE (C) N/A
COIL VOLTAGE 12
NUMBER OF GROOVES 8
GROOVE WIDTH Serpentine
COIL NUMBER 610-306
BEARING NUMBER 440-948
HUB NUMBER 610-352

Compatible With

View compatible models and fitment notes (129 models)
John Deere Combine 2054 , 2056
John Deere Forage Harvester 6650 , 6750 , 6950
John Deere Sprayer 5430I
John Deere Tractor 5070M Euro , 5080M Euro , 5080R Euro , 5090M Euro , 5090R Euro , 5100R Euro , 5620 Euro , 5720 Euro , 5820 Euro , 6010 Euro , 6095B Euro , 6100 Euro , 6110 , 6110 Euro , 6110B , 6120 , 6120 Euro , 6130 Euro , 6135B Euro , 6140J , 6145J , 6155J , 6200 , 6200 Euro , 6200L , 6210 , 6210 Euro , 6215 , 6220 , 6220 Euro , 6230 , 6230 Euro , 6300 , 6300 Euro , 6300L , 6310 , 6310 Euro , 6310S , 6320 , 6320 Euro , 6320L , 6330 , 6330 Euro , 6400 , 6400 Euro , 6400L , 6405 , 6410 , 6410 Euro , 6410S , 6415 , 6420 , 6420 Euro , 6420L , 6420S Euro , 6430 , 6430 Euro , 6500 , 6500L , 6506 Euro , 6510 , 6510 Euro , 6510S , 6520 Euro , 6520L , 6530 Euro , 6534 Euro , 6600 Euro , 6605 , 6610 Euro , 6615 , 6620 Euro , 6630 Euro , 6715 , 6800 Euro , 6810 Euro , 6820 Euro , 6830 Euro , 6900 Euro , 6910 Euro , 6910S Euro , 6920 Euro , 6920S Euro , 6930 Euro , 7130 , 7130 PREMIUM , 7220 , 7230 , 7230 PREMIUM , 7320 , 7330 , 7330 PREMIUM , 7405 , 7420 , 7425 , 7430 , 7430 Euro , 7500 , 7505 , 7515 , 7525 , 7530 , 7530 Euro , 7530 PREMIUM , SE6010 Euro , SE6020 Euro , SE6100 Euro , SE6110 Euro , SE6120 Euro , SE6200 Euro , SE6210 Euro , SE6220 Euro , SE6300 Euro , SE6310 Euro , SE6320 Euro , SE6400 Euro , SE6410 Euro , SE6420 Euro , SE6510 Euro , SE6520 Euro , SE6610 Euro , SE6620 Euro , SE6920 Euro
All Serial Numbers
