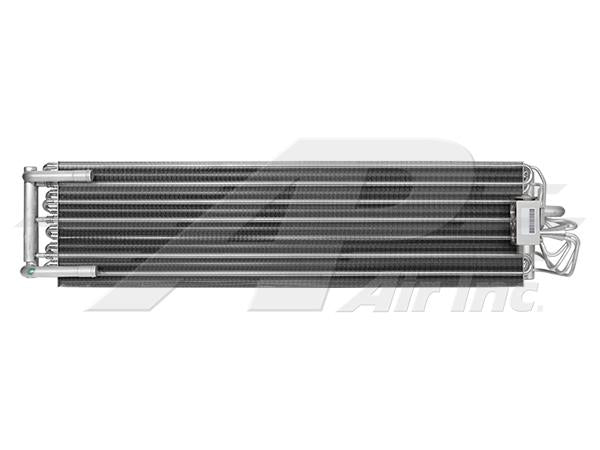

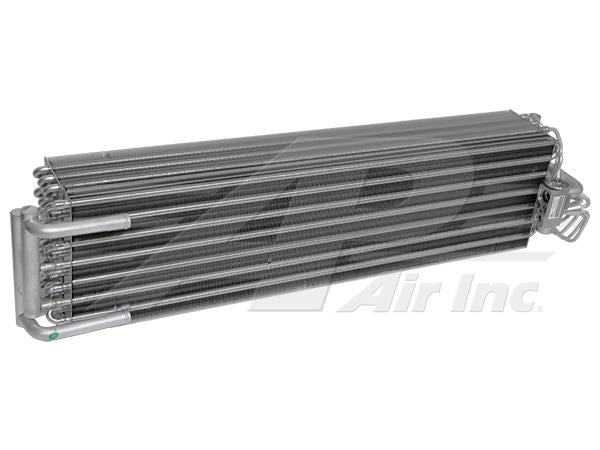

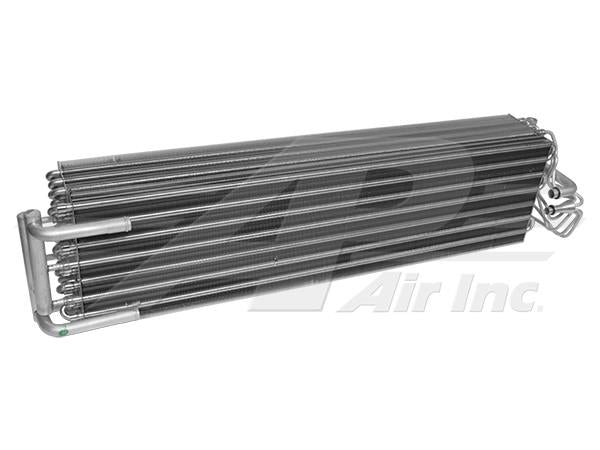

Evaporator with Heater Core

Evaporator with Heater Core

$476.71
$476.71
Sale Sold out
Shipping calculated at checkout.
View full details

Product information & specifications

OEM Part Numbers
John Deere
AL203684
Specifications
VALVE TYPE Block
FITTING TYPE O-Ring
CORE LENGTH 26 3/4"
CORE HEIGHT 7"
CORE THICKNESS 4"
OVERALL LENGTH 31"
OVERALL HEIGHT 7"
OVERALL WIDTH 5 3/4"
FITTING INLET #8
FITTING OUTLET #10
INLET Heater Core 5/8"
OUTLET Heater Core 5/8"

Compatible With

View compatible models and fitment notes (43 models)
John Deere Tractor 6105R , 6110R , 6110R Euro , 6115R , 6120R , 6120R Euro , 6125R , 6130R , 6130R Euro , 6135R Euro , 6140R , 6145 Euro , 6145R , 6150R , 6150RH , 6155R , 6155R Euro , 6155RH , 6170R , 6170R Euro , 6175R , 6190R , 6190R Euro , 6195R , 6195R Euro , 6210R , 6210R Euro , 6215R , 6215R Euro , 6230R , 6230R Euro , 6250R , 6250R Euro , 6R 110 , 6R 120 , 6R 145 , 6R 155 , 6R 165 , 6R 175 , 6R 195 , 6R 215 , 6R 230 , 6R 250
All Serial Numbers
