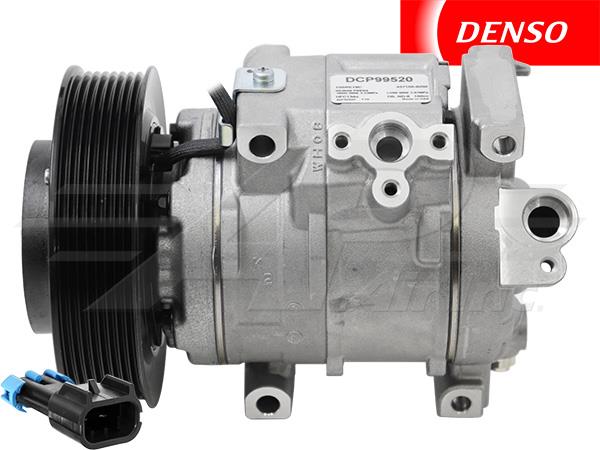

OE Denso Compressor 10SRE18C - 144mm, 8 Groove Clutch, 12V

OE Denso Compressor 10SRE18C - 144mm, 8 Groove Clutch, 12V

$543.86
$543.86
Sale Sold out
Shipping calculated at checkout.
View full details

Product information & specifications

OEM Part Numbers
John DeereAL232177, RE326025, RE326205, SE502745
Item Information
Warranty Recommendation - Condenser Replacement Is Required On Applications With Parallel Flow Style Condenser. Refer to Model For Required Condenser.
Specifications
COMPRESSOR TYPE 10SRE18C
OIL TYPE R134 Pag 46
CLUTCH DIAMETER 5.635"
VOLTAGE 12
GROOVES 8
BELT WIDTH Serpentine
GAUGE LINE 2.56"C, 65.05mm C

Compatible With

View compatible models and fitment notes (74 models)
John Deere Tractor 7200R , 7210R , 7215R , 7230R , 7250R , 7260R , 7270R , 7280R , 7290R , 7310R , 7R 210 , 7R 230 , 7R 250 , 7R 270 , 7R 290 , 7R 310 , 7R 330 , 7R 350 , 8R 230 , 8R 250 , 8R 280 , 8R 310 , 8R 340 , 8R 370 , 8R 410 , 8RT 310 , 8RT 340 , 8RT 370 , 8RT 410 , 8RX 310 , 8RX 340 , 8RX 370 , 8RX 410 , 9360R , 9370R , 9410R , 9420R , 9420RX , 9460R , 9460RT , 9470R , 9470RT , 9470RX , 9510R , 9510RT , 9520R , 9520RT , 9520RX , 9560R , 9560RT , 9570R , 9570RT , 9570RX , 9620R , 9620RX , 9R 390 , 9R 440 , 9R 490 , 9R 540 , 9R 590 , 9R 640 , 9RT 470 , 9RT 490 , 9RT 520 , 9RT 540 , 9RT 570 , 9RT 590 , 9RX 490 , 9RX 540 , 9RX 590 , 9RX 640 , 9RX 710 , 9RX 770 , 9RX 830
Warranty Recommendation
