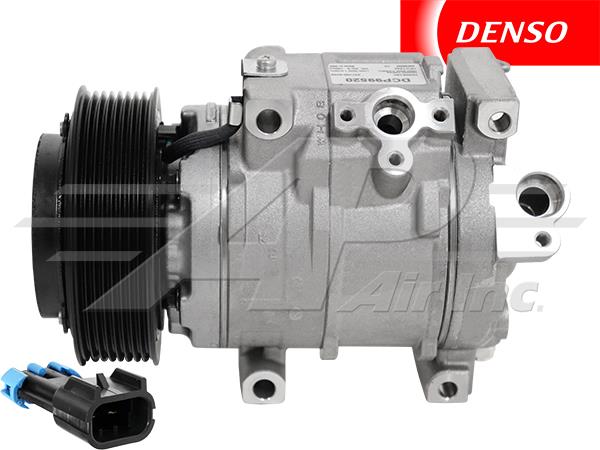

OE Denso Compressor 10SRE18C - 125.5mm, 8 Groove Clutch, 12V

OE Denso Compressor 10SRE18C - 125.5mm, 8 Groove Clutch, 12V

$543.86
$543.86
Sale Sold out
Shipping calculated at checkout.
View full details

Product information & specifications

OEM Part Numbers
John DeereAL232176, RE284680, SE502697
Item Information
Can Use Alternative Compressor - 503-1663 Warranty Recommendation - Condenser Replacement Is Required On Applications With Parallel Flow Style Condenser. Refer to Model For Required Condenser.
Specifications
COMPRESSOR TYPE 10SRE18C
HEAD TYPE Direct Mount
OIL TYPE R134 Pag 46
CLUTCH DIAMETER 125.5mm, 4.941"
VOLTAGE 12
GROOVES 8
BELT WIDTH Serpentine
COIL POSITION N/A
GAUGE LINE 64mm, 2.52"C

Compatible With

View compatible models and fitment notes (142 models)
John Deere Forage Harvester 9500 , 9600 , 9700 , 9800
John Deere Sprayer 400R , 408R , 410R , 412R , 600R , 612R , 616R , 800R , F4365 , R4023 , R4030 , R4038 , R4040I , R4044 , R4045 , R4050I , R4060 , R4140I , R4150I
John Deere Swather W235 , W260
Serial Number 420001 and Above
John Deere Tractor 5065M , 5075M , 5083EN , 5085E , 5085M , 5085M Euro , 5090M , 5090R , 5093E , 5095MH , 5100E , 5100M , 5100MH , 5100R , 5115M , 5115M Euro , 5115R , 5120M , 5125R , 5130M , 6090RC Euro , 6095MC Euro , 6095RC Euro , 6100MC Euro , 6100RC Euro , 6105D , 6105E , 6105M , 6105M Euro , 6105MC Euro , 6105R , 6105RC Euro , 6110E , 6110M , 6110M Euro , 6110MC Euro , 6110R , 6110R Euro , 6110RC Euro , 6115D , 6115M , 6115M Euro , 6115MC Euro , 6115R , 6115RC Euro , 6120E , 6120M , 6120M Euro , 6120R , 6120R Euro , 6125E , 6125M , 6125M Euro , 6125R , 6130D , 6130M , 6130M Euro , 6130R , 6130R Euro , 6135E , 6135R Euro , 6140D , 6140M , 6140M Euro , 6140R , 6145 Euro , 6145M , 6145R , 6150M , 6150M Euro , 6150R , 6150RH , 6155M , 6155M Euro , 6155R , 6155R Euro , 6155RH , 6170M , 6170M Euro , 6170R , 6170R Euro , 6175M , 6175M Euro , 6175R , 6190R , 6190R Euro , 6195M , 6195M Euro , 6195R , 6195R Euro , 6210R , 6210R Euro , 6215R , 6215R Euro , 6230R , 6230R Euro , 6250R , 6250R Euro , 6R 110 , 6R 120 , 6R 130 , 6R 140 , 6R 145 , 6R 155 , 6R 165 , 6R 175 , 6R 195 , 6R 215 , 6R 230 , 6R 250
All Serial Numbers
John Deere Tractor 5083E , 5101E
Serial Number 340001 and Above
John Deere Tractor 5090E
PIN 1LV5090EJK100001 and Above
John Deere Tractor 5093EN , 5101EN
Serial Number 370001 and Above
John Deere Tractor 5095M , 5105M
Serial Number 347000 and Above
