• New Original Denso Body 10PA17C Compressor With Single Groove Clutch - 503-135
1 1

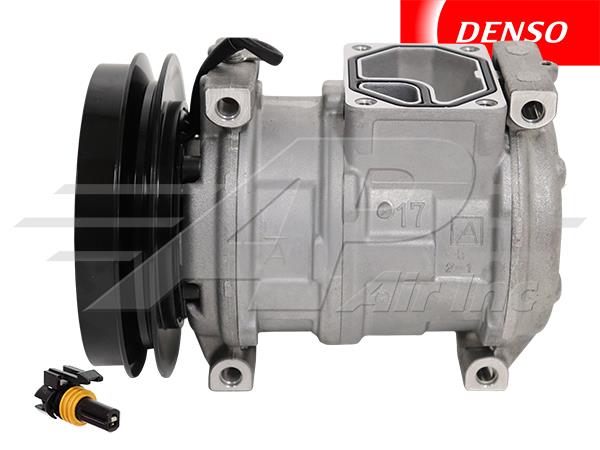

New Original Denso Body 10PA17C Compressor With Single Groove Clutch

New Original Denso Body 10PA17C Compressor With Single Groove Clutch

$530.43
$530.43
Sale Sold out
Shipping calculated at checkout.
View full details

Product information & specifications

OEM Part Numbers
John Deere447100-2179, 447100-2181, RE46657, SE501463, TY6765
Item Information
Must Use Original Manifold Can Use Alternative Compressor 503-1353
Specifications
COMPRESSOR TYPE 10PA17C
HEAD TYPE N/A
OIL TYPE ND8 Pag Oil
CLUTCH DIAMETER 5.748", 146mm
VOLTAGE 12
GROOVES 1
BELT WIDTH 1/2"
OIL QUANTITY 230cc, 7.77oz.
GAUGE LINE 36 mm, 1.41"

Compatible With

View compatible models and fitment notes (9 models)
John Deere Combine 9400
Serial Number 650101 and Above Must Identify Clutch Dust Cover, Dust Cover to Center of Belt Groove - 1.40"
John Deere Combine 9500
Serial Number 650201 and Above, Must Identify Clutch Dust Cover, Dust Cover to Center of Belt Groove - 1.40"
John Deere Combine 9500SH
Serial Number 650201 and Above Must Identify Clutch Dust Cover, Dust Cover to Center of Belt Groove - 1.40"
John Deere Combine 9600
Serial Number 650301 and Above Must Identify Clutch Dust Cover, Dust Cover to Center of Belt Groove - 1.40"
John Deere Sprayer 6100
Must Identify Clutch Dust Cover, Dust Cover to Center of Belt Groove - 1.40"
John Deere Tractor 8570 , 8770 , 8870 , 8970
SE501463, RE46657, TY6765, 447100-2179, 447100-2181
