• OE Denso Compressor 10PA17C - 146mm, 1 Groove Clutch, 12V - 503-130
1 1

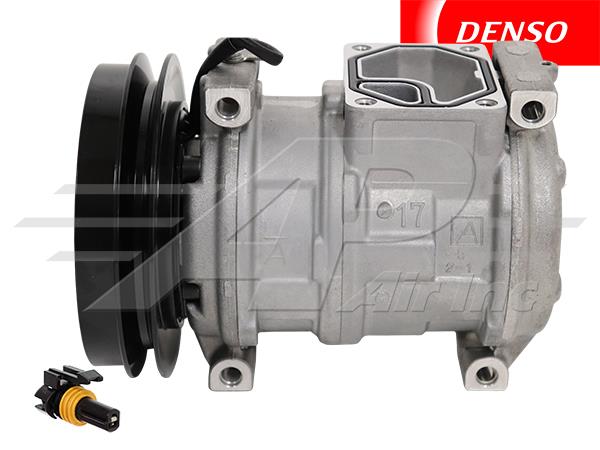

OE Denso Compressor 10PA17C - 146mm, 1 Groove Clutch, 12V

OE Denso Compressor 10PA17C - 146mm, 1 Groove Clutch, 12V

$530.43
$530.43
Sale Sold out
Shipping calculated at checkout.
View full details

Product information & specifications

OEM Part Numbers
John Deere447100-3831, 447200-3081, 447200-3350, RE52454, RE55422, TY6784
Item Information
Must Use Original Manifold Can Use Alternative Compressor - 503-1303
Specifications
COMPRESSOR TYPE 10PA17C
HEAD TYPE N/A
OIL TYPE ND8 Pag Oil
CLUTCH DIAMETER 5.748", 146mm
VOLTAGE 12
GROOVES 1
BELT WIDTH 1/2"
OIL QUANTITY 230cc, 7.77oz.
GAUGE LINE 36 mm, 1.41"

Compatible With

View compatible models and fitment notes (20 models)
John Deere Combine 9640 , 9660 , 9680
Must Identify Clutch Dust Cover, Dust Cover to Center of Belt Groove - .930" Late Serial Number
John Deere Sprayer 6000 , 6100 , 6600 , 6700
Must Identify Clutch Dust Cover, Dust Cover to Center of Belt Groove - .930" Late Serial Number
John Deere Sprayer 6500
Serial Number 002001 and Above, Must Identify Clutch Dust Cover, Dust Cover to Center of Belt Groove - .930"
John Deere Swather 3430 , 3830
Serial Number 985001 and Above Must Identify Clutch Dust Cover Dust Cover to Center of Belt Groove - .930" Late Style Direct Mount Compressor
John Deere Tractor 4555 , 4755 , 4760 , 4960 , 8570 , 8770 , 8870 , 8970
RE55422, TY6784, 447100-3831, 447200-3081, 447200-3350
John Deere Tractor 4560
Serial Number 003583 and Above — RE55422, TY6784, 447100-3831, 447200-3081, 447200-3350
John Deere Tractor 4955
Serial Number 010371 and Above — RE55422, TY6784, 447100-3831, 447200-3081, 447200-3350
