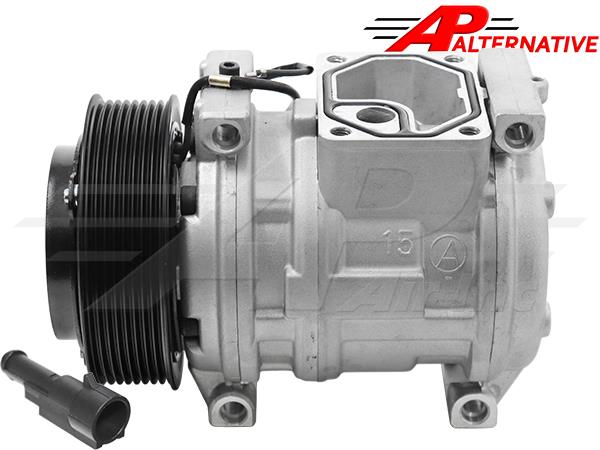

Alternative Denso Compressor 10PA15C - 124.5mm, 8 Groove Clutch, 12V

Alternative Denso Compressor 10PA15C - 124.5mm, 8 Groove Clutch, 12V

$349.14
$349.14
Sale Sold out
Shipping calculated at checkout.
View full details

Product information & specifications

OEM Part Numbers
John DeereAL153386, AL154203, AL155836, AL174136, AL174137, AL176857, AL78493, AL78779, TY6769
Item Information
Must Use Original Manifold Can Use Original Denso 503-120
Specifications
COMPRESSOR TYPE 10PA15C
HEAD TYPE N/A
OIL TYPE Pag 46
CLUTCH DIAMETER 4.901", 124.5mm
VOLTAGE 12
GROOVES 8
BELT WIDTH Serpentine
OIL QUANTITY 5.4 oz.
GAUGE LINE 38.40mm, 1.52" C, 52.5mm, 2.08" F

Compatible With

View compatible models and fitment notes (88 models)
John Deere Tractor 6010 Euro , 6100 Euro , 6110 , 6110 Euro , 6120 , 6120 Euro , 6140J , 6145J , 6155J , 6200 , 6200 Euro , 6200L , 6210 , 6210 Euro , 6215 , 6220 , 6220 Euro , 6300 , 6300 Euro , 6300L , 6310 , 6310 Euro , 6310S , 6320 , 6320 Euro , 6320L , 6400 , 6400 Euro , 6400L , 6405 , 6410 , 6410 Euro , 6410S , 6415 , 6420 , 6420 Euro , 6420L , 6420S Euro , 6500 , 6500L , 6506 Euro , 6510 , 6510 Euro , 6510S , 6520 Euro , 6520L , 6600 Euro , 6605 , 6610 Euro , 6615 , 6620 Euro , 6715 , 6800 Euro , 6810 Euro , 6820 Euro , 6900 Euro , 6910 Euro , 6910S Euro , 6920 Euro , 6920S Euro , 7220 , 7320 , 7405 , 7420 , 7425 , 7500 , 7505 , 7515 , 7525 , SE6010 Euro , SE6020 Euro , SE6100 Euro , SE6110 Euro , SE6120 Euro , SE6200 Euro , SE6210 Euro , SE6220 Euro , SE6300 Euro , SE6310 Euro , SE6320 Euro , SE6400 Euro , SE6410 Euro , SE6420 Euro , SE6510 Euro , SE6520 Euro , SE6610 Euro , SE6620 Euro , SE6920 Euro
All Serial Numbers
