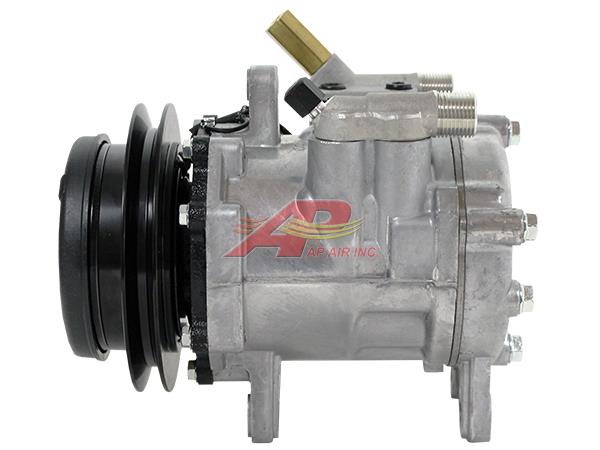

• HD Sanden Style Denso - 146mm, 1 Groove Clutch, 12V - With Manifold Kit - 503-1172
1 1

HD Sanden Style Denso - Groove Clutch V - With Manifold Kit

HD Sanden Style Denso - Groove Clutch V - With Manifold Kit

$396.14
$396.14
Sale Sold out
Shipping calculated at checkout.
View full details

Product information & specifications

Item Information
Includes Compressor and High & Low Side Manifolds
Sanden Style Version of Original 6E171 Denso
Specifications
COMPRESSOR TYPE 7H15
OIL TYPE Assembly Oil
CLUTCH DIAMETER 146mm, 5.76"
VOLTAGE 12
GROOVES 1
BELT WIDTH .50, 1/2"
COIL POSITION 12 o'clock
OIL QUANTITY 6.5 oz
GAUGE LINE 47.5mm, 1.86"

Compatible With

View compatible models and fitment notes (59 models)
Case Tractor 4994
John Deere Combine 1085 , 1085HY/4 , 1155 , 1157 , 1158 , 1166 , 1166HY/4 , 1169 , 1169HY/4 , 1174 , 1174H , 1177 , 1177H , 1188 , 1188H , 4420 , 4425 , 4435 , 6622 , 7722 , 9400 , 9500 , 9500SH , 9600
John Deere Combine 7720
Serial Number 600001 and Above
John Deere Forage Harvester 5720 , 5820
Serial Number 680001 and Above
John Deere Forage Harvester 5730 , 5830 , 6610 , 6710 , 6810 , 6910
John Deere Sprayer 6000 , 6500
John Deere Swather 3830
John Deere Tractor 3040 , 3140 , 3640S Euro , 4050 , 4055 , 4250 , 4255 , 4450 , 4455 , 4650 , 4755 , 4760 , 4850 , 4955 , 4960 , 8450 , 8560 , 8650 , 8760 , 8850 , 8960
Can use Denso Compressor without Manifold Kit - 503-116 Can use Sanden Style without Manifold Kit - 503-117
John Deere Tractor 4560
Serial Number 003582 and Below Can use Sanden Style without Manifold Kit - 503-117
