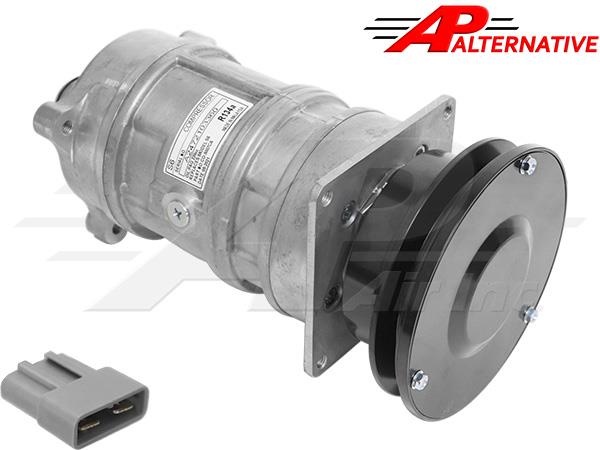

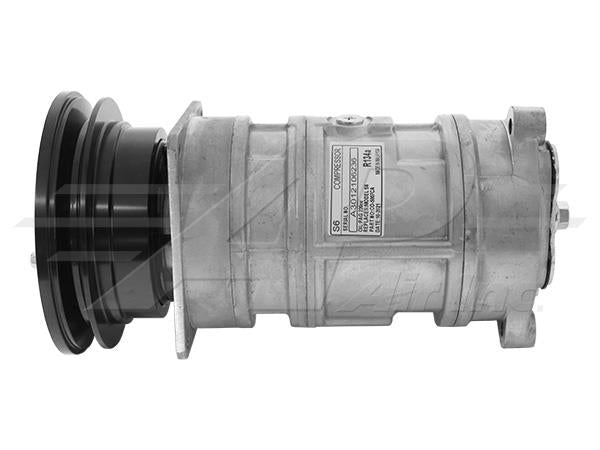

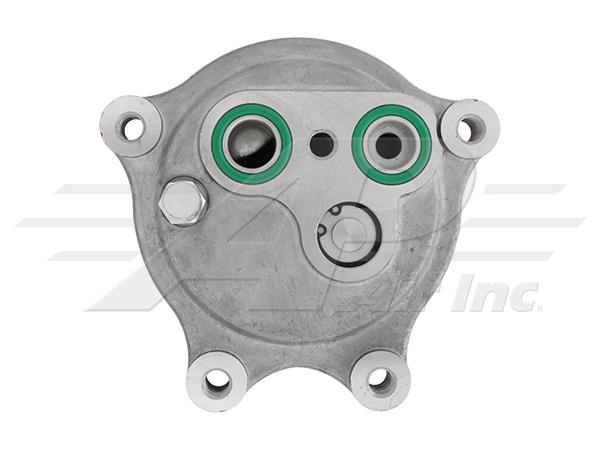

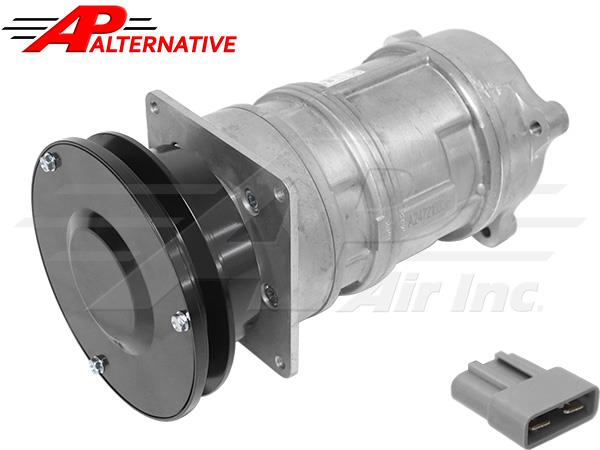

Heavy Duty A6 Compressor

Heavy Duty A6 Compressor

$456.57
$456.57
Sale Sold out
Shipping calculated at checkout.
View full details

Product information & specifications

OEM Part Numbers
John DeereAR77343, AR92109, SE501456, SE501457, TY6665, TY6770
Item Information
Uses Original Belt & Hoses, Can be Used for 10 O'Clock and 2 O'Clock Coil Positions, Includes HD Dust Protection and Metric Bolt Kit
Replaces A6 With 10PA20 HD 10 Cylinder Denso, Uses Less Power for Greater Efficiency Can use Original A6 - 500-013
Can use Reman Compressor - 500-001
Specifications
COMPRESSOR TYPE 10PA20HD
HEAD TYPE Superheat
OIL TYPE Pag 46
CLUTCH DIAMETER 5.58"
VOLTAGE 12
GROOVES 1
BELT WIDTH 1/2"
MOUNTING HOLES Metric Thread
OIL QUANTITY 7.4 oz

Compatible With

View compatible models and fitment notes (99 models)
John Deere Combine 1055 , 1065 , 1072 , 1075 , 1075H , 1075HY/4 , 1085 , 1085H , 1085HY/4 , 3300 , 4400 , 4420 , 484 , 6600 , 6602 , 6622 , 7700 , 7722 , 8820 , 955 , 956 , 965 , 968H , 975 , 975HY/4 , 985 , 985HY/4
John Deere Combine 1068H
European Models, Serial Number 429999 and Below
John Deere Combine 6620 , 7720
Serial Number 600000 & Below
John Deere Forage Harvester 5200 , 5400 , 5440 , 5460
John Deere Forage Harvester 5720
Serial Number 550001 to 680000
John Deere Forage Harvester 5820
Serial Number 550001-680000
John Deere Sprayer 6000
John Deere Swather 2250 , 2270 , 2280 , 2320 , 2420
John Deere Tractor 1640 , 1840 , 2040 , 2040S , 2140 , 2250 Euro , 2350 , 2355 , 2450 Euro , 2550 , 2555 , 2650 Euro , 2750 , 2755 , 2850 Euro , 2855N , 2940 , 2950 , 2955 , 3030 , 3040 , 3050 Euro , 3130 , 3140 , 3150 , 3155 , 3350 Euro , 3640 Euro , 3640S Euro , 3650 Euro , 4000 , 4020 , 4030 , 4040 , 4040 Euro , 4040S , 4230 , 4240 , 4240 Euro , 4240S , 4320 , 4350 , 4430 , 4440 , 4440 Euro , 4520 , 4620 , 4630 , 4640 , 4840 , 5020 , 6030 , 7020 , 8430 4WD , 8440 , 8630 , 8640
All Serial Numbers
