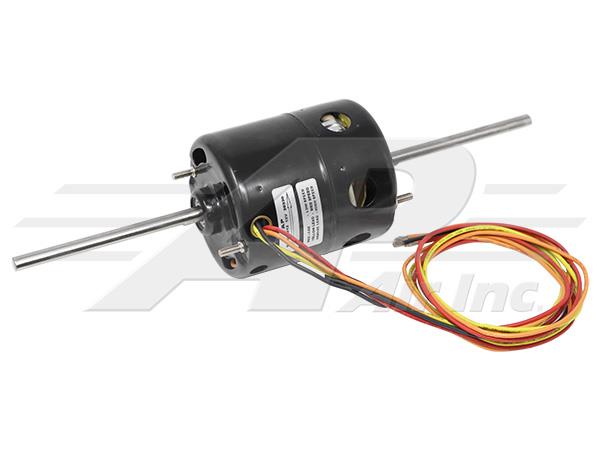

Heavy Duty Blower Motor LATE serial number
Heavy Duty Blower Motor LATE serial number
Regular price
$102.06
Regular price
Sale price
$102.06
Unit price
per
Couldn't load pickup availability
OEM part numbers
8721573, 700710548, 7025851
8721573, 700710548, 7025851
Item Information
Replaces Bushing Style Motor with New HD Bearing Style Motor
With 48" Wire Leads
Wire Identification:
Orange = High Speed, Yellow = Medium Speed, Red = Low Speed, Black = Ground
With 48" Wire Leads
Wire Identification:
Orange = High Speed, Yellow = Medium Speed, Red = Low Speed, Black = Ground
Additional Information
Serial Number CFH0028001 thru CFH0028509, Serial Number CFH0028510 and Above
Serial Number CFH0028001 thru CFH0028509, Serial Number CFH0028510 and Above
Specifications
| TYPE | Double Shaft, 3 Speed |
| SHAFT SIZE | 3/8" |
| SHAFT LENGTH | 4 1/4" |
| MOTOR DIAMETER | 3 1/2" |
| MOTOR LENGTH | 4 1/8" |
| OVERALL LENGTH | 13 1/2" |
| ROTATION | Reversible |
| NUMBER OF WIRES | 4 |
| VOLTAGE | 12 |
| STUD SPAN | 2 7/8" |
Compatible With
International Swathers8830
