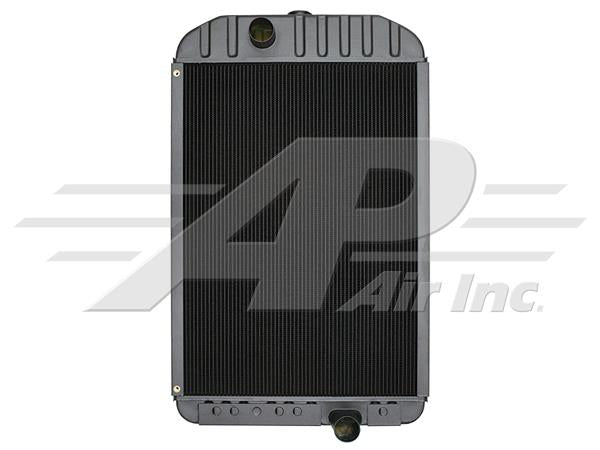

Radiator with 5 3/8" Side Channel Depth

Radiator with 5 3/8" Side Channel Depth

$1,873.29
$1,873.29
Sale Sold out
Shipping calculated at checkout.
View full details

Product information & specifications

OEM Part Numbers
John DeereAH144719, AH169363
Item Information
Fits 9400, 9410, 9500, 9500SH, 9510, 9510SH, 9550, 9600, 9610, 9650CTS John Deere Combines
Side Channel Depth is 5 3/8"
For Radiator with Side Channel Depth of 4 7/8" Order AR5613
For Radiator Cap Order 21-29
Specifications
CORE HEIGHT 33 3/4"
CORE WIDTH 24 3/4"
CORE THICKNESS 4"
OVERALL HEIGHT 42" - Does Not Include Filler Neck
OVERALL WIDTH 26"
SIDE CHANNEL DEPTH 5 1/2"
OUTLET HOSE SIZE 2 1/2"
INLET HOSE SIZE 2 1/2"
FILLER NECK HEIGHT 3/4"
FINS PER INCH 5
NUMBER OF ROWS 4 Inline

Compatible With

View compatible models and fitment notes (10 models)
John Deere Combine 9500 , 9500SH
Serial Number 640201 and Above Heavy Duty Cooling
John Deere Combine 9510 , 9510SH
Heavy Duty Cooling Late Serial Number
John Deere Combine 9550 , 9550SH
Serial Number 700200 and Below, SideHill Serial Number 700700 and Below, Heavy Duty Cooling
John Deere Combine 9600
Serial Number 640301 and Above With Hi and Lo Power Engines
John Deere Combine 9610
John Deere Combine 9650
Serial Number 695300 and Below, CTS Serial Number 695400 and Below
John Deere Combine 9650CTS
Serial Number 695400 and Below
