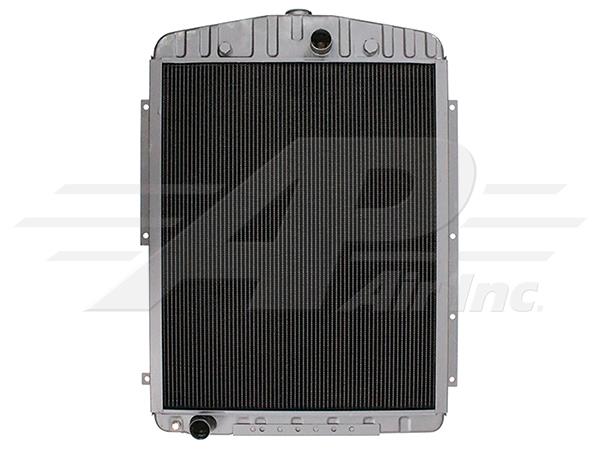

AH124727 - Radiator - John Deere

AH124727 - Radiator - John Deere

$1,671.86
$1,671.86
Sale Sold out
Shipping calculated at checkout.
View full details

Product information & specifications

OEM Part Numbers
John DeereAH120373, AH124727, AH124728, AH87823, AH98155
Item Information
Fits 3830, 7700, 7720, 7722, 8820 John Deere Combines
Must Order Radiator Cap 21-4 or 21-40
Specifications
CORE HEIGHT 32 1/2"
CORE WIDTH 27"
OVERALL HEIGHT 39 3/4" - Does Not Include Filler Neck
OVERALL WIDTH 31 1/4"
OUTLET HOSE SIZE 2"
INLET HOSE SIZE 2"
FILLER NECK HEIGHT 3/4"
FINS PER INCH 4
NUMBER OF ROWS 4

Compatible With

View compatible models and fitment notes (7 models)
John Deere Combine 6620
Must Check Upper Hose Connection and Side Bracket Location, Side Brackets are Opposite of Fitting Side
John Deere Combine 6622 , 7722 , 8820
Must Check Upper Hose Connection and Side Bracket Location, Side Brackets are Opposite of the Hose Connection Side
John Deere Combine 7700
Serial Number 163901 and Above
John Deere Combine 7720
Posi-Torque and Hydro, Must Check Upper Hose Connection and Side Bracket Location, Side Brackets are Opposite of Fitting Side
John Deere Swather 3830
