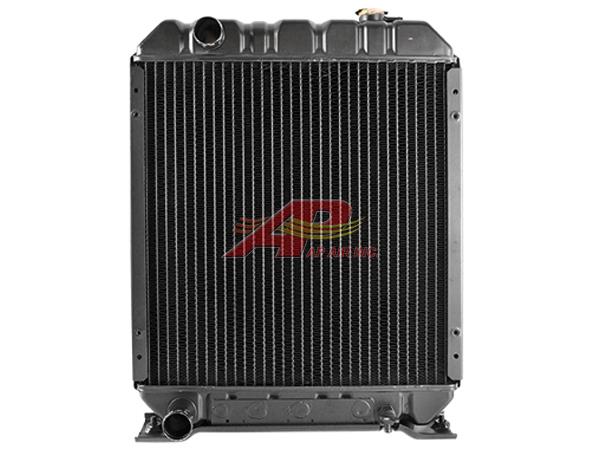

Row High Efficiency Radiator - With Draincock
Row High Efficiency Radiator - With Draincock
Regular price
$725.14
Regular price
Sale price
$725.14
Unit price
per
Couldn't load pickup availability
OEM part numbers
86519895, 86402368
86519895, 86402368
Item Information
Fits 1530, 1630, 1725, 1925, TC25, TC25D, TC29, TC29D, TC33, TC33D Ford/NH Tractors
Can Use AR2124 - Which Has Bracket to Accept Shield Screen and Remote Drain
Additional Information
Can Use AR2124 - 4 Row Radiator Which Has Bracket to Accept Shield Screen and Remote Drain
Can Use AR2124 - 4 Row Radiator Which Has Bracket to Accept Shield Screen and Remote Drain
Specifications
| CORE HEIGHT | 15 3/4" |
| CORE WIDTH | 15 1/2" |
| OVERALL HEIGHT | 20 1/4" - Does Not Include Filler Neck |
| OVERALL WIDTH | 16 1/8" |
| OUTLET HOSE SIZE | 1 1/4" |
| INLET HOSE SIZE | 1 1/4" |
| FILLER NECK HEIGHT | 3/4" |
| FINS PER INCH | 10 |
| NUMBER OF ROWS | 3 |
| ADDITIONAL INFO | With Bracket for Shield Screen and With Draincock on Radaitor |
Compatible With
Case TractorsD25, D29, DX29, DX33
Case TractorsD25, D29, DX29, DX33
