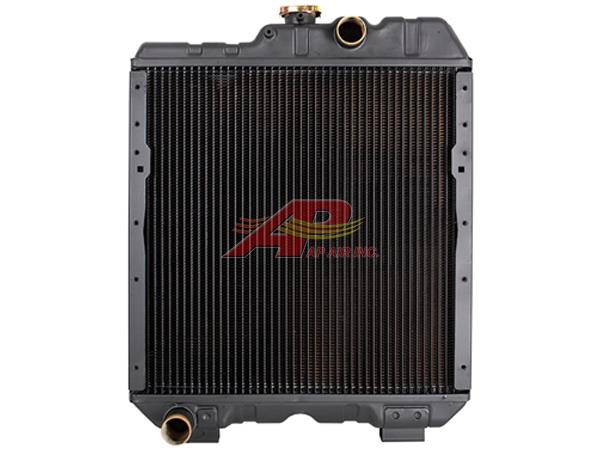

S5172926 - Case/NH Radiator
S5172926 - Case/NH Radiator
Regular price
$664.71
Regular price
Sale price
$664.71
Unit price
per
Couldn't load pickup availability
OEM part numbers
5172925, S5172925, 5172926, S5172926
5172925, S5172925, 5172926, S5172926
Item Information
Fits JX75, JX85, JX95, JX1060C, JX1070C, JX1070N, JX1075C, JX1075N, JX1095N Case/IH Tractors And
Also Fits TN60VA, TN65V, TN70VA, TN75F, TN75VA, TN75V SPECIAL, TN80F, TN85FA, TN90, TN90F, TN95F, TN95FA, TN95VA Ford/NH Tractors Will Not Fit TN60DA, TN60SA, TN70DA, TN70SA, TN75DA, TN75SA Ford/NH Tractors That Use Radiator Mounted Slide Channels OE# 47128036 and 47128035 to Mount Condenser
Also Fits TN60VA, TN65V, TN70VA, TN75F, TN75VA, TN75V SPECIAL, TN80F, TN85FA, TN90, TN90F, TN95F, TN95FA, TN95VA Ford/NH Tractors Will Not Fit TN60DA, TN60SA, TN70DA, TN70SA, TN75DA, TN75SA Ford/NH Tractors That Use Radiator Mounted Slide Channels OE# 47128036 and 47128035 to Mount Condenser
Specifications
| CORE HEIGHT | 17 1/2" |
| CORE WIDTH | 17 1/2" |
| CORE THICKNESS | 2 3/8" |
| OVERALL HEIGHT | 23 1/2" - Does not include Filler Neck |
| OVERALL WIDTH | 18 3/8" |
| OUTLET HOSE SIZE | 1 1/2" |
| INLET HOSE SIZE | 1 1/2" |
| FILLER NECK HEIGHT | 3/4" |
| FINS PER INCH | 7 |
| NUMBER OF ROWS | 4 |
Compatible With
New Holland TractorTN60VA, TN65V, TN70NA, TN70S, TN70VA, TN75F, TN75V, TN75VA, TN80F, TN85FA, TN90F, TN95F, TN95FA, TN95NA, TN95VA
New Holland TractorTN60VA, TN65V, TN70NA, TN70S, TN70VA, TN75F, TN75V, TN75VA, TN80F, TN85FA, TN90F, TN95F, TN95FA, TN95NA, TN95VA
