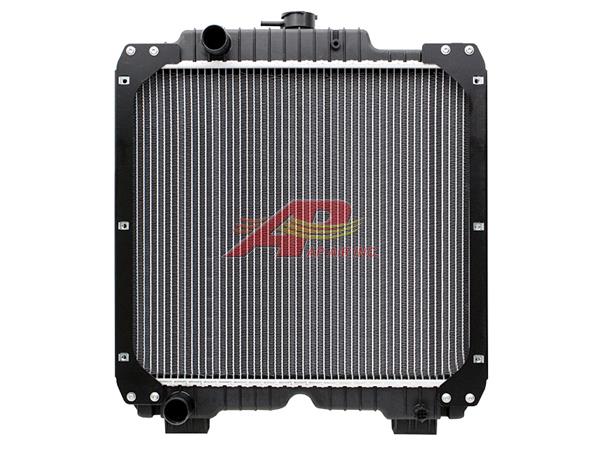

84172100 - Case/NH Radiator

84172100 - Case/NH Radiator

$772.14
$772.14
Sale Sold out
Shipping calculated at checkout.
View full details

Product information & specifications

OEM Part Numbers
Case IH5096595, 5099122, 84172100New Holland5096063, 5096595, 5099122, 84172100
Item Information
Radiator Cap Included Fits JX55, JX60, JX65, JX70, JX75, JX80, JX85, JX90, JX95 Case/IH Tractors And
Also Fits TD60D, TD70D, TD80D, TD80D PLUS, TD90D, TD95D Ford/New Holland Tractors
Specifications
CORE HEIGHT 18"
CORE WIDTH 21 3/8"
CORE THICKNESS 2 3/8"
OVERALL HEIGHT 24"
OVERALL WIDTH 21 7/8"
OUTLET HOSE SIZE 1 1/2"
INLET HOSE SIZE 1 1/2"
FILLER NECK HEIGHT 1 5/8 ID x 3/4 Deep
FINS PER INCH 10 Serpentine
NUMBER OF ROWS 2
OIL COOLER No
RADIATOR TYPE Plastic Tank/Aluminum Radiator

Compatible With

View compatible models and fitment notes (15 models)
Case Tractor JX55 , JX65 , JX75 , JX85
Case Tractor JX60 , JX70 , JX80 , JX90
Reference Number C5834 and D5834 Early Serial Number
Case Tractor JX95
Reference Number D6295 and Above Early Serial Number
New Holland Tractor TD60D , TD70D , TD80D , TD90D
Reference Number C5834 and D5834 Early Serial Number
New Holland Tractor TD75D
Reference Number C6295 and Below Early Serial Number
New Holland Tractor TD95D
